1999–2003 John Deere 260 & 270 Skid Steer Technical Manual (P/N TM1780)

The November 2003 edition of John Deere TM1780 covers the 1999–2003 260 and 270 skid steer loaders, including Series II electrical, hydraulic, and hydrostatic configurations.

• Engine and fuel: Engine removal and installation, fuel-supply pressure testing, throttle cable adjustment, dynamic injection-pump timing, and model-specific belt checks.

• Electrical diagnosis: Starting, charging, and preheat tests; connector pinouts; and boom/bucket lockout and Series II park brake troubleshooting.

• Hydrostatic powertrain: Tandem piston-pump overhaul, Eaton and Poclain motor repair, pressure and case-drain tests, and startup procedures after component replacement.

• Axles, steering, and brakes: Chain adjustment, axle-housing repair, single- and dual-centering-plate adjustments, and separate Eaton/Carlisle and Poclain brake procedures.

• Hydraulics: Husco and Sauer-Danfoss control-valve repair, standard and high-flow pumps, cylinder repair, drift testing, and bucket self-leveling adjustment.

• Boom and cab: Boom-link and QUIK-TATCH service, cab heater repairs, and R134a air-conditioning diagnosis, evacuation, and charging.

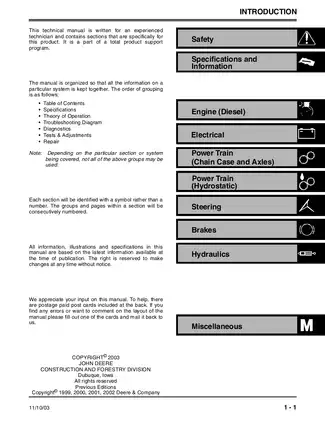

This manual is written for experienced technicians and assumes familiarity with workshop test equipment and heavy-component handling.

Engine, Fuel System, and Cooling Service

The 3029T and 4045D engine sections cover removal, installation, and external service. Internal engine repair requires separate manuals: CTM125 for the 260, and CTM104/CTM207 for the 270. These publications are not included.

Injection-pump timing uses the JT07158 TIME TRAC tester and JDE81-4 timing pin. The manual warns that adjusting pump position with the engine running can seize the injection pump. Its fast-idle instructions reserve factory-sealed adjustments for an authorized EPA-certified service center.

The 270 gear-reduction starter section provides a Starting Motor Exploded View, solenoid and brush tests, field-winding checks, commutator-bar testing, and assembly instructions. General starter and alternator repair is referred to the separate CTM77.

Cooling coverage includes radiator removal and inspection, coolant draining and refilling, and fan/alternator belt service. Lubrication references include Torq-Gard Supreme and Hy-Gard, with fuel-tank, hydraulic-reservoir, and chain-case capacities.

Reassembly references include metric and SAE fastener torque tables and O-ring face-seal fitting charts, with values in Nm and lb-ft.

Electrical Fault Tracing

The Power and Cranking Circuit Schematic and Series II Park Brake Circuit Schematic are paired with component-location views, engine and ROPS harness-routing drawings, and connector details for the instrument cluster and safety switches.

Diagnosis tables connect test points with expected results and follow-up checks, helping separate interlock-switch faults from wiring or solenoid problems.

Manifold-preheater testing is covered separately. Wire-number guidance also explains the production change from striped to solid-color wiring, which matters when matching a machine's harness to the diagrams.

Hydrostatic Drive, Axles, and Brakes

Separate repair sections distinguish Eaton single-speed motors from Poclain single- and two-speed motors. Center Manifold Exploded Views identify early assemblies, later assemblies, and machines converted under PIP 00KV010, helping select the correct relief-port layout before testing.

Chain-case work extends to drive-chain and sprocket replacement and axle-bearing service. Steering procedures cover centering, tracking, control-lever stops, and cross-shaft repair; Poclain brake procedures include piston-movement checks and shim selection.

Control Valves, Cylinders, and Boom Service

Husco-equipped machines use separate boom and bucket hydraulic lock solenoids; Sauer-Danfoss valves incorporate the hydraulic lock internally. The Husco Control Valve Cross Section and valve repair illustrations show spool, detent, load-check, and relief-valve arrangements.

Pressure tables and relief-valve tests distinguish the two valve systems, including boom and bucket work-port circuits. Repair notes explain how paint or corrosion on exposed spools can damage internal valve porting during removal. Cylinder procedures distinguish early and later boom assemblies, while drift and load-check tests address unwanted boom or bucket movement.

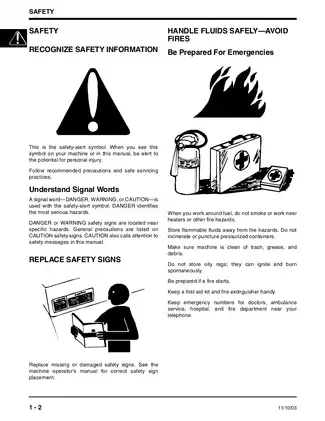

Boom links, ROPS, and mechanical and hydraulic QUIK-TATCH components have dedicated service procedures. Follow the manual's boom-lock, ROPS-support, and hydraulic-pressure-release precautions before service.

Cab Heating and R134a Air Conditioning

The Operating Pressure Diagnostic Chart supports A/C fault diagnosis. The manual also covers refrigerant recovery, leak testing, system flushing, and model-specific compressor and condenser removal.

Heater/evaporator-core and blower service, heater-control-valve replacement, and cab-heater deaeration are included.

Engine and Starter Data Samples

These examples represent a small selection of the manual's engine and component specifications. Compression ratios are 17.8:1 for the 260's 3029T and 17.6:1 for the 270's 4045D.

The timing discussion relates a 1 mm injection-pump flange offset to approximately 2° on the timing-meter display. For the specified 270 gear-reduction starter, minimum worn-brush length is 10 mm (0.40 in.).

PDF Reading and Page Breakdown

Search, navigation, and illustration detail: Normal word search is not usable because of the PDF's character encoding, and no embedded bookmarks are provided. Small wiring and hydraulic labels require zooming; some mechanical illustrations, including the starter exploded view, have faint linework.

One printable 590-page PDF contains 578 pages of manual content, one original title page, and 11 blank pages. The cover and blank pages are already included in the total; the manual content includes an eight-page index.
