2002–2007 Hyundai R290LC-7 Crawler Excavator Service Manual

This Hyundai service manual covers the 2002–2007 R290LC-7 crawler excavator, also identified as the Robex 290LC-7. It combines hydraulic system explanations, electrical and mechatronic diagnostics, maintenance standards, and component repair procedures, with separate sections for serial-number changes and Tier II controls.

• Pump and control valve repair: Main pump and regulator disassembly, valve inspection and assembly, plus separate main control valve sections for different serial ranges.

• Swing and travel drives: Motor and reduction gear removal, internal disassembly, parking brake inspection, bearing adjustment, and reassembly procedures.

• Cylinders and undercarriage: Boom, arm and bucket cylinder repair, turning joint service, roller replacement, and idler and recoil spring disassembly.

• Electrical diagnosis: Wiring diagrams, connector destination tables, pin layouts, component checks, and troubleshooting charts for starting, charging, monitoring, and accessory circuits.

• NEW CAPO controls: Self-diagnosis, EPPR valve current and pressure checks, engine speed control, mode selection, and additional Tier II ECM fault-code information.

• Performance standards: Operational tests, component inspection limits, pin-and-bushing measurements, and mounting torque data for assessing condition before and after repairs.

Written for service technicians performing workshop repairs, this manual calls for hydraulic test equipment, measuring tools, and suitable lifting equipment for the larger assemblies.

Hydraulic Control and Component Repair

The pump explanations cover the rotary group, swash plate assembly, valve block, regulator, and gear pump. Negative flow control, total horsepower regulation, and power shift functions are explained alongside hydraulic circuit diagrams and main control valve section views.

Individual chapters trace boom, arm, bucket, and swing spool operation, including arm regeneration and combined movements. These circuit explanations provide context for the mechanical and hydraulic troubleshooting charts.

Control valve work includes inspection of spools, sealing surfaces, poppets, and relief valves. The manual specifies hydraulic test equipment for checking relief characteristics, leakage, and flow resistance after assembly.

Drive Assemblies, Cylinders and Undercarriage

Travel drive procedures extend to planetary carriers, floating seals, brake components, and bearing shim selection. The earlier motor assembly instructions warn that forcing the brake piston into place can scrape its smaller D-ring against the casing edge.

Travel-device coverage: The structure and function chapters use the #1214/#1215 serial break, while disassembly and assembly use #1621/#1622. These different section labels make matching the installed assembly to the relevant drawings important before choosing repair procedures.

Cylinder chapters cover the gland, piston, rod seals, and cushioning components, with separate versions across the #1621/#1622 break. They specifically identify reversed rod-seal installation as a cause of seal-lip damage.

Undercarriage coverage includes idler rebuilding and recoil spring work. Follow the manual’s precautions for stored spring force, suspended work equipment, and trapped hydraulic pressure.

Electrical Troubleshooting and NEW CAPO Controls

Starting Circuit, Charging Circuit, and Controller Circuit drawings are supported by connector tables and electrical component specifications. Separate wiring sections distinguish the early machines from the Tier II configuration.

For slow actuator operation, the diagnostic charts connect monitor error codes with resistance, current, and EPPR pressure checks. This gives technicians a documented way to distinguish wiring, controller, and valve faults from hydraulic problems before opening a pump.

Tier II material adds ECM communication checks and engine fault-code interpretation. The troubleshooting overview also references Hyundai HRDT and Cummins INSITE.

Engine scope: Cummins C8.3-C specifications, engine controls, fault finding, and mounting data are included; this is not an internal-engine overhaul manual.

The prolix-switch chapter covers temporary emergency operation on machines up to #0062 and warns against using that position during normal CPU operation.

Performance Tests and Inspection Standards

Operational tests cover track revolution speed, travel deviation, swing drift, cylinder cycle times, and loaded attachment drift. Standard values and service limits support comparison before servicing and confirmation after repairs.

Inspection tables address pump wear, valve surfaces, travel drive bearings, and work-equipment pins. Component mounting torque tables, fluid recommendations, cooling-system capacities, and conversion tables supply the supporting reference data.

Pump Flow, Oil Capacity and EPPR Test Examples

Main pump specifications list a rated oil flow of 2 × 260 L/min at 1,900 rpm. The fluid chart distinguishes the 210-liter hydraulic tank from the 380-liter total hydraulic system capacity.

The EPPR-valve resistance check in the slow-actuator troubleshooting chart specifies 17.5 ± 1 Ω at 20°C, with the starting key off. The chart relates this measurement to current and pressure checks for fault isolation.

Searchable Text, Bookmarks and Wiring Detail

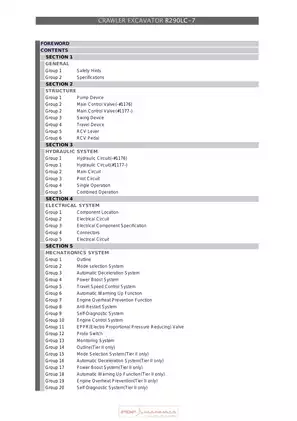

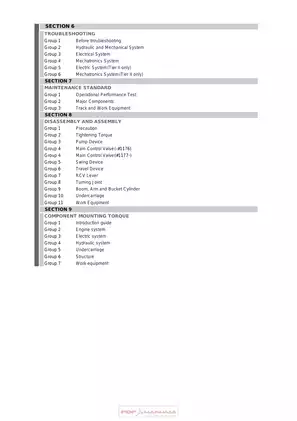

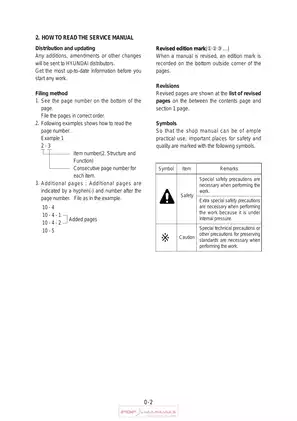

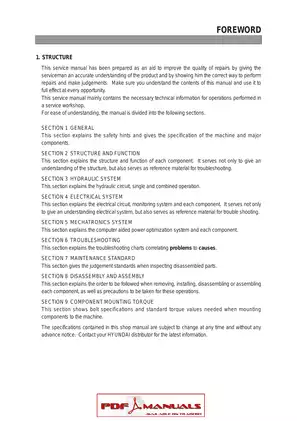

Text navigation and diagram detail: Technical pages have searchable text; the cover does not. Embedded bookmarks cover the main sections, although the Structure and Function bookmark opens in the specifications; the correct section starts on PDF p. 40. Small wiring labels require zooming.

Supplied as a single printable, 651-page PDF in English, comprising 650 manual pages and one additional cover page.
