Komatsu D65E/P-12 & D65EX/PX-12 Bulldozer Shop Manual, 2002 (P/N SEBM001919)

Komatsu publication SEBM001919, August 2002, is the shop manual for the D65E-12, D65P-12, D65EX-12, and D65PX-12 bulldozers. Title-page coverage begins at D65E-12 serial 60948 and up and J10001 and up; the other three models begin at 60001 and up.

PDF Search, Bookmarks, and Diagram Detail

Search and navigation limits: Text search works on part of the PDF; many drawings and repair pages are image-only. Embedded bookmarks cover the main chapters, but some links are inactive or point to the wrong section. Small wiring labels require zooming.

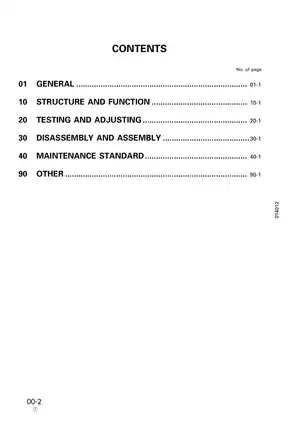

The ZIP contains one 1,222-page printable PDF, including the 24-page trimming-dozer section, 20-page KA-spec section, and one manual-revision request form. Five blank pages are already included in that total.

Engine, Drivetrain, and Hydraulic Shop Work

These highlights are a selection from the manual, not its complete contents. Other topics include radiator and hydraulic-oil-cooler removal and operator-cab door-lock adjustment.

• Engine service: Valve-clearance, compression, blowby, and injection-timing checks, plus engine removal and selected fuel-system, cooling-system, and cylinder-head procedures.

• Power-train repair: Damper and universal joint, torque converter and PTO, TORQFLOW transmission, control and relief valves, final drives, clutch-piston checks, and bearing-preload adjustment.

• Steering and brakes: D65E/P steering-clutch and steering-brake repair, D65EX/PX HSS assembly and motor overhaul, linkage setup, brake-performance checks, and HSS leakage testing.

• Hydraulics and work equipment: Work-equipment and PPC pumps, PPC control, charge and lock valves, main control valves, blade-cylinder overhaul, pressure and leakage tests, and air bleeding.

• Undercarriage repair: Track-frame and recoil-spring removal, idler and roller service, dry and lubricated tracks, master-link and individual-link work, suspension, pivot shafts, equalizer bar, and segment teeth.

• Fault isolation and diagrams: S-mode engine, H-mode hydraulic/mechanical, E-mode electrical, and M-mode machine-monitor troubleshooting, supported by hydraulic circuits, wiring diagrams, and connector references.

Komatsu prepared the book for service-workshop personnel. Its pressure testing, heavy lifts, spring-loaded assemblies, and internal overhaul work assume a trained heavy-equipment technician with properly rated shop equipment.

Serial-Specific Builds and Attachments

Engine and chassis changes: The tables distinguish the naturally aspirated 6D125-1/-2 in standard D65E builds from the turbocharged S6D125-1/-2 in standard D65P, D65EX, and D65PX builds. Early and later groups divide at D65E 60948, D65P 60891, D65EX 60942, and D65PX 60915; further revisions are identified at 65001 and up.

Several chapters retain procedures and comparison data for earlier production groups, including D65E 60001–60947. The title-page D65E coverage still begins at 60948 and J10001, an important distinction when selecting the manual for an early machine.

Blade and control variants: Coverage includes angledozer, straight-tilt, power-pitch, semi-U, wide-gauge semi-U, and ripper configurations. Work-equipment hydraulic revisions are keyed at D65E 61441, D65P 61365, D65EX 61446, and D65PX 61369.

The DDM060-4A trimming-dozer section provides D65EX-specific specifications, hydraulic diagrams, and maintenance standards. The KA-spec section covers differences for D65EX-12 serial 63403 and up and D65PX-12 serial 63304 and up, for use alongside the standard-machine sections.

Engine Procedures and Repair Scope

Step-by-step instructions cover injection-pump, water-pump, turbocharger, nozzle-holder, and cylinder-head removal and installation; front and rear engine-seal replacement; and complete engine removal for cab and canopy machines.

This manual supplies extensive chassis repair coverage plus selected engine and electrical procedures, but it is not a complete internal engine-overhaul volume. Komatsu's volume note states that matching engine, electrical, and attachment volumes are needed to cover all repairs on a particular machine.

Pressure Tests and Fault Tracing

The power-train tests distinguish machines with and without central pressure detection. Hydraulic coverage separates D65E/P gear-type work-equipment pumps from the D65EX/PX combined hydraulic/HSS pump, and two- and three-spool main control valves, with optional ripper sections.

The symptom charts and factory test specifications support fault isolation before major components are removed. For excessive hydraulic drift, the cylinder-leakage section distinguishes blade-tilt or ripper-cylinder leakage from control-valve faults; the blade-lift cylinder's built-in piston valve prevents use of that same leakage measurement.

Named references include the Power Train Hydraulic Circuit Diagram, Work Equipment Hydraulic Piping Diagram, and Steering and Work Equipment Hydraulic System Diagram. Electrical references include the Connector Position Drawing, machine-monitor schematic, and separate cab and canopy electric circuit diagrams.

Inspection Standards, Tools, and Repair Cautions

Reference material includes component-specific torque tables, fluid and lubricant tables, wear limits, clearances, linkage settings, and inspection standards for disassembled parts. The tool list identifies the TORQFLOW clutch-piston oil-leak tester 799-301-1600, final-drive lifting tool 790-337-1032, recoil-spring compressor 791-685-8005, and hydraulic-cylinder repair stand 790-502-2000, alongside pullers, installers, and link-press tooling.

An off-center track-link press setup can damage the link bore, and bearing-puller contact can scar the HSS motor cylinder block's valve-plate surface. Work involving stored spring force, separated tracks, suspended power-train components, or pressurized hydraulic circuits requires the blocking, lifting, and pressure-release precautions specified by Komatsu.

Selected Valve-Clearance and Belt-Tension Data

For the 6D125-1/-2 and S6D125-1/-2 engines, the on-chassis tables specify valve clearances of 0.33 mm at the intake and 0.71 mm at the exhaust, measured at 20°C. The adjustment section supplies the corresponding valve-arrangement chart.

The engine tables list a standard fan-belt deflection of 10 mm under 58.8 N (6 kg) of force, with an 8–12 mm permissible range. The belt-tension section identifies the measurement point between the fan and alternator pulleys.
