1995–2003 Honda Fourtrax Foreman 400 TRX400FW Service Manual

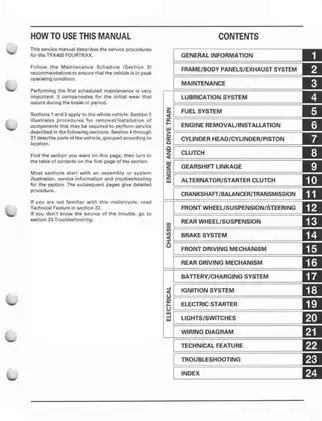

• Model coverage: 1995-2003 Honda FourTrax Foreman 400, model TRX400FW, supplied as a 369-page PDF organized into 24 numbered sections.
• Engine and fuel-system repair: Covers engine removal and installation, compression testing, cylinder-head disassembly, valve-guide and valve-seat work, piston and cylinder inspection, camshaft and cam-chain tensioner service, plus vacuum-piston carburetor overhaul and adjustment.
• Clutch, transmission, and starting systems: Details centrifugal and change-clutch inspection, gearshift linkage and reverse-stopper service, crankcase separation, crankshaft/balancer/transmission teardown, recoil starter repair, alternator removal, flywheel service, and one-way starter-clutch work.
• Four-wheel-drive and chassis work: Includes front drive-shaft and CV-joint service, limited-slip differential inspection and setup, rear axle and final-drive overhaul, steering and suspension repair, tire repair, and front/rear shock and swingarm service.
• Brake and electrical diagnosis: Provides front hydraulic drum-brake bleeding and wheel-cylinder service, rear mechanical drum-brake repair, battery and charging tests, DC-CDI ignition checks, starter motor/relay/diode tests, cooling-fan controls, oil-temperature circuit checks, and light and switch diagnosis.

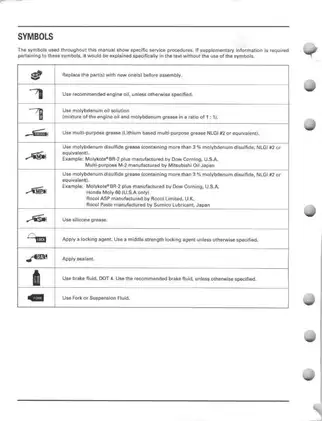

• Factory reference material: Includes model-identification locations, the maintenance schedule, special-tool numbers, assembly torque tables, service limits, fluid data, cable and harness routing, troubleshooting charts, exploded views, system diagrams, and the complete wiring diagram.

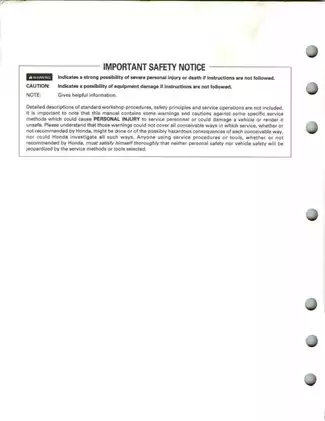

This Honda factory service manual documents the 394.9 cc air-cooled OHV single used in the TRX400FW, together with its vacuum-piston carburetor, pressure-fed wet-sump lubrication, automatic clutch system, five-speed constant-mesh transmission with reverse, shaft drive, front limited-slip differential, and rear final drive. Standard shop procedures and safety principles are not taught, so the manual is suited to professional technicians and experienced owners who already have sound mechanical fundamentals, metric tools, and the test equipment required for the repair at hand.

Engine and Drivetrain Service Scope

The manual makes an important shop-planning distinction. Cylinder-head and valve work, camshaft service, cylinder and piston repair, clutch work, recoil starter/alternator/starter-clutch service, carburetor work, and oil-pump service can be performed with the engine in the frame. Crankshaft, balancer, transmission, and gearshift-linkage repair require engine removal and crankcase separation.

Lubrication coverage maps the oil circuit and addresses the oil cooler, cooling fan and shroud, trochoid pump, relief valve, and strainer screen. The fuel chapter goes well beyond cleaning the carburetor. It covers the starting-enrichment valve, air-cut valve, diaphragm and vacuum piston, primer, float-level inspection, pilot-screw setting, high-altitude adjustment, fuel tank, and strainer. Clutch coverage treats the centrifugal clutch and wet multi-plate change clutch as separate assemblies, with their own inspection limits and installation procedures.

Differential, Brake, and Chassis Detail

Front-drive coverage includes CV-joint and boot disassembly, shaft inspection, limited-slip clutch-pack testing, spring-seat selection, ring-and-pinion backlash, tooth-contact pattern checks, and pinion and case-bearing replacement. The rear-drive chapter follows the same factory setup depth for the axle, drive shaft, final-drive gear case, ring-gear spacers, pinion adjustment, seals, and bearings.

The tool listings identify job-specific equipment by number. Examples include clutch holder 07GMB-HA70101, differential inspection tool 07KMK-HC50101, pinion puller set 07HMC-MM80101, and 28 mm ball-joint remover 07MAC-SL00200; 07KMK-HC5010A is listed as the U.S. alternative for the differential tool.

Chassis sections cover handlebar and throttle housing service, tie rods, knuckles, arm and steering-shaft bearings, shock absorbers, swingarm bearings, wheel service, and toe inspection. Brake procedures distinguish the hydraulic front drums from the cable-operated rear drum and include fluid replacement, bleeding, master-cylinder repair, wheel-cylinder and adjuster inspection, shoe service, and pedal setup.

Electrical Diagrams and Troubleshooting

Electrical diagnosis starts with battery condition and current leakage, charging-system output, alternator charging-coil checks, and regulator/rectifier testing. The ignition chapter covers coil peak-voltage tests, the AC sensor line, and the ignition pulse generator. Separate procedures address the starter motor, relay, diode, cooling-fan control unit, oil-temperature sensor, lamps, and handlebar switches. The fault charts trace hard starting, loss of power, poor low- or high-speed performance, and handling complaints through likely causes rather than presenting only specifications.

Useful visual references include the lubrication-system flow diagram, cable and harness routing views, limited-slip differential section view, ring-and-pinion contact-pattern charts, charging and DC-CDI circuit schematics, and the full vehicle wiring diagram.

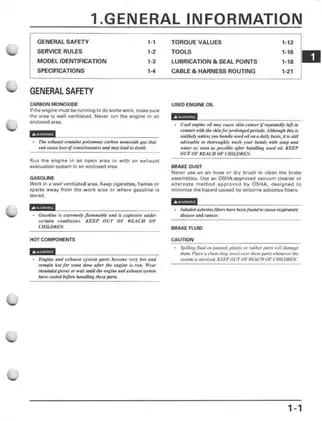

The manual specifically warns that the oil filter must be installed with its “OUT-SIDE (TOWARDS FILTER COVER)” mark facing outward; reversing it can cause serious engine damage. It also requires backlash and tooth-contact checks after differential or final-drive bearings, gear sets, or housings are replaced, since incorrect setup can leave the gears noisy, binding, or damaged. Fuel, battery, brake, and work performed with the ATV lifted can be hazardous, so follow the publication's system-specific cautions and use a qualified powersports technician when a repair exceeds your training or equipment.
