1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor service manual
Product Gallery

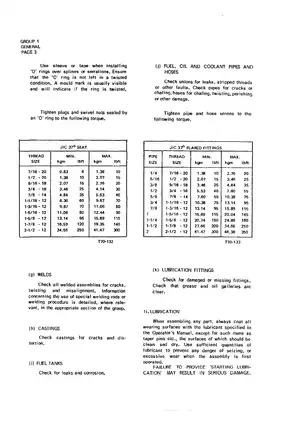

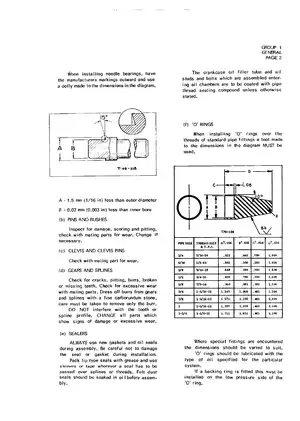

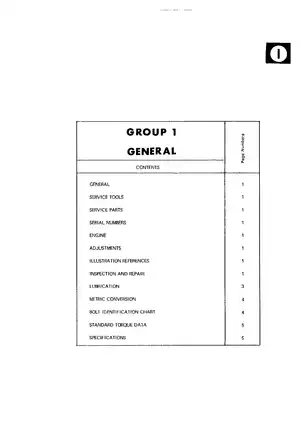

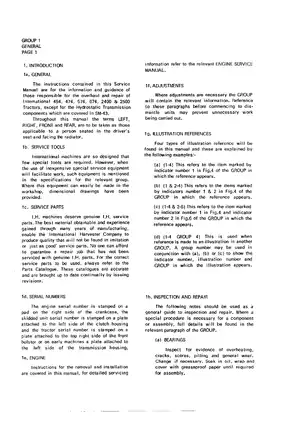

Sample pages from the 1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor service manual manual





Purchase Information
1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor service manual - Technical Specifications
- File Size:
- 0.00 MB
- File Type:
- Language:
- English (some of our manuals are multilingual).
- Printable:
- Yes
- Estimated Download Time:
- 0 Minutes
- Delivery Format:
- Digital (PDF) - Instant Access
- Category:
- Tractor
- Brand:
- International
International Models and Parts Covered in this Tractor Manual
454, 474, 475, 574, 674, 2400, 2500 / International Harvester™
Production years (depending on model): 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978.
Engine specs:
- (454):
- C-157, gasoline, 4-cylinder, liquid-cooled, 157 ci, 2.6 L, 3.375x4.39 inches, 86 x 112 mm, 50 hp, 37.3 kW, 7.5:1.
- D-179, diesel, 3-cylinder, liquid-cooled, 179 ci, 2.9 L, 3.875x5.0625 inches, 98 x 129 mm.
- (474):
- D-206, diesel, 4-cylinder, liquid-cooled, 206 ci, 3.4 L, 3.875x5.06 inches, 98 x 129 mm, 62 hp, 46.2 kW.
- (475):
- Perkins A4.212, diesel, 4-cylinder, liquid-cooled, 212 ci, 3.5 L, 3.875x4.50 inches, 98 x 114 mm, 60 hp, 44.7 kW.
- (574):
- C-200, natural gasoline, 4-cylinder, liquid-cooled, 200.3 ci, 3.3 L, 3.8125x4.39 inches, 97 x 112 mm, 67 hp, 50.0 kW, 7.33:1.
- D239, diesel, 4-cylinder, liquid-cooled, 238.6 ci, 3.9 L, 3.875x5.06 inches, 98 x 129 mm, 12:1.
- (674):
- D239, diesel, 4-cylinder, 239 ci, 3.9 L, 3.875x5.06 inches, 98 x 129 mm, 16:1.
- C200, gasoline, 4-cylinder, liquid-cooled, 200.3 ci, 3.3 L, 3.8125x4.39 inches, 97 x 112 mm, 7.33:1.
- (2400):
- D-179, diesel, 3-cylinder, liquid-cooled, 179 ci, 2.9 L, 3.875x5.060 inches, 98 x 129 mm, 46 hp, 34.3 kW, 16:1.
- C-157, gasoline, 4-cylinder, liquid-cooled, 157 ci, 2.6 L, 3.375x4.390 inches, 86 x 112 mm, 46 hp, 34.3 kW, 7.5:1.
- (2500):
- D-239, diesel, 4-cylinder, 206 ci, 3.4 L, 3.875x4.38 inches, 98 x 111 mm, 67 hp, 50.0 kW, 80 hp, 59.7 kW.
- C-200, gasoline, 4-cylinder, liquid-cooled, 66 hp, 49.2 kW, 74 hp, 55.2 kW.
International 1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor service manual - Complete Manual Information
Table of Contents
- General Specifications
- Lubrication and Maintenance
- Engine Specifications
- Cooling System
- Fuel System
- Electrical System
- Transmission System
- Steering and Front Axle
- Power Take-Off
- Brakes
- Hydraulic System
- And more...
This 1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor manual is a valuable resource for mechanics, technicians, and owners as it contains detailed information on maintenance, repairs, and troubleshooting for these specific tractor models.
- The pricing for these manuals is set by the individual seller, so it is recommended to compare prices before making a purchase.
- Users can find comments and ratings from others at the end of the detail page to aid in their decision-making process.
- Download the repair manual with a lifetime guarantee and refer to the FAQs for more information.
- Contact the seller through the provided contact form for any inquiries or assistance.
- If satisfied with the service, users are encouraged to recommend and follow the platform on social media.
Download Instructions for International Tractor Manual
Frequently Asked Questions - International Tractor Manual
What does this International manual cover?
This comprehensive service manual covers detailed repair procedures, maintenance schedules, troubleshooting guides, and technical specifications for 1970-1978 International Harvester™ 454, 474, 475, 574, 674, 2400, 2500 tractor service manual. It includes information for the following models: **454, 474, 475, 574, 674, 2400, 2500 / International Harvester™** **Production years (depending on model)**: 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978. **Engine specs**: - (454): - C-157, gasoline, 4-cylinder, liquid-cooled, 157 ci, 2.6 L, 3.375x4.39 inches, 86 x 112 mm, 50 hp, 37.3 kW, 7.5:1. - D-179, diesel, 3-cylinder, liquid-cooled, 179 ci, 2.9 L, 3.875x5.0625 inches, 98 x 129 mm. - (474): - D-206, diesel, 4-cylinder, liquid-cooled, 206 ci, 3.4 L, 3.875x5.06 inches, 98 x 129 mm, 62 hp, 46.2 kW. - (475): - Perkins A4.212, diesel, 4-cylinder, liquid-cooled, 212 ci, 3.5 L, 3.875x4.50 inches, 98 x 114 mm, 60 hp, 44.7 kW. - (574): - C-200, natural gasoline, 4-cylinder, liquid-cooled, 200.3 ci, 3.3 L, 3.8125x4.39 inches, 97 x 112 mm, 67 hp, 50.0 kW, 7.33:1. - D239, diesel, 4-cylinder, liquid-cooled, 238.6 ci, 3.9 L, 3.875x5.06 inches, 98 x 129 mm, 12:1. - (674): - D239, diesel, 4-cylinder, 239 ci, 3.9 L, 3.875x5.06 inches, 98 x 129 mm, 16:1. - C200, gasoline, 4-cylinder, liquid-cooled, 200.3 ci, 3.3 L, 3.8125x4.39 inches, 97 x 112 mm, 7.33:1. - (2400): - D-179, diesel, 3-cylinder, liquid-cooled, 179 ci, 2.9 L, 3.875x5.060 inches, 98 x 129 mm, 46 hp, 34.3 kW, 16:1. - C-157, gasoline, 4-cylinder, liquid-cooled, 157 ci, 2.6 L, 3.375x4.390 inches, 86 x 112 mm, 46 hp, 34.3 kW, 7.5:1. - (2500): - D-239, diesel, 4-cylinder, 206 ci, 3.4 L, 3.875x4.38 inches, 98 x 111 mm, 67 hp, 50.0 kW, 80 hp, 59.7 kW. - C-200, gasoline, 4-cylinder, liquid-cooled, 66 hp, 49.2 kW, 74 hp, 55.2 kW. .
Is this manual suitable for beginners?
Yes, this International manual is designed for both professional technicians and DIY enthusiasts. It includes step-by-step procedures with clear illustrations and safety guidelines for Tractor maintenance and repair.
What file format will I receive?
You will receive this manual as a PDF file (0.00 MB), which is compatible with all devices. The manual is fully searchable and printable for your convenience.
How quickly can I access the manual after purchase?
You'll receive instant access to your International Tractor manual immediately after payment completion. The download link is valid for 3 days, with lifetime re-download guarantee.
Does this include hydraulic system information?
Yes, this equipment manual covers hydraulic system operation, maintenance procedures, and troubleshooting for your International machinery.
Can I print specific sections of the manual?
Absolutely! This digital manual allows you to print any section you need, from individual pages to complete chapters, making it perfect for workshop use.
