Mercury Cougar 1999–2002 Service & Owner’s Manual Set

The workshop files provide repair procedures and diagnostic tests, while the owner’s guides explain vehicle operation and routine care. The separate index supplies section references for the workshop material.

Coverage: The workshop procedures are identified for the 2001 Cougar; the owner’s guides are the 1999 and 2002 editions. Selected diagnostic routines refer to the separate Powertrain Control/Emissions Diagnosis manual and Wiring Diagrams publication, which are not included in this download.

PDF Search, Bookmarks and Included Pages

Finding information: The first workshop file has searchable OCR text; the second is partially searchable, with no embedded text on PDF pp. 510–630. Text search in the 1999 guide is unreliable because of character-encoding errors. The 2002 guide and separate index support text search. Both owner’s guides have chapter bookmarks; workshop bookmarks mark file segments rather than chapters, and the separate index has none. Some small circuit and connector labels require zooming.

ZIP download containing 5 printable PDFs and 3,551 pages total. That total includes the separate 10-page index, repeated indexes within both workshop files, four fastener-identification/conversion reference pages, front matter, five blank workshop pages and six owner-guide pages containing only page numbers.

Engine Overhaul, Transaxle Testing and Electrical Diagnosis

These selected content highlights outline the main areas below. Additional topics include exhaust-system service and cruise-control diagnosis; this is not a complete table of contents.

• Engine repair: Engine removal, disassembly and assembly, cylinder-head work, timing-belt and timing-chain procedures, and internal component inspection.

• Transaxles and clutch: Automatic and manual transaxle overhaul, torque-converter checks, clutch-hydraulic service, and shift-control adjustment.

• Chassis and brakes: Suspension and wheel-bearing service, halfshaft repairs, steering diagnosis, brake bleeding, and ABS/traction-control pinpoint tests.

• Cooling and climate control: Cooling-system testing and bleeding, water-pump replacement, A/C leak detection, refrigerant recovery, evacuation, and charging.

• Electrical and security: Starting and charging tests, instrument-cluster self-diagnosis, module communications, passive anti-theft diagnosis, and remote keyless-entry testing.

• Body and cabin: Seat and trim repairs, glass and lock mechanisms, roof-opening-panel adjustment, water-leak checks, and body-alignment references.

• Owner operation and maintenance: Dashboard controls, audio systems, warning indicators, safety restraints, fluid checks, fuse identification, and roadside procedures.

The workshop material is suited to experienced technicians with scan-tool access, measuring equipment and the specified workshop tools; the owner’s guides address everyday operation and routine owner maintenance.

Engine Timing and Internal Repair

The Zetec-VCT material distinguishes shim-type valve adjustment for builds up to 06/1999 from replacement-tappet selection for builds from 06/1999 onward. Its Mechanical Design of the VCT Unit view and hydraulic-operation diagrams explain the relationship between the exhaust camshaft, pulley and oil-controlled actuator.

The V6 chapters extend to cylinder-head and piston subassemblies, hydraulic lash adjusters and select-fit main-bearing grade charts. Timing-belt cautions explain how retensioning a used belt can cause it to tear or flap.

Transaxle Fault Isolation and Overhaul

CD4E troubleshooting connects trouble-code charts and solenoid failure-mode tables with line-pressure, stall-speed and air-pressure tests. These references support distinguishing electrical-control faults from hydraulic or mechanical concerns before selecting a repair procedure.

The Air Pressure Test Port Locations illustration identifies the clutch and servo test passages. Manual-transaxle coverage extends to input/output shafts, synchronizers, the differential and selector mechanism, with bearing checks and assembly measurements.

The CD4E electrical-test section also warns that levering on the harness connector can damage it and create another transaxle fault.

Brake, Cooling and A/C Service

Brake diagnosis separates ABS-only systems from ABS with traction control. Cooling checks include thermostat and pressure-cap testing, while the A/C chapters cover compressor-shaft seal replacement and clutch air-gap adjustment.

The Refrigerant Circuit with a Fixed Orifice Tube diagram traces the major A/C components and refrigerant states, providing context for the system’s pressure and performance checks.

Electrical Diagnosis and Vehicle Controls

Hybrid Electronic Instrument Cluster material includes gauge-sweep checks, warning-indicator tests, DTC indexes and diagnostic data tables. Communication Network layouts explain the module connections and the different diagnostic links used by the PCM and other controllers.

Pinpoint tests contain connector views, pin references and circuit/color identifiers. Passive anti-theft chapters distinguish spare-key programming from procedures requiring diagnostic equipment.

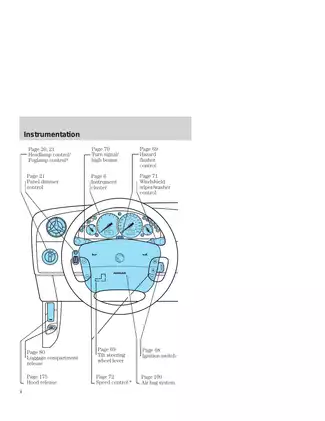

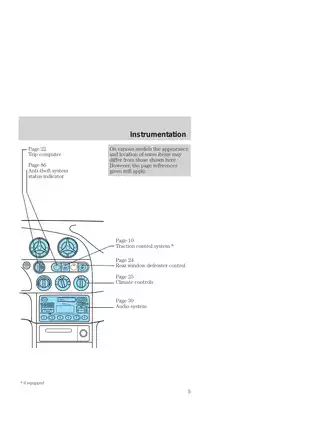

The owner’s guides explain steering-column controls, climate selectors, warning chimes and overhead warning lights. The 1999 guide also details the 4500/4600 audio interfaces. Body procedures distinguish front-seat backrest construction around the 08/2000 production change.

Follow the manual’s vehicle-support and restraint-system deactivation precautions before service.

A Preview of 2.0L Valve-Clearance Specifications

For the 2.0L engine, the specification table lists intake valve clearance of 0.11–0.18 mm and exhaust clearance of 0.27–0.34 mm, both at 20°C ± 5°C. These values accompany the valve-tappet inspection and selection material and are separate from the V6’s hydraulic lash-adjuster coverage.
