Honda CBR900RR Fireblade 1996–1998 Service Manual (P/N 61MAS02)

407 Pages • ZIP Download: 1 Printable PDF (English)

4.3starstarstarstarstar_border(3)
$18.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Model: CBR900RR

Sub-models / Variants: 49 states type (carburetor ID VP88B for 1996–1997, VP8CP for 1998), California type (carburetor ID VP89A for 1996–1997, VP8DA for 1998), Canada type (carburetor ID VP88A for 1996, VP88B for 1997, VP8CB for 1998)

Trade Name: Fireblade

Model Years: 1996–1998 (1996, 1997, 1998)


  • Engine: 919 cc, 4-stroke, liquid-cooled, 4-cylinder, DOHC

  • Transmission: 6-speed, constant mesh

  • Carburetor: 38 mm constant velocity (CV)

  • Compression Ratio: 11.0:1

  • Ignition: Full transistor digital

  • Tire Size (Front): 130/70-ZR16

  • Tire Size (Rear): 180/55-ZR17

  • Drive Chain: 120 links (DID525HV GC&B – 120ZB or RKGB525ROZ1 – 120LJF)

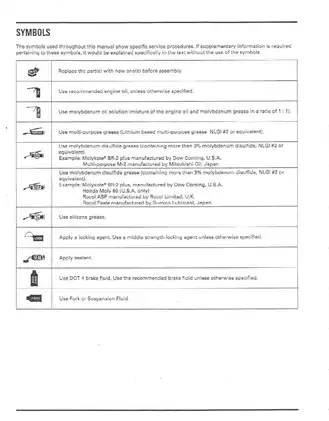

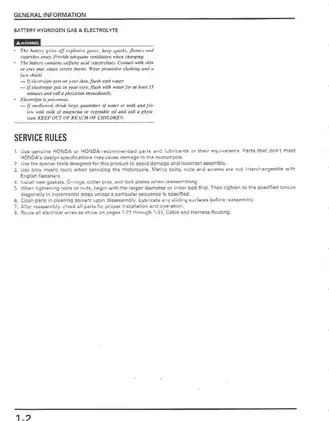

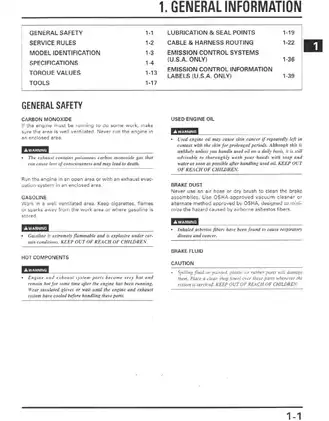

Honda Manual Features & Selected Content Preview

This Honda service manual (P/N 61MAS02) covers the 1996–1998 CBR900RR Fireblade in 49-state, California, and Canadian configurations. The introduction is dated December 1995, and the service chapters identify changes for the 1998 model.

PDF Download and Wiring Diagram Readability

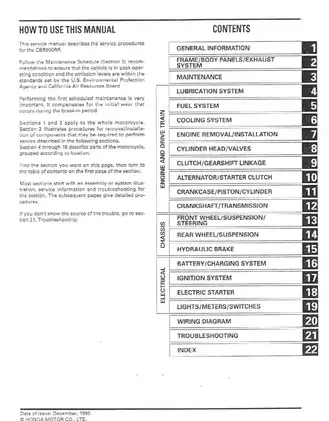

Navigation and diagram detail: The PDF has 24 embedded bookmarks for the cover, contents, and numbered sections. Text search is unavailable. Zoom in to read small connector labels and wire-color codes on the two wiring diagrams.

The ZIP download contains one printable English PDF. The 407 pages include 395 service and reference pages, one cover, two introductory pages, and nine blank memo pages.


Engine Overhaul, Carburetor Service, and Electrical Diagnosis

The topics below are selected highlights. The manual also includes cable and harness routing diagrams and troubleshooting for poor handling.

  • Engine repair: Engine removal and installation, cylinder-head and valve service, cam timing, crankcase separation, and inspection of the pistons, crankshaft, and transmission.
  • Fuel system: Carburetor disassembly and synchronization, idle-drop and high-altitude adjustments, vacuum-operated fuel valve testing, and California PAIR system inspection.
  • Clutch and final drive: Clutch-pack inspection, gearshift linkage and shift-fork service, starter clutch checks, and drive-chain replacement with a staked master link.
  • Lubrication and cooling: Oil-pressure testing, oil-pump inspection, thermostat and radiator-cap testing, coolant replacement, and air bleeding.
  • Chassis and brakes: Body panel and exhaust removal, fork service, steering head bearing adjustment, suspension linkage repair, and caliper and master cylinder overhaul.
  • Electrical diagnosis: Charging-system flowcharts, ignition peak-voltage tests, throttle and speed sensor checks, starter-circuit troubleshooting, and wiring diagrams.

This manual is suited to mechanics experienced in motorcycle diagnosis and internal engine repair who have access to the specified test equipment and special tools.

Valve Train, Bearings, and Transmission

Cylinder-head service covers valve shim selection, valve guide replacement, and valve seat refacing. The camshaft removal procedure calls for loosening the holder bolts evenly to avoid breaking a holder.

Honda identifies which jobs can be done with the engine in the frame, including cylinder-head, clutch, and shift-fork service. That distinction helps plan work on the pistons, cylinders, crankshaft, or transmission, all of which require engine removal.

Crankpin and main journal bearing tables identify replacement grades and specify how to check clearances. Transmission procedures cover gear dogs, shaft bushings, bearing replacement, and assembly orientation. The clutch instructions show the revised 1998 disc arrangement and judder spring installation, with component torque and lubrication references.

Carburetor Settings and California Emissions

Regional tables distinguish jetting, needle specifications, pilot screw settings, and idle speeds. The fuel chapter covers carburetor separation and reassembly, checks of the vacuum-operated fuel valve, and float replacement when the measured level is out of specification. Its cleaning instructions warn that compressed air can damage installed diaphragms.

California coverage includes the EVAP canister, purge control valve, and carburetor air vent control valve. The vacuum hose routing diagram and PAIR control valve test help identify the correct connections and checks for that configuration.

Oil Circulation and Cooling-System Diagnosis

The lubrication diagram traces oil flow through the strainer, pump, pressure relief valve, and oil cooler. The cooling section shows hose routing by model year and covers water pump replacement when the mechanical seal leaks. The coolant hydrometer test refers to a chart in the separate Honda Common Service Manual, which is sold separately from this download.

Suspension, Steering, and Hydraulic Brakes

Exploded views show the body panels, seat rail, and suspension assemblies. Fork service includes seals, bushings, and preload, compression, and rebound settings. Rear suspension procedures cover shock spring removal, damper inspection, and swingarm and linkage bearing replacement.

Separate front brake procedures distinguish the caliper and master cylinder designs. The brake chapter covers fluid replacement and bleeding, disc inspection, and piston seal service. Support the motorcycle securely on a safety stand or hoist during wheel, suspension, or engine removal work.

Charging, Ignition, and Instrument Testing

Charging-system flowcharts help distinguish battery, wiring, alternator, and regulator/rectifier faults. For a no-spark condition, Honda provides ignition coil and pulse generator tests using peak-voltage adapter 07HGJ-0020100 or an Imrie Model 625 tester, along with an ignition timing check.

Dedicated charging, ignition, and starter circuit diagrams supplement the full wiring diagrams for 1996–1997 and 1998. The instrument chapter includes connector checks and electrical reference values for speedometer, tachometer, coolant temperature, and switch diagnosis.

Sample Coolant, Sprocket, and Ignition Specifications

Honda lists radiator and engine coolant capacity at 2.77 L for 1996–1997 and 2.64 L for 1998. The reserve tank has its own capacity specification.

The engine installation chapter specifies 54 N·m for the drive sprocket bolt. During cranking, the ignition test specifies a minimum primary peak voltage of 100 V at the ignition coil.
