Arctic Cat Bearcat, Crossfire & M-Series 2010 Service Manual (P/N 2258-669)

Arctic Cat service manual P/N 2258-669 covers 2010 Bearcat, Crossfire/CFR, M-Series, F-Series, T-Series, and Z1 snowmobiles, with separate sections for their two-stroke and four-stroke engines.

PDF Search, Bookmarks, and Wiring Detail

Text access and diagram detail: Much of the service text is searchable, but text encoding limits searches in some notes and tables. The wiring-diagram section has no searchable text. Embedded bookmarks lead to the main chapters and wiring section. Small wiring labels require zooming, and some pages show faint lines and background show-through.

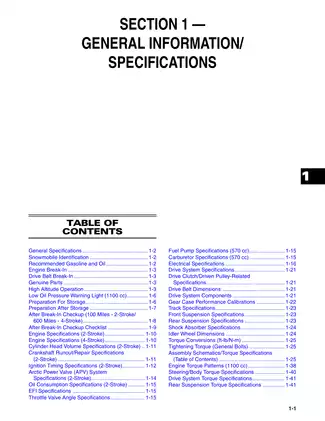

One printable English 561-page PDF, including the opening contents page and the 22-page wiring-diagram section with its model index.

Engine, Electrical, and Chassis Repair Coverage

The following selected service topics show the repair scope rather than the complete contents. Other subjects include recoil-starter repair and handlebar, thumb, and passenger warmer testing.

• Engine repair: Step-by-step removal, disassembly, inspection, reassembly, and installation procedures, with separate carbureted, EFI, and four-stroke troubleshooting.

• Fuel and oil injection: Carburetor rebuilding and synchronization, fuel-pump and injector testing, plus oil-injection pump and check-valve checks.

• Electrical diagnosis: ECU/CCU fault codes, throttle-position sensor checks, ignition testing, electric-start troubleshooting, and model-indexed wiring diagrams.

• Drive train and track: Clutch and driven-pulley service, ACT gear-case repair with and without reverse, track-driveshaft repair, and drive-sprocket installation.

• Rear suspension: Configuration-specific skid-frame repair, the Bearcat XT articulating section, ACT shock service, Fox air-shock rebuilding/recharging, and Fox Zero Pro shock service.

• Hydraulic brakes: Caliper disassembly, piston and seal inspection, brake-disc replacement, master-cylinder replacement, and bleeding.

This manual suits technicians familiar with engine teardown and electrical testing who have access to the specified service tools and diagnostic equipment.

Engine Internals, Valve Timing, and Cooling

The engine sections distinguish fan-cooled and liquid-cooled two-strokes. Four-stroke coverage separates the AA11L5 non-turbo and AB11L5 turbo builds, with different internal inspection specifications.

Internal service: Crossfire/M-Series procedures identify top-side work possible with the engine in the chassis. Four-stroke material covers cylinder-head service, cam-chain timing, crankshaft and balancer bearing selection, and valve-clearance inspection with tappet-shim selection charts. Valve, guide, and seat machining is referred to a qualified machine shop.

Lubrication and cooling: Two-stroke crankcase leak testing and water-pump seal replacement accompany cooling-system maintenance. The tool listings identify the Engine Leak-Down Test Kit, p/n 0644-522. The Oil Flow Chart (1100 cc) separates turbo and non-turbo circuits, while Cooling System Schematics distinguish engine/chassis layouts.

Turbocharger and intercooler removal, inspection, and installation have a dedicated section.

Carburetors, EFI, and Exhaust Controls

The VM-34 carburetor material covers jetting, float-height checks, and piston-valve synchronization, supported by an exploded component view. Oil-injection pump adjustment and check-valve testing are treated separately from fuel delivery.

Injector matching: Replacement references distinguish the 500 cc injector letter codes from the symbol/color coding used on 600/800/1000 cc engines. The manual warns that mismatched injector codes can cause severe engine damage.

Fuel-injection troubleshooting covers rail pressure, pump circuits, and sensor faults. Certain tests refer to the separate EFI Diagnostic System Manual or EFI Analyzer Usage Manual and their diagnostic equipment; those publications are not included in this PDF.

APV and ECT: Arctic Power Valve service covers cleaning, cable adjustment, and servomotor testing. Exhaust Controlled Timing coverage addresses the exhaust-temperature sensor.

Electrical Tests and Harness References

Engine-specific test connections and conditions include stator-coil output and ignition timing sensor resistance checks. Peak-voltage procedures specify the Peak Voltage Reading Adapter, p/n 0644-307.

The harness index helps select the correct circuit before tracing a fault. Diagrams separate main, hood/console, and handlebar harnesses by model; the Passenger Seat Harness drawing applies to TZ1 models. Magneto diagrams distinguish ignition and charging arrangements.

Clutch Alignment, Track, and Suspension

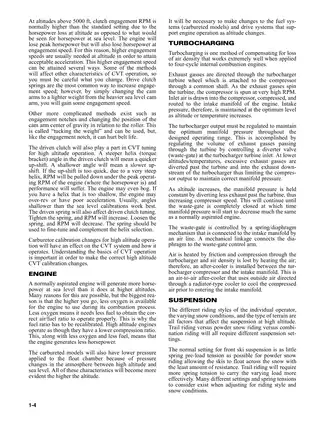

Clutch setup: Cam-arm and spring work is supported by belt-deflection and drive clutch/driven pulley alignment procedures. The installation cautions identify stationary-sheave damage caused by impact-tool tightening of the drive-clutch mounting bolt.

High-altitude guidance explains the relationship between clutch tuning and carburetion. Detailed settings refer to the sled's calibration decals, while optional tuning components are listed in the separate Quick Reference Guide.

Track and skid frame: Track work includes sprocket positioning, tension, and alignment, with troubleshooting charts for track, brake, clutch, and drive-belt problems. The Chassis and Skid Frame Mounting Locations drawings support rail, wear-strip, idler-wheel bearing, limiter-strap, and suspension-arm service by configuration.

Steering and body procedures cover tie rods, spindles, A-arms, ski alignment, and tunnel/bumper/snowflap replacement.

Maintenance and Assembly References

Shock-absorber, idler-wheel, and drive-belt reference tables accompany assembly schematics. General bolt torque tables are separate from component-specific requirements; Engine Torque Patterns (1100 cc) provide four-stroke assembly references. Wear limits, bearing clearances, ignition timing verification, and fuel-pressure specifications support inspection and diagnosis.

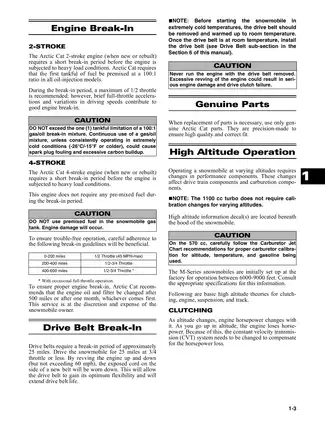

Break-in checklists, oil-change intervals, and storage preparation cover ongoing service. General model specifications are referenced to Arctic Cat's Cat Tracker dealer system.

Review the factory safety precautions and service limits before repair work around rotating clutches and tracks, pressurized shocks, or hydraulic brakes.

A Preview of Float-Height and Ignition Test Data

For the AA56A9 engine’s VM-34 carburetor, the manual specifies a float-arm height of 22–24 mm, measured from the gasket surface to the top of the float arm with the carburetor inverted.

For the AJ60L7 engine, the ignition timing sensor resistance specification is 80.8–121 ohms between the green/white and brown/green leads, with the sensor connector disconnected. Electrical tables keep this test separate from stator-coil output checks.
