Kawasaki Ninja ZX-10 1988–1990 Factory Service Manual (P/N 99924-1098-02)

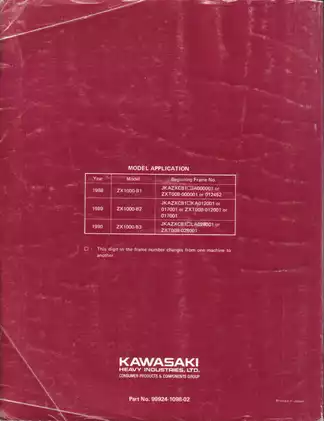

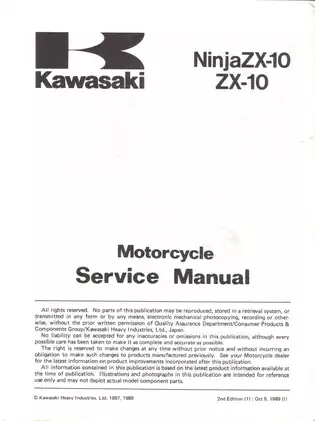

Kawasaki factory service manual P/N 99924-1098-02, second edition dated October 5, 1989, for the 1988 ZX1000-B1, 1989 ZX1000-B2, and 1990 ZX1000-B3 Ninja ZX-10.

PDF Bookmarks, Wiring Detail, and Page Count

Text search and diagram detail: The manual’s body text is not searchable. Embedded bookmarks navigate the chapters and selected subsections. Small wiring-diagram labels require zooming; the main US/Canada and other-market diagrams each span two PDF pages.

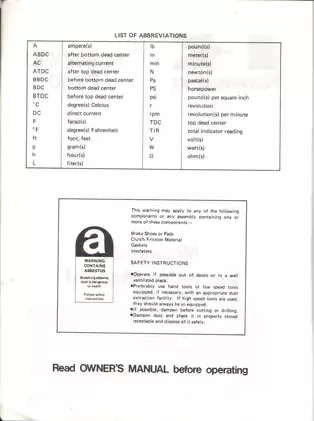

One printable, English-language PDF contains 231 pages, including three cover pages—the rear cover appears twice—seven introductory/reference pages, and seven blank pages.

Engine Overhaul, Chassis Service, and Electrical Diagnosis

These are selected contents from the manual; additional topics include battery charging and headlight beam adjustment.

• Engine repair: Step-by-step procedures cover engine removal, cylinder-head work, camshaft and chain timing, compression testing, valve-clearance adjustment, and piston inspection.

• Bottom end and transmission: Crankcase splitting, crankshaft and connecting-rod inspection, bearing selection, balancer service, transmission disassembly, and alternator-shaft and starter-clutch work.

• Fuel and market-specific systems: Carburetor disassembly, fuel-level adjustment, synchronization, California evaporative-emissions checks, US high-altitude tuning, and UK carburetor coolant-filter service.

• Cooling and lubrication: Cooling-system pressure testing, radiator-cap and thermostat checks, water-pump inspection, oil-pump and relief-valve service, and engine-oil pressure diagnosis.

• Clutch and chassis: Hydraulic clutch service, wheel and hub-bearing work, chain and sprocket service, brake overhaul, front-fork repair, Uni-Trak suspension, and steering bearings.

• Electrical troubleshooting: Market-specific wiring diagrams, alternator and ignition tests, starter and safety-switch circuits, plus fuel-pump, cooling-fan, gauge, lighting, relay, and diode checks.

• Factory reference data: Exploded views, torque and locking-agent tables, fluid capacities, wear limits, clearance and bearing-selection data, electrical test specifications, and illustrated special tools.

Written primarily for trained mechanics in an equipped shop, the manual also supports owners doing basic maintenance and repair who understand mechanical fundamentals, tool use, and workshop procedures.

Internal Engine and Drivetrain Repair

Cylinder head and valve gear: Coverage extends to valve-guide replacement, valve-seat cutting and lapping, camshaft and rocker inspection, and intake/exhaust shim-selection charts. Piston, cylinder, ring-groove, and ring-end-gap inspections distinguish standard dimensions from service limits.

Crankshaft and transmission: Bearing-insert selection uses connecting-rod, crankshaft, and crankcase markings alongside clearance measurements. Runout and side-clearance checks accompany balancer positioning, alternator-chain and tensioner service, transmission-shaft assembly, and shift-drum and fork work.

The Chain Timing Procedure layout and transmission-shaft section views show timing relationships and internal assembly arrangements.

Cam-chain tensioner cautions distinguish damage caused by retightening partly loosened mounting bolts from the valve damage possible if the crankshaft is turned with the tensioner removed.

Other assembly cautions cover engine damage from ground shims or shim stock placed beneath them, and clutch-plate seizure from dry plate installation.

Carburetion, Cooling, and Hydraulic Clutch Service

Fuel-system detail: Four Keihin CVKD36 carburetors are covered with throttle and choke cable adjustment, idle setting, fuel-level measurement, and carburetor inspection. Fuel-pump and filter service, air-cleaner cleaning, California separator/canister checks, and Clean Air System valve tests address related running problems.

Country-specific specifications and routing differences help owners and shops identify the applicable setup before selecting parts or test procedures. UK water-hose layouts distinguish B1 from B2/later builds; the ignition-switch illustration also identifies a frame-number-dependent bracket.

Cooling and lubrication: The Coolant Flow Chart and Engine Oil Flow Chart support the pressure-test and circulation information. Procedures cover coolant filling, radiator inspection, oil-pan and oil-cooler service, and relief-valve testing. Water-pump mechanical-seal leakage is addressed by replacement of the pump unit.

Hydraulic clutch: Master- and slave-cylinder disassembly accompanies fluid replacement and line bleeding. Clutch-pack inspection covers friction-plate wear, plate warp, and spring free length.

Wheels, Brakes, Suspension, and Bodywork

Wheel procedures include balance-weight installation, tire inspection, hub-bearing replacement, and speedometer gear-housing service. Final-drive coverage extends beyond chain adjustment to endless-chain removal and installation, wheel alignment, sprocket inspection, and coupling service.

Brake chapters cover caliper and master-cylinder repair, disc inspection, fluid changes, and bleeding. Fork work includes oil and seal replacement, guide-bush inspection, and spring checks.

Rear suspension procedures address shock air pressure and damping adjustment, swingarm removal, and Uni-Trak tie-rod and rocker-arm bearing service. Steering-stem bearing replacement and fairing, fender, and rear-cowl removal are also included.

Circuit Tests, Troubleshooting, and Workshop Equipment

Alternator diagnosis separates discharged-battery, overcharging, and noise complaints, with rotor, stator, brush, rectifier, and regulator checks. The IC Igniter Troubleshooting flowchart, parts-location photographs, and cable, wire, and hose routing maps support fault isolation.

System-specific circuits cover starter interlocks, fuel-pump operation, cooling-fan control, tachometer and gauge tests, and junction-box fuses, relays, and diodes. The appendix adds symptom-based troubleshooting for starting difficulty, poor running, overheating, clutch and transmission faults, handling complaints, weak braking, and charging problems.

Illustrated equipment includes Vacuum Gauge 57001-1198, Compression Gauge 57001-221 and Adapter 57001-1317, Valve Spring Compressor Assembly 57001-241, Clutch Holder 57001-1243, and Oil Pressure Gauge 57001-164 with Adapter 57001-1188.

The appendix also contains theoretical racing-use considerations, general lubrication information, fastener checks, and unit conversions.

The radiator fan can operate with the ignition switched off while its circuit remains connected. Support the motorcycle securely, keep ignition sources away from fuel-system work, and follow the manual’s pressure and fluid-handling precautions before opening the cooling, brake, or clutch systems.

Selected Valve-Clearance, Oil-Pressure, and Rotor Test Data

For valve-clearance checks with the engine cold at room temperature, the rocker-arm-to-shim specifications are 0.13–0.19 mm intake and 0.18–0.24 mm exhaust.

The warmed-engine oil-pressure specification is 196–294 kPa at 4,000 rpm with the oil at 90°C, distinct from the relief-valve opening-pressure test.

Alternator rotor-coil resistance, measured between the slip rings with the component cold, is about 4 Ω for ZX1000-B1 and about 6 Ω for ZX1000-B2 and B3.
