Husqvarna Models Covered & Key Technical Specifications

Models: TE 250, TE 450, TE 510, TC 250, TC 450, TC 510, TXC 250, TXC 450, TXC 510, SMR 450, SMR 510, SMR 450-R

Sub-models / Variants: TE (Street Legal), TC (Competition), TXC (USA Competition), SMR (Street Legal/Supermoto), SMR 450-R (Competition Supermoto)

Model Years: 2008

Serial Numbers: Valid from the following VINs: TE 250: ZKHA200AA8V000001; TE 450: ZKHA202AA8V000001; TE 510: ZKHA203AA8V000001; TE 250 (USA): ZKHECECA*8V100001; TE 450 (USA): ZKHECENB8V100001; TE 510 (USA): ZKHECEHB8V100001; TC 250: ZKHA200AA8V050001; TC 450: ZKHA202AA8V050001; TC 510: ZKHA203AA8V050001; TXC 250 (USA): ZKHTX250*8V000001; TXC 450 (USA): ZKHTX450*8V000001; TXC 510 (USA): ZKHTX510*8V000001; SMR 450: ZKHA202AB8V000001; SMR 510: ZKHA203AB8V000001; SMR 450-R: ZKHA222AB8V050001


  • Engine: 4-stroke, single cylinder

  • Displacement: 15.22 cu. in. (250), 27.39 cu. in. (450), 30.56 cu. in. (510)

  • Compression ratio: 12.9:1

  • Fuel system: Mikuni D42 electronic injection (TE/SMR); Keihin FCR-MX 37/41 carburetor (TC/TXC/SMR 450-R)

  • Transmission: 5-speed (TC) or 6-speed (TE/SMR/TXC), hydraulic multi-plate clutch

  • Ignition: CDI electronic (TC/TXC/SMR 450-R); Inductive discharge (TE/SMR)

  • Valve clearance (cold): Intake 0.004–0.006 in., Exhaust 0.006–0.008 in.

Husqvarna Manual Features & Selected Content Preview

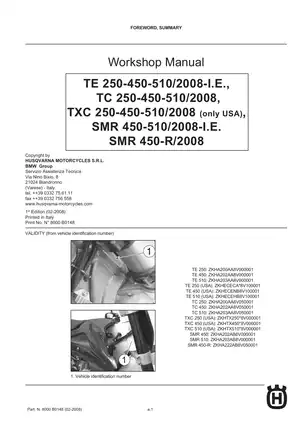

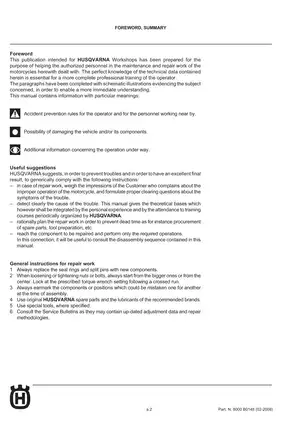

Husqvarna factory workshop manual, P/N 8000 B0148, 1st Edition dated February 2008, for the 2008 TE 250/450/510 I.E., TC 250/450/510, USA-only TXC 250/450/510, SMR 450/510 I.E., and SMR 450-R.

Text Search, Bookmarks and Wiring Diagram Detail

Navigation and legibility: Most body text is searchable, with bookmarks for the main sections. The dimensions page, frame illustration page, and some diagram labels are not searchable. Small labels in the TE/SMR wiring and ECU diagrams can remain difficult to distinguish even when enlarged.

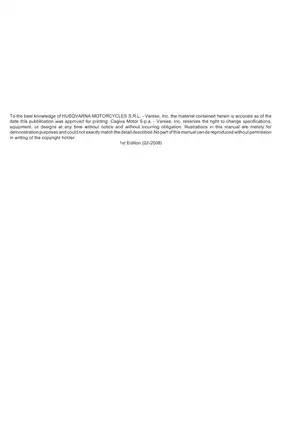

One printable 470-page PDF, comprising 468 numbered manual pages plus the original cover and publication page, all included in the total. This is the English edition, with occasional Italian notes and diagram labels.


Engine Overhaul, Electrical Diagnosis and Chassis Service

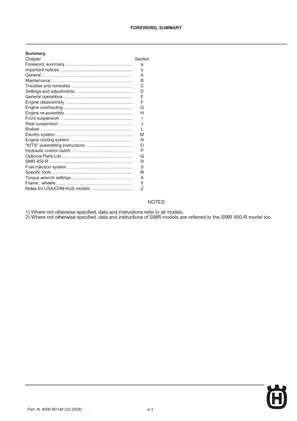

These selected highlights cover part of the manual’s contents. Other topics include air-filter servicing and handlebar position adjustment.

  • Engine repair: Step-by-step instructions for engine removal, cylinder-head and camshaft disassembly, valve and seat work, cylinder/piston inspection, crankshaft and connecting-rod overhaul, and reinstallation.

  • Drivetrain and lubrication: Gearbox and selector inspection, clutch repair, oil-pump service, timing-system assembly, SMR 450/510 counterbalancer work, and SMR 450-R slipper-clutch procedures.

  • Fuel and electrical diagnosis: Carburetor overhaul, fuel-pump and relay checks, charging and starter tests, ignition-coil and sensor testing, digital-instrument functions, and fault tracing.

  • Forks and rear suspension: Marzocchi USD fork overhaul, cartridge and valve service, seal and bushing replacement, rear-shock overhaul, reservoir diaphragm service, swingarm bearings, and linkage inspection.

  • Brakes and hydraulic clutch: Disc and pad inspection, front and rear brake bleeding, fluid replacement, and hydraulic clutch master-cylinder overhaul and bleeding.

  • Maintenance, cooling and chassis: Street and competition schedules, valve and decompressor adjustment, cooling-system checks, chain alignment, steering-head adjustment, wheel service, exhaust packing, and final operational checks.

  • Kits and reference data: Factory kit installation, optional-parts lists, wiring diagrams, exploded and sectional views, torque tables, fluid capacities, wear limits, clearances, suspension settings, and electrical test specifications.

Written for Husqvarna workshop personnel carrying out maintenance and repair, this manual assumes technical knowledge and use of the specified workshop tools.

Model Configurations and Repair Selection

The manual distinguishes the street-legal, limited-power standard configuration for TE and SMR from full-power competition conversions. TC, TXC, and SMR 450-R are treated as competition models.

Separate sections address Mikuni D42 injection, Keihin FCR-MX 37 carburetion on TC/TXC 250, and FCR-MX 41 carburetion on TC/TXC 450/510 and SMR 450-R. Transmission assembly procedures distinguish TC from TE/TXC/SMR, while starting and cooling coverage separates electric/kick-start combinations and fan-equipped TE/SMR layouts.

These distinctions help match the repair procedure and test information to the installed equipment. For engine assembly, the cylinder-head gasket selection chart also relates measured piston position to the appropriate gasket thickness.

Injection Diagnosis and Electrical References

Diagnosis kit coverage: The manual explains connection and basic use of kit 8000 A9634. Diagnostic checks address air and coolant temperatures, intake pressure, throttle position, the SMR tilt sensor, O2 feedback and heater operation, battery and sensor supply, gear position, injector pulse, and ignition-coil operation.

TPS idle and feedback adjustment commands are identified, but the kit’s separate software User’s Guide and Operation Manual are referenced rather than reproduced. The diagnostic software and interface cable are separate kit components.

Circuit references: TE/SMR, TC/TXC 250, and TC/TXC 450-510/SMR 450-R wiring diagrams are included alongside the TE/SMR ECU diagram and generator and starter-motor test diagrams. Connector identification, component-location drawings, and harness routing support circuit tracing; gear-position and carburetor TPS checks provide component-specific diagnosis.

On TXC models, the manual warns that starting the engine with the condenser removed after battery service can damage the voltage regulator.

Suspension Setup and SMR 450-R Steering

Separate fork procedures cover TE/SMR and TC/TXC/SMR 450-R configurations. Marzocchi cartridge and bottom-valve section views accompany oil filling, air bleeding, preload, compression, and rebound setup. Rear-shock instructions include reassembly and damping adjustment.

The SMR 450-R chapter also covers steering-head bush removal and selection, with a table connecting bush combinations to steering-axis position and angle.

The Marzocchi instructions warn that incorrect vise clamping can deform components and irreparably damage the fork.

Factory Kits and Workshop Tools

Conversion and accessory work: TE/SMR racing-kit instructions cover throttle-pulley changes and racing-harness installation. The racing harness does not support the standard digital-instrument functions or the SMR tilt sensor; the conversion is intended for closed-course use.

Other procedures cover TC electric-start installation, SMR 450/510 kick-start installation, starting-hook kits, and accessory kits. The kick-start kit excludes SMR 450-R. Regional notes cover USA/CDN spark-arrester servicing, Australian noise-control information, and the USA canister layout.

Special tools: References include crankcase puller 1517 94702, TC/TXC flywheel extractor 8000 A1559, and TE/SMR flywheel extractor 8000 B0144.

Valve assembly/removal tool 8000 39521, clutch-hub retaining wrench 8000 79015, SMR 450-R clutch tool 8000 A8190, and Marzocchi fork fixtures are identified where required.

The included optional-parts lists do not replace the separate spare-parts catalog P/N 8000 B0149.

Brake bleeding, pressurized rear-shock repair, fuel-system work, and major engine or suspension service require secure support, proper pressure release, and the specified factory procedures before disassembly begins.

Examples of Piston Fit and Wear Limits

The engine inspection table lists nominal piston-to-cylinder clearance of 0.020–0.046 mm for the TE/TC/TXC 250 models, with a wear limit of 0.10 mm.

SMR 450-R has a separate nominal clearance of 0.040–0.060 mm and a wear limit of 0.12 mm. These entries accompany the cylinder and piston measuring references in the engine-overhaul section.
