Chrysler M440 Marine Engine Service & Repair Manual Set (P/N 81-770-9563)
222 Pages • Printable PDF • 86.14 MB • Download
Chrysler Models Covered & Key Technical Specifications
Models: Marine Engine M440 (Chrysler 300; base manual)
Sub-models / Variants: Chrysler 260 (M383), Chrysler 280 (M383, M400), Chrysler 330 (M440) — supplement
Transmission Variants: Warner Gear Velvet Drive hydraulic direct drive — ASII-72C, ASII-72, ASI-72; corresponding opposite-rotation versions ASII-72CR, ASII-72R, ASI-72R.
Reduction-unit Coverage: 1.91:1 — AS17-72C, AS17-72CR, AS7-72, AS7-72R, AS7-71C, AS7-71CR, AS7-71, AS7-71R, AS7-70C, AS7-70CR, AS7-70, AS7-70R. 2.91:1 — AS5-70C, AS5-71C, AS5-72C. The 70/71-series coverage concerns the reduction units; their corresponding direct-drive manuals are required for the forward/reverse sections.
Distributor Serial Breaks: Chrysler 280 (M400) — up to Serial No. E 160081: Chrysler 2875895 / Prestolite IBM4108B; after Serial No. E 160081: Chrysler 3527074 / Prestolite IBM7004A.
Distributor Serial Breaks: Chrysler 330 (M440) — up to Serial No. E 169354: Chrysler 2875893 / Prestolite IBM4108C; after Serial No. E 169354: Chrysler 3675323 / Prestolite IBM7004B.
Carburetor Serial Break: M440 base engine and Chrysler 260 (M383), AFB-4476SA — standard step-up rod 16-75; 16-121 after S.N. E040846.
-
Engine Displacement: 440 cu. in.
-
Engine Configuration: 8 cyl. 90° O.H.V.
-
Brake Horsepower Net: 300 @ 4000 RPM
-
Compression Ratio: 8.0:1
-
Connecting Rod Length: 6.766"–6.770"
-
Idle Speed: 650 RPM
-
Oil Pressure: 45–65 psi @ 2000 RPM
-
Spark Plug Gap: 0.035 inch
-
Carburetor: 4-barrel downdraft AFB-4476SA
-
Fuel Pump Pressure: 3-1/2 to 5 psi
Chrysler Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Chrysler 300 / M440 Marine Engine Service Manual, P/N 81-770-9563, including reverse-gear and reduction-gear sections | 198 |
| Service Manual Supplement for Chrysler 260 (M383), Chrysler 280 (M383 and M400), and Chrysler 330 (M440) | 24 |
The supplement supplies variant-specific specifications and revised cooling, fuel, and electrical information. It refers back to the included base manual for shared repair procedures.
Transmission scope: The reduction-gear sections also cover specified 70/71-series units. Complete service of their forward/reverse assemblies requires the corresponding direct-drive manuals, which are separate publications.
PDF Bookmarks and Diagram Detail
Search and navigation: Manual text search is not available. Embedded bookmarks provide access to major sections. Small wire codes in the denser electrical test diagrams require enlargement; some tables and assembly drawings are sideways.

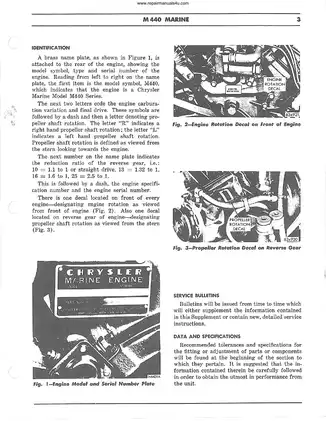

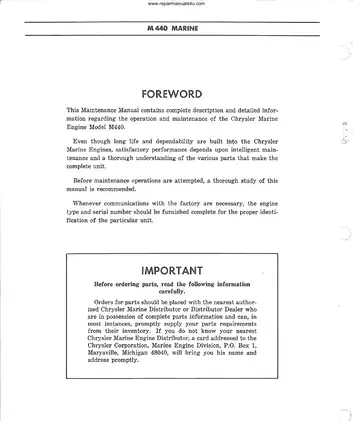

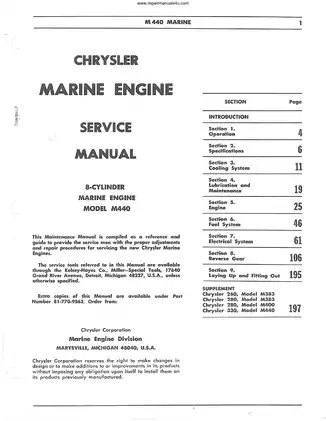

Delivered as one printable 222-page PDF. The publication totals above include the cover, foreword, supplement title page, and blank or note pages; the main manual includes two preliminary pages.
Engine Overhaul, Marine Cooling, and Velvet Drive Service
These selected content highlights outline the main workshop coverage. Further topics include exhaust-valve rotators and neutral-start switch installation.
-
Engine repair: Step-by-step procedures for cylinder heads, rocker shafts, hydraulic tappets, timing components, pistons, connecting rods, crankshaft bearings, and oil-pump service.
-
Marine cooling: Raw-water and fresh-water systems, Jabsco and Sherwood pump disassembly, impeller replacement, circulating-pump service, and cooling-flow diagrams.
-
Fuel system: Carter AFB carburetor overhaul, float and choke adjustments, fast-idle cam settings, fuel-pump testing, and symptom-based service diagnosis.
-
Electrical diagnosis: Prestolite starters with Bendix drives, battery testing, distributor inspection, alternator rectifier tests, voltage-regulator adjustments, and wiring diagrams.
-
Reverse and reduction gears: Hydraulic pressure checks, forward and reverse clutch overhaul, planetary assemblies, bearing installation, and transmission troubleshooting charts.
-
Maintenance and storage: Lubrication schedules, flame-arrestor cleaning, closed crankcase ventilation service, seasonal lay-up, and fitting-out inspections.
Written for service technicians, this manual includes internal repair and electrical testing that call for workshop measuring equipment and special tools.
Internal Engine Inspection and Assembly
Cylinder-head tightening sequences and cylinder-bore cross-hatch illustrations accompany the repair procedures. Reference data cover valve springs, camshaft bearings, piston-ring fit, and crankshaft clearances.
Hydraulic-tappet diagnosis distinguishes oil aeration from internal leakdown and sticking components, helping relate valve-train noise to the checks described. The manual warns that tappet plungers and bodies are matched parts and must not be mixed during servicing.
Cooling Configurations and Pump Limits
The supplement distinguishes the Chrysler 260 cooling arrangement from the side-mounted heat-exchanger systems used on the Chrysler 280 and 330. Their cooling-flow diagrams show the different paths through the engine, heat exchanger, oil coolers, and exhaust components.
Circulating-pump limitation: For the latter arrangement, the fresh-water circulating pump is serviced only as a complete assembly. The raw-water pump has its own disassembly and inspection coverage.
Carburetor Settings and Fuel Diagnosis
The AFB-4476SA and AFB-6130S use shared service procedures with different adjustment data. Carburetor assembly views identify the metering rods, accelerator pump, and throttle components.
Fuel-pump pressure, volume, and inlet-valve tests support diagnosis of poor fuel delivery. The service-diagnosis lists also connect poor idling, flooding, lean or rich running, and backfiring with possible fuel, ignition, and mechanical causes.
Starting, Charging, and Ignition Tests
Starter coverage extends to current-draw and ground-circuit checks, armature testing, and brush replacement. The hydrometer reading correction chart supports battery assessment.
Alternator diagnosis includes positive- and negative-rectifier testing with Tool C-3829, plus alternative test methods. Wiring and test-connection diagrams accompany the charging checks. Reversed battery polarity can damage the rectifiers and charging-system wiring.
Always adhere to standard marine shop safety protocols and battery isolation practices during electrical and mechanical service.
Transmission Variations and Workshop References
The Velvet Drive sections explain early and later pump assemblies, output-shaft designs, and oil-circulation arrangements. These distinctions help identify compatible replacement components before transmission assembly.
Transmission hydraulic-circuit diagrams and troubleshooting charts relate pressure faults to clutch, pump, valve, and cooler problems. Dimensioned assembly-tool drawings support workshop fixture preparation. Seasonal fitting-out instructions also include engine-to-propeller-shaft alignment checks after launching.
A Preview of Engine Fit and Rotor Test Data
The base M440 specifications list intake valve stem-to-guide clearance at 0.001–0.003 inch and compression-ring end gap at 0.013–0.023 inch. These are component-fitting references rather than a valve-lash setting.
For the supplement’s Prestolite ANE-type alternator, rotor resistance is specified at 3.6–3.8 ohms at 77°F, alongside grounded- and shorted-winding checks.
