Kawasaki Models Covered & Key Technical Specifications

Models: 650SX

Sub-models / Variants: 650SX (JS650-B1)

Model Year: 1991

Serial Numbers: 650SX (JS650-B1): after engine No. JF650AE029996, mixture screw caps point straight down


  • Engine displacement: 635 ml

  • Engine configuration: 2-stroke, vertical twin, crankcase reed valve, water-cooled

  • Maximum horsepower: 38.2 kW (52 PS) @ 6,000 r/min

  • Maximum torque: 64.7 N-m (47.7 ft-lb) @ 5,500 r/min

  • Bore and stroke: 76.0 x 70.0 mm

  • Compression ratio: 7.2:1

  • Carburetor: Keihin CDK38-32 (36 mm venturi)

  • Fuel tank capacity: 17.5 L (including 4.0 L reserve)

  • Dry weight: 128 kg

  • Battery: 12 V 19 Ah

Kawasaki Manual Features & Selected Content Preview

The 1991 Kawasaki JET SKI 650SX (JS650-B1) Service Manual Supplement, P/N 99924-1147-51, covers maintenance and repairs specific to this model. Complete servicing requires the separately available JET SKI X-2 base Service Manual, P/N 99924-1069-01, for procedures shared by both models.

Printable PDF with Chapter Bookmarks

Navigation and diagram detail: Embedded bookmarks open the main chapters. Use the Quick Reference Guide to locate the appendix. PDF text search is unavailable, and the small wiring labels are readable when enlarged.

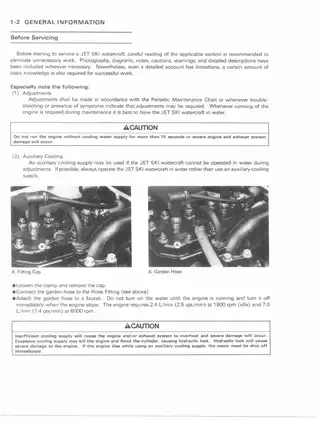

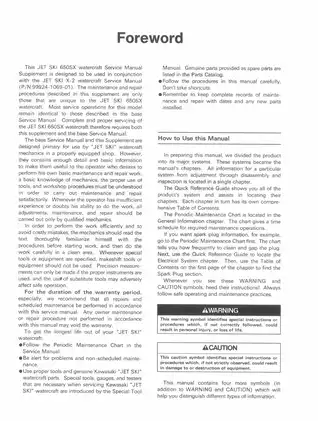

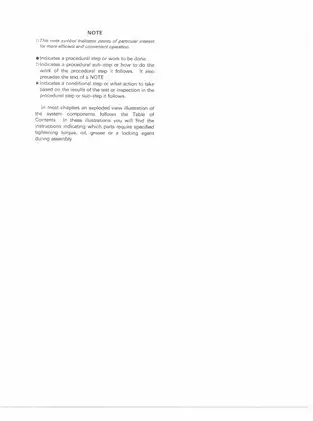

The download is one printable English PDF with 83 pages. The total includes three introductory pages for the Quick Reference Guide, foreword, and notation key, plus 80 numbered pages through the appendix.


650SX Service Changes and Workshop Procedures

These selected procedures and references show where the supplement adds to the base manual. The periodic maintenance chart and the storage notes on flame-arrester access are also included.

  • Fuel system: Step-by-step instructions for carburetor disassembly, cleaning and inspection, with reassembly notes, high-altitude adjustment, and fuel-tank, sediment-bowl, throttle-cable, and choke-cable service.
  • Engine and exhaust: Engine removal, installation changes, magneto flywheel and coupling service, crankcase assembly notes, and exhaust-manifold gasket orientation.
  • Cooling, bilge, and oil tank: Flushing procedures for both water circuits, bilge-filter removal, oil-tank mounting, and diagrams for hose and cable routing.
  • Drive shaft and jet pump: Drive-shaft holder bearing and seal installation, shaft runout inspection, pump removal differences, and steering-nozzle disassembly notes.
  • Steering and hull: Steering-cable replacement, handlebar pivot service, handle-pole and bracket removal, hull replacement, and adhesive guidance for rubber parts.
  • Electrical system: Starter-relay tests, electric-case service, CDI igniter removal and resistance data, and a color-coded wiring reference.

Kawasaki wrote the supplement primarily for JET SKI mechanics in equipped shops. Owners familiar with mechanical work, tools, and workshop procedures can also use it for basic maintenance and repairs.

Carburetor and Oil-Tank Service

The Keihin CDK38-32 section includes a fuel-system diagram and illustrations for diaphragm-needle wear and float-arm measurement. The mixture-screw notes distinguish the individual factory settings from the baseline adjustments used when those settings have been lost.

Fuel-pump notes address damage to diaphragms and castings when separating a stuck assembly. Sediment-bowl service covers drainage, removal, and O-ring inspection. Follow the manual’s fuel-system precautions when working with gasoline and cleaning solvents.

The lubrication chapter gives the oil-tank capacity and shows how the rubber damper fits. Use the base manual for oil-pump bleeding and reed-valve inspection.

Engine Installation and Drive-Shaft Alignment

Exploded views identify the crankcase, magneto flywheel, and stator. Assembly notes show the cylinder locating pins and crankshaft position ring. Use the base manual for the full crankcase splitting and internal inspection procedures.

The coupling section identifies flywheel holder 57001-1313 and coupling holder 57001-1230. Torque and locking-agent tables cover cylinder-head nuts, engine-bed mounting bolts, shaft-holder fasteners, and pump hardware.

A cross-section shows the drive-shaft holder’s bearing and seal placement. The installation notes cover coupling alignment after the engine goes back in. The pump section identifies the B1’s lack of a trim-cable connector and refers to the base manual for impeller-clearance inspection.

Cooling Flow, Steering, and Hull Work

The cooling and bilge diagram distinguishes cooling water, bilge flow, and combined exhaust and cooling-water flow. The flushing instructions address salt and sand deposits, reduced cooling-water flow, and suspected bilge blockages.

Cable-routing drawings support steering-cable replacement and handle-pole service. The hull section covers pad removal, engine-hood gasket bonding, and damper placement for the fuel tank, engine, and water box muffler.

Starter-Relay and Ignition Checks

The starter-relay inspection checks both switch return and resistance when activated. The supplement also identifies the charging-coil test connections and start/stop-switch leads and supplies a CDI internal-resistance table.

The B1 regulator/rectifier uses an orange lead in place of the white lead shown in the base procedure. That detail helps identify the correct wire during testing. The electric-case instructions specify the sealant type to avoid connector corrosion. Starter-motor components appear in an exploded view, with overhaul procedures in the base manual.

Selected Coupling Torques and Inspection Limits

The torque table distinguishes the engine coupling at 98 N·m (72 ft-lb) from the drive-shaft coupling at 39 N·m (29 ft-lb).

The drive-shaft inspection lists a runout standard of less than 0.2 mm and a service limit of 0.6 mm. The carburetor drawing shows where to measure the 1.0–2.0 mm float-arm level between the plastic tip and the carburetor case.
