2007 Evinrude E-TEC 40–60 HP Outboard Service Manual (P/N 5007209)

The 2007 Evinrude E-TEC 40–60 HP service manual, P/N 5007209, covers the listed rope-start tiller and electric-start remote-control outboards. BRP’s service information addresses installation, maintenance, system diagnosis, and mechanical repair.

Searchable Text, Bookmarks, and Wiring Detail

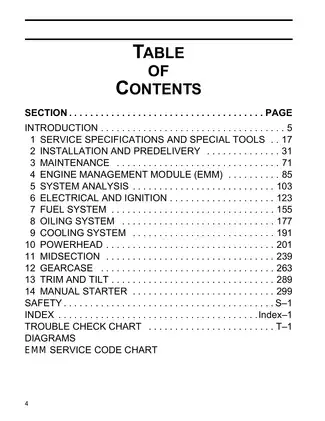

Search and diagram detail: The technical sections and appendix charts contain searchable PDF text; the two cover pages do not. Embedded bookmarks provide chapter and subsection navigation. The dense engine wiring diagram requires zooming to read small connector numbers and distinguish wire-color details.

Supplied as one printable, English-language 356-page PDF, including both covers, a 24-page safety section, an eight-page index, a six-page Trouble Check Chart, seven diagram pages, and a two-page EMM Service Code Chart.

E-TEC Diagnostics, Powerhead Repair, and Gearcase Service

The following selected service topics outline the manual’s coverage. Other subjects include corrosion protection and submerged-engine service.

• Engine management: EMM sensor operation, service-code interpretation, static and dynamic tests, TPS calibration, timing verification, and injector compensation programming.

• Electrical and ignition: Charging-system checks, ignition-coil and sensor tests, SystemCheck circuit diagnosis, electric-starter repair, connector servicing, and spark plug indexing.

• Fuel and oil systems: Fuel-pressure and inlet-vacuum tests, injector replacement, vapor-separator servicing, oil-pump output checks, and oil-system priming.

• Powerhead repair: Step-by-step removal, crankcase disassembly, cylinder and piston inspection, crankshaft assembly, installation, and post-repair checks.

• Gearcase service: Leak testing, water-pump repair, bearing and seal replacement, shift-rod adjustment, driveshaft shimming, and gearcase assembly.

• Cooling system: Water-flow diagnosis, engine-temperature checks, thermostat inspection, and pressure-relief-valve servicing.

• Midsection and starting systems: Exhaust-housing and stern-bracket service, steering-handle repair, trim-and-tilt testing, and manual-starter disassembly and assembly.

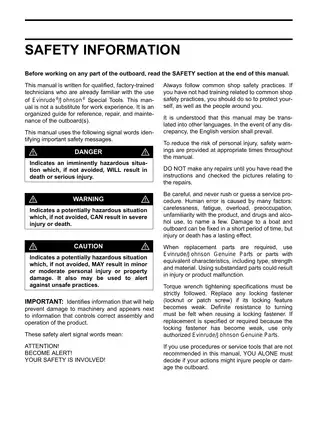

This manual is written for qualified, factory-trained technicians already familiar with Evinrude/Johnson special tools; it assumes workshop experience rather than teaching repair fundamentals.

Rigging and Predelivery Checks

The installation section documents transom preparation, outboard mounting, and cable, hose, and wire routing. Control-cable adjustments, battery connections, fuel and oil priming, and running checks support commissioning work and checks after installation.

Maintenance coverage extends to lubrication, seasonal storage, pre-season inspection, and automatic winterization. The manual distinguishes routine recreational use from operating conditions that call for more frequent inspection.

EMM Diagnosis and Software Requirements

The Evinrude Diagnostics Software procedures explain live engine monitoring, stored and persistent faults, cylinder-specific fuel and ignition tests, and engine-history reports. These references support fault isolation before suspect components are replaced; the dynamic tests allow cylinder performance to be compared when diagnosing a running problem.

Software-based work requires Evinrude Diagnostics Software and the diagnostic interface cable identified in the manual. TPS calibration, timing synchronization, replacement-injector data, and EMM transfer each have their own requirements. Internal EMM sensors are not serviceable.

Fuel Injection, Lubrication, and Cooling

Fuel-system testing separates supply restrictions, lift-pump performance, circulation-pump operation, and injector faults. Oil-system coverage follows the distribution hoses, check valves, pressure-switch feedback, and priming requirements.

Injector compensation data must match the injector and its cylinder location; incorrect installation can cause powerhead failure. Cooling coverage also traces water flow through the EMM and vapor separator, while the 60 HP material explains exhaust water-valve operation and testing.

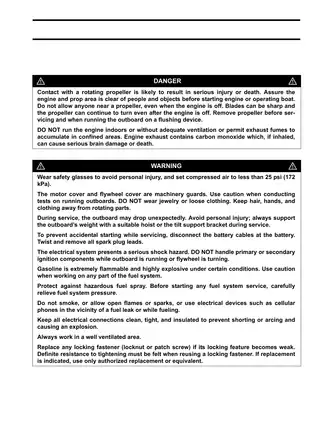

Marine electrical and fuel-system work requires attention to stored electrical energy, pressurized fuel, and ventilation; follow the manual’s task-specific safety precautions.

Mechanical Repair and Assembly References

Powerhead inspection includes cylinder taper and out-of-round checks, piston-ring measurements, and crankshaft-bearing inspection. Illustrated service charts carry component-specific torque and assembly information, supported by a Standard Torque Chart for fasteners without a separately specified torque.

Gearcase driveshaft shimming uses the listed shimming tool, P/N 393185. The assembly instructions also identify a specific repair trap: a reversed clutch dog cannot engage fully and can immediately damage itself and the gears.

Trim-and-tilt diagnosis combines motor current draw with operating-speed checks to distinguish electrical and hydraulic problems. For replacement-part ordering and parts-catalog exploded views, the manual calls for the matching Parts Catalog as a separate reference.

Wiring, Routing, and Troubleshooting Charts

Reference illustrations include the Hose Routing and Water Flow Diagram, Oiling System Electrical Diagram, Recirculation Hose Diagram, and Spark Plug Indexing Diagram. The E-TEC engine wiring diagram and Evinrude EMM Service Code Chart connect circuit identification with fault-code interpretation.

A Preview of Powerhead Dimensions and Battery Requirements

The powerhead tables list a 3.601 in. bore and 2.588 in. stroke. Piston-ring inspection specifies a 0.011–0.023 in. end gap for standard or oversize rings.

Minimum starting-battery requirements are 640 CCA (800 MCA), increasing to 800 CCA (1000 MCA) below 32°F (0°C). These requirements accompany the battery installation and electrical setup information.
