2004 Harley-Davidson XLH Models Service Manual / Electrical Diagnostics Manual

Comprehensive repair and diagnostic coverage for the 2004 Harley-Davidson XLH models, including XL 883, XL 883C, XL 1200C, and XL 1200R. PN 99484-04 & 99495-04.

4.7starstarstarstarstar_half(3)
visibility Preview Available

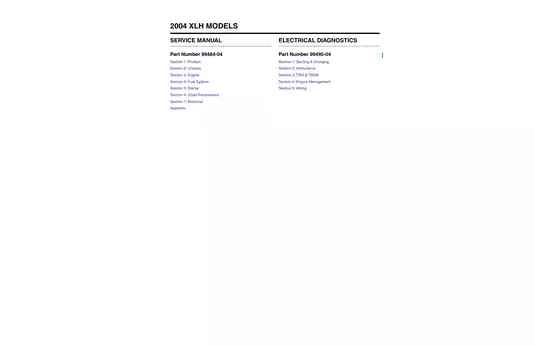

Harley-Davidson 2004 Harley-Davidson XLH Models Service Manual / Electrical Diagnostics Manual manual page preview - page 1 of 710

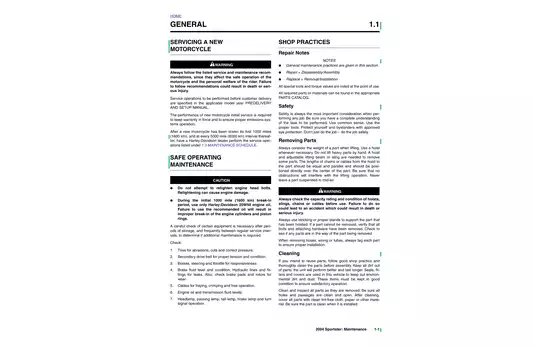

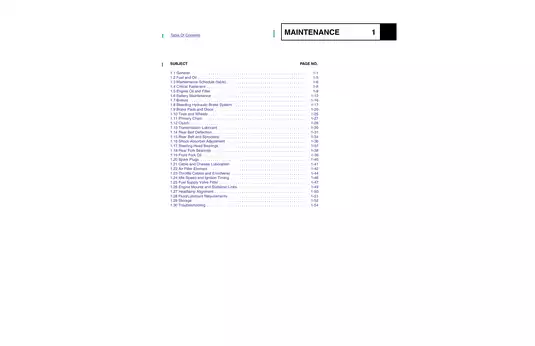

Sample pages from the 2004 Harley-Davidson XLH Models Service Manual / Electrical Diagnostics Manual manual

Harley-Davidson 2004 Harley-Davidson XLH Models Service Manual / Electrical Diagnostics Manual manual preview page 1 - thumbnail
Harley-Davidson 2004 Harley-Davidson XLH Models Service Manual / Electrical Diagnostics Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$18.05 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Harley-Davidson Models Covered & Key Technical Specifications

Models: 2004 Harley-Davidson XL 883, 2004 Harley-Davidson XL 883C Custom, 2004 Harley-Davidson XL 1200C Custom, 2004 Harley-Davidson XL 1200R Roadster
Sub-models / Variants: Custom, Roadster
Trade Names: Sportster
Build Years: 2004
Technical Data:

  • Engine oil capacity: 3.6 quarts (3.4 liters)
  • Primary chaincase/transmission capacity: 32 fluid ounces (946 ml)
  • Spark plug gap: 0.038–0.043 in. (0.96–1.09 mm)
  • Front fork oil capacity (wet): 9.0 fl. oz. (266 ml)
  • Front fork oil capacity (dry): 10.2 fl. oz. (302 ml)
  • Steering head fall-away adjustment: 1–2 in. (25–50 mm)
  • Primary chain free play (cold): 3/8–1/2 in. (9.5–12.7 mm)
  • Rear brake disc minimum thickness: 0.230 in. (5.84 mm)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
29412 / George Jackson
File Size:
29.34 MB
File Type:
PDF
Language:
English
Pages:
710
Printable:
Yes
Category:
Motorcycle
Last updated / verified
Jun 11, 2025

Harley-Davidson Manual Features & Content Preview

2004 Harley-Davidson XL Service & Electrical Manuals

  • Covers 2004 Harley-Davidson XL 883, 883C Custom, 1200C Custom, and 1200R Roadster models with comprehensive service and electrical diagnostics.
  • Official OEM publication Part No. 99484-04 (Service Manual) and Part No. 99495-04 (Electrical Diagnostics), printed September 2003.
  • Contains 47 exploded-view diagrams, 15 troubleshooting tables, 17 maintenance/specification tables, and comprehensive wiring schematics.
  • Delivered as a direct download the moment payment clears.
  • Permanent availability in your purchase account — no re-buy required.
  • Suitable for printing individual sections for shop-floor use.
  • Indexed PDF search covers every chapter and appendix.
  • This 710-page manual is the factory-authorized reference covering engine, chassis, fuel, clutch, electrical, and powertrain maintenance for the 2004 Sportster family.

Document Content Overview

The 2004 Harley-Davidson XL service manual and electrical diagnostics repository provides detailed maintenance schedules and technical data for the full Sportster lineup. It covers the complete chassis and engine maintenance, including oil change procedures, primary chain adjustments, brake system service, and suspension setup. The document also provides how factory workshop documentation is structured for specialized components like the clutch assembly, steering head bearings, and fuel supply valves. Electrical diagnostic sections detail the ignition control module (ICM) sensor inputs, starting/charging systems, and instrument troubleshooting protocols.

Technical Data Preview

Engine oil capacity for the 2004 Sportster is documented at 3.6 quarts in the fluid requirements section. Primary chain vertical free play for a cold engine is specified at 3/8–1/2 inches in the primary chain table. The maximum brake rotor lateral runout and warpage is 0.008 inches when measured near the outside diameter. This 710-page OEM factory manual is an official reference for technicians and owners covering the 2004 Harley-Davidson XL 883/1200 range, detailing engine, chassis, electrical, and maintenance specifications for the unit.

Manual FAQ, Purchase & Download Details

Which specific document identity and publication cues identify this 2004 Sportster technical reference? keyboard_arrow_down

Publication is identified by Service Manual part number 99484-04 and Electrical Diagnostics Manual part number 99495-04, containing 710 pages of technical data for the 2004 XLH model series.

Are wiring diagrams and connector pinout references included for the electrical systems? keyboard_arrow_down

Electrical Diagnostics section contains detailed references for wiring, starting, charging, instrumentation, and module systems. These sections show electrical layout data to assist with system understanding.

Is there coverage for the engine and chassis maintenance in this service manual? keyboard_arrow_down

Manual contains dedicated sections for the engine, chassis, fuel system, and drive systems, including comprehensive maintenance schedule tables.

What types of specification tables and reference charts are featured in the maintenance sections? keyboard_arrow_down

Document includes technical reference tables such as the critical fasteners torque chart, recommended engine oil viscosity requirements, and battery electrolyte antidote guidelines. These tables provide categorized data for system maintenance and fastener tightening. Additionally, the manual lists service intervals and component check parameters for various motorcycle systems.
