Ducati 1098 / 1098S Service Manual (2007)

Ducati Motor Holding service manual for the 2007 Ducati 1098 and 1098S, M.Y. 2007 edition 00. It covers scheduled maintenance, workshop diagnosis, and engine and chassis repair.

Searchable Text and Wiring Diagram Detail

Text search and diagram readability: Searchable text is available throughout the technical sections, but the file has no embedded PDF bookmarks. Small connector numbers and wire-color codes on the main wiring diagram require zooming.

The manual comes as one printable, English-language PDF with 714 pages, including six blank pages. The opening general summary carries a draft-copy marking.

Desmodromic Engine Service and DDS Diagnosis

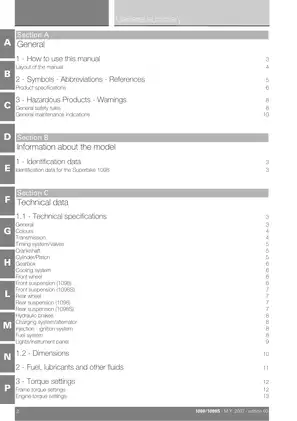

These selected topics outline the workshop coverage rather than reproduce the full contents list. Further sections include fairing removal and exhaust-valve control-cable adjustment.

• Engine repair: Step-by-step instructions for engine removal, cylinder-head and valve-gear overhaul, cylinder/piston inspection, crankcase separation, and reassembly.

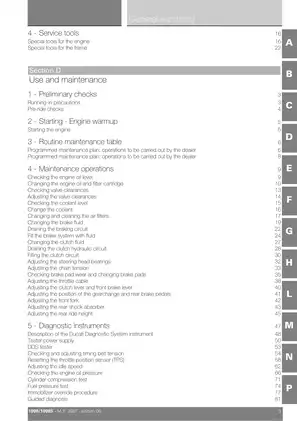

• Valve timing and belts: Desmodromic opening and closing clearance adjustment, camshaft timing checks, timing-belt replacement, and DDS optical belt-tension measurement.

• Clutch and gearbox: Dry multi-plate clutch inspection, primary-drive backlash checks, gearbox overhaul, selector inspection, and shaft and selector-drum shimming.

• DDS testing: Guided diagnosis, throttle position sensor (TPS) reset, cylinder synchronization, and engine oil-pressure, fuel-pressure, and compression tests.

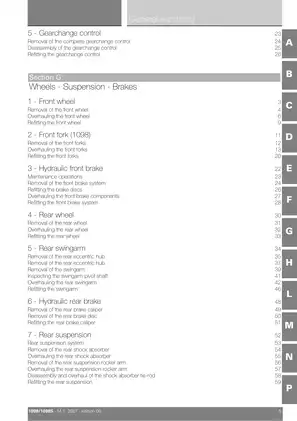

• Chassis and hydraulics: Showa fork overhaul, steering-bearing service, swingarm removal, and bleeding procedures for the Brembo brakes and hydraulic clutch.

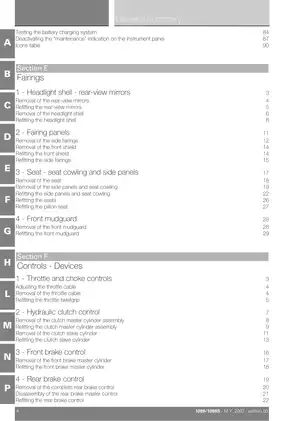

• Electrical troubleshooting: Wiring diagram, connector references, wire-color legend, fusebox layouts, harness-routing plates, and starting- and charging-system checks.

• Immobilizer and instruments: Transponder programming, coded immobilizer recovery, dashboard fault tables, service-indicator reset, and 1098S USB Data Acquisition functions.

Written for technical personnel at Ducati Authorized Service Centers, this manual assumes experienced, skilled technicians working with the specified tools and diagnostic equipment.

Engine Inspection, Timing and Lubrication

Internal engine coverage extends to camshaft and rocker-arm inspection, valve-guide and seat work, connecting-rod bearing selection, and crankshaft inspection. Torque tables distinguish staged cylinder-head tightening from other fasteners, while the service-tool section identifies equipment such as cylinder-head nut wrench 88713.2676.

Timing and valve assembly: The manual covers camshaft holding tools and closing-shim half-ring seating before clearance rechecks. It warns that reusing self-locking timing-pulley nuts can allow them to loosen and cause serious engine damage.

Oil-pump disassembly and bypass-valve inspection accompany oil-cooler service. Water-pump bearing and mechanical-seal replacement are illustrated with sectional views; radiator, fan, and coolant-hose removal and refitting are covered separately.

DDS, Fuel Injection and Electrical Fault Tracing

The Magneti Marelli I.A.W. 5AM2 ECU and instrument panel communicate over the CAN line. Component descriptions explain sensor inputs and their relationship to injection and ignition control, with DDS display views for fault retrieval, active tests, and adjustments.

Having the factory tolerances and DDS procedures together supports workshop diagnosis and repair planning. For example, the oil-pressure and warning-switch checks help distinguish a lubrication problem from an electrical indication fault.

Reference drawings: The main wiring diagram identifies ECU connections and circuit color codes. Frame wiring-routing plates locate harness branches and retaining points, while the cylinder-synchronization graphs illustrate comparison of the two intake readings.

Immobilizer recovery uses the electronic code associated with the Code Card. The instrument section also explains the key-programming requirement after instrument-panel replacement.

Suspension Coverage and Assembly-Service Limits

The detailed front-fork overhaul chapter applies to the 1098 Showa fork. The 1098S Öhlins FG315 is covered by specifications and adjustment information; a separate Öhlins internal-overhaul procedure is not included.

Swingarm service includes bearing replacement and pivot inspection. The rear eccentric hub is treated as a complete replacement assembly, with internal overhaul expressly prohibited. Brake and clutch hydraulic sections likewise identify restrictions on internal caliper and cylinder servicing.

Steel trellis frame and rear-subframe dimensional drawings support chassis inspection. An engine-removal flowchart links prerequisite component removal to the relevant manual sections.

Before starting any teardown, ensure the workspace is properly ventilated and follow shop safety procedures, especially around brake fluid and pressurized cooling systems.

Selected Inspection and Electrical Specifications

Crankshaft inspection lists a main-bearing-journal alignment service limit of 0.01 mm on diameter, alongside ovality and taper checks.

The ignition specifications give an electrode gap of 0.6–0.7 mm for NGK MAR10A-J spark plugs. For charging-system diagnosis, the multimeter check specifies 14.5 V ±0.5 V across the battery terminals at 3,000 rpm.
