Ducati Superbike 999 R (2006) Workshop Manual

Ducati Motor Holding’s 999R workshop manual combines the M.Y. 2006, Edition 00 update with the unchanged M.Y. 2005 workshop sections it references. This is model-specific 999R documentation, with identification information for European and U.S. versions.

Searchable PDF with Workshop Bookmarks

Text and diagram access: The PDF has searchable text and embedded bookmarks for workshop sections and individual procedures. Small pin numbers and wire-color codes on the wiring diagrams require zooming.

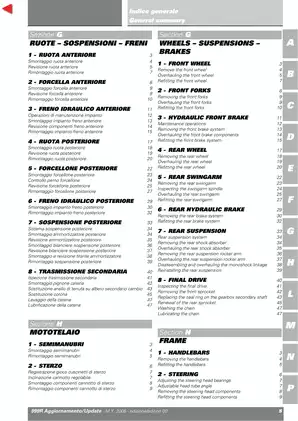

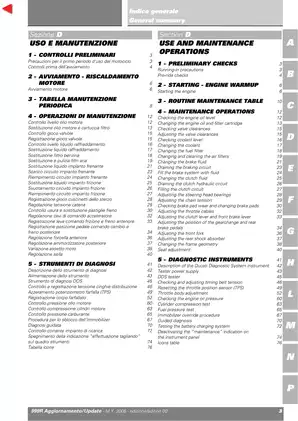

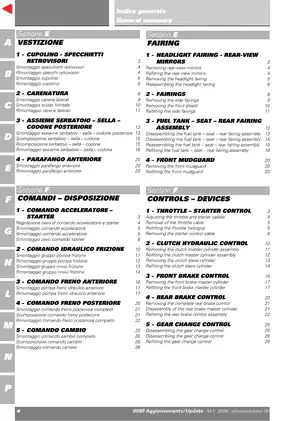

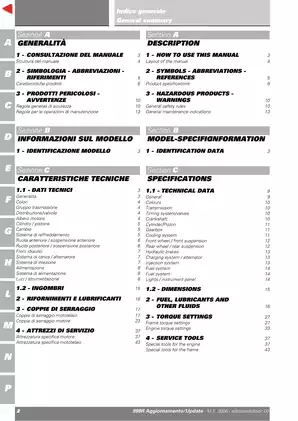

One printable, Italian/English PDF contains 606 pages, including the opening summary (10 pages), section title pages (12 pages), subject index (10 pages), and seven blank separator pages.

Testastretta Repair, Chassis Service and DDS Diagnosis

The following is a selection of the documented work, rather than a complete contents list. Further topics include fairing removal and headlight aiming.

• Engine and timing: Engine removal, valve-clearance adjustment, timing-belt and pulley service, cylinder-head overhaul, and cylinder/piston inspection.

• Clutch and gearbox: Dry-clutch and primary-drive service, gear-selector and shaft repair, crankcase separation, main-bearing replacement, shaft shimming, and connecting-rod overhaul.

• Lubrication and cooling: Oil-pump inspection, oil-cooler service, radiator removal, thermostat checks, and coolant-pump disassembly and reassembly.

• Brakes and chassis: Hydraulic bleeding, wheel and swingarm service, suspension-linkage repair, steering-head bearings, adjustable geometry, frame inspection, and final-drive work.

• DDS procedures: Belt-tension measurement, TPS reset, throttle-body adjustment, oil- and fuel-pressure tests, cylinder compression, charging checks, and maintenance-indicator reset.

• Fuel and ignition: Marelli CPU 5AM2 engine management, ECU sensors and CAN communication, airbox/throttle-body service, and catalytic-exhaust removal and refitting.

• Electrical references: Wiring diagrams, harness-routing plates, connector pinouts, starting-system checks, instrumentation, and immobilizer/transponder programming.

Written for Ducati Authorized Service Centres and workshop personnel, this manual requires senior skilled technicians with the technical background assumed by the procedures.

Engine Inspection and Internal Repair

Step-by-step cylinder-head teardown and reassembly procedures are supported by camshaft, valve and rocker-arm inspections, valve-lift measurements, and timing checks. Cylinder/piston classes and matching criteria support component selection.

Internal repair references include crankshaft and connecting-rod inspection limits, gearbox end float and selector limits, and shaft-shimming calculations. Exploded assembly views identify components not shown beside the procedure text.

Timing and crankcase cautions: The timing chapter explains how reused belts retain their cylinder and rotation assignments, and warns that reused pulley ring nuts can loosen and cause serious engine damage. Crankcase reassembly includes cautions about timing-layshaft seal damage, misplaced gearbox-bearing inner races, and incorrect shimming.

Engine and frame torque tables identify safety-critical fasteners and the associated threadlocking, sealing, grease, and lubrication requirements.

Oil Pump and Cooling-System Service

Oil-pump overhaul includes gear backlash, radial-play and end-float checks. Cooling-system procedures reach thermostat inspection and coolant-pump bearing and mechanical-seal replacement; the manual also distinguishes the illustrated radiator and oil-cooler arrangements.

Öhlins Suspension, Brembo Brakes and Frame Checks

The specifications identify the Öhlins FG315 front fork and DU326 rear shock. External adjustment and removal/refitting are documented, but internal fork and shock rebuilds are not provided; functional problems are referred to an authorized Öhlins Service Centre.

Brake wear data accompany Brembo system service. The hydraulic chapters advise against internal servicing of brake calipers and brake/clutch master cylinders or the clutch slave cylinder, distinguishing permitted component replacement from internal overhaul.

Frame drawings support dimensional checks of the main frame and rear subframe. Suspension setup, wheel and swingarm inspection limits, fluid capacities, and approved service products accompany the relevant chassis procedures.

DDS Tests and Required Workshop Equipment

DDS functions include stored-fault retrieval and clearing, live engine parameters, active fuel-pump/coil/injector tests, road-test data recording, and external-sensor measurements. These references connect ECU fault information with component and pressure checks, helping a workshop select further tests before replacing parts.

Throttle-body procedures cover airflow balancing and CO adjustment, but CO adjustment is not available on U.S. models. The diagnostic chapters also describe immobilizer override using the security code.

The tool references identify DDS kit 97900.0215, timing/TDC tools, valve-lift gauges, rocker and crankcase tools, and swingarm/steering-bearing installers.

Injection, Throttle Body and Catalytic Exhaust

Engine-management material explains sequential injection, inductive ignition, injector operation, and the injection relay. Sensor references cover throttle position, rpm/timing, coolant and intake-air temperature, and barometric-pressure information shared over CAN.

A failed TPS requires throttle-body replacement and a DDS reset because the sensor is not serviced separately. ECU replacement also requires TPS reset. Exhaust coverage explains the Testastretta catalytic system and asymmetrical single-silencer layout.

Wiring, Starting and Immobilizer References

The main wiring diagram is separate from Routing of Wiring on Frame, Plates A–Y, which shows harness placement and cable ties. Other references include the Fuel Circuit and Air Circuit diagrams, engine-removal disassembly-sequence chart, timing/pulley illustrations, and instrument-panel Connector Pinout.

Electrical chapters provide battery/alternator data, fuse ratings, multimeter checks, starting-interlock information, instrument functions, and immobilizer programming checks.

Fuel-system work, brake and clutch hydraulics, the pressurized cooling system, timing work, engine teardown, and electrical diagnosis require appropriate workshop equipment and specified tools. Ducati also warns about automatic radiator-fan operation and damage from mishandled brake fluid or hot coolant.

Compression and Spark-Plug Specification Preview

For the DDS compression test with a warmed engine and fully open throttles, the manual lists 9–11 bar as standard, 8 bar as the minimum, and 2 bar as the maximum permissible difference between cylinders.

The ignition specifications list a 0.7–0.8 mm electrode gap for Champion RG59V spark plugs.
