Honda TRX300EX (300EX) ATV Service Manual, 1993–2000 (P/N 61HM307)

209 Pages • Printable PDF • 22.38 MB • Download

4.7starstarstarstarstar_half(3)
$15.50 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Honda Models Covered & Key Technical Specifications

Models: 300EX, TRX300EX

Model Years: 1993–2000 (1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000)


  • Engine displacement: 281.7 cc

  • Engine type: Single cylinder 20° inclined, overhead camshaft, 4-stroke

  • Transmission: 5-speeds and reverse, constant mesh

  • Fuel system: Piston valve type carburetor (29.0 mm venturi diameter)

  • Cooling system: Air cooled

  • Drive system: Chain drive

  • Ignition system: CDI

  • Weight: 171 kg dry weight

Honda Manual Features & Selected Content Preview

This Honda TRX300EX (300EX) service manual covers the 1993–2000 sport ATV, with model-specific maintenance, troubleshooting, and repair procedures. The printed manual is identified as P/N 61HM307. It is designed for use with Honda’s separate Common Service Manual, which supplies basic workshop procedures and is not included.

Printable PDF with Chapter Bookmarks

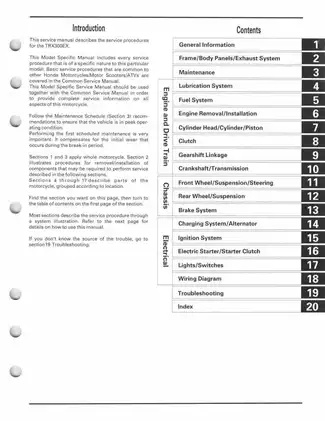

Navigation and wiring detail: Embedded PDF bookmarks open the contents and all 20 numbered sections. The service text is not searchable. Small wire-color codes and connector labels in the main wiring diagram require zooming.

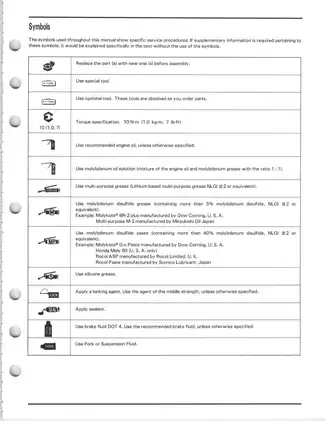

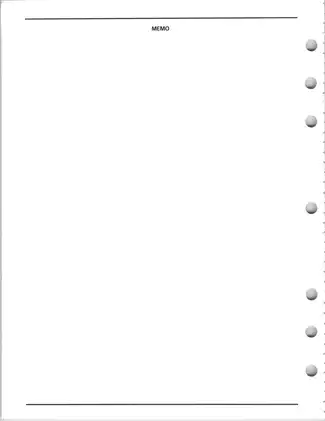

One printable, 209-page PDF contains the 208-page manual and one added cover page. Ten memo pages are already included in that total.


Engine, Drivetrain, and Electrical Service

These selected coverage highlights show the main workshop areas rather than the complete contents. Additional topics include spark arrester cleaning and body-panel, fuel-tank, and exhaust-system removal.

  • Maintenance and lubrication: Maintenance schedules, valve-clearance adjustment, oil-filter replacement, drive-chain adjustment, and oil-pump removal, disassembly, and assembly.

  • Engine repair: Engine removal and installation, cylinder-head and rocker-arm disassembly, camshaft installation, and cylinder, piston, and piston-ring replacement.

  • Carburetor service: Removal and disassembly, throttle-valve synchronization, pilot-screw adjustment, and U.S.-specific high-altitude settings.

  • Clutch and transmission: Wet-clutch replacement, primary drive gear service, gearshift linkage repair, crankcase separation, and mainshaft, countershaft, and reverse-gear assembly.

  • Suspension and steering: Wheel-hub service, shock spring removal, tie-rod and steering-shaft removal, suspension-arm bearing replacement, and swingarm service.

  • Hydraulic brakes: Front and rear pad replacement, caliper and master-cylinder disassembly, parking-brake adjustment, and brake-system troubleshooting.

  • Electrical diagnosis: Charging and ignition tests, starter-circuit troubleshooting, starter-motor disassembly, starter-clutch replacement, lighting service, and wiring diagrams.

This manual is suited to mechanically qualified owners and technicians with the proper tools and service data; the maintenance schedule reserves certain safety-related work for an authorized Honda dealer.

Planning Engine and Drivetrain Work

The engine-service information distinguishes work that can be performed with the engine in the frame from jobs requiring engine removal. Crankshaft, balancer, and internal transmission work requires removal and crankcase separation, helping you assess the scope of a repair before teardown.

Exploded assembly views pair numbered callouts with removal tables, prerequisite work, torque specifications, and assembly notes. Step-by-step instructions supplement the illustrations where more explanation is needed. Transmission documentation identifies gear positions, shift-fork orientation, snap-ring placement, and bushing oil-hole alignment.

Camshaft and lubrication: The camshaft instructions cover timing-mark alignment and tensioner handling, identifying tensioner stopper 07NMG-MY90100. The Lubrication System Diagram traces oil delivery to the engine and transmission, while separate tables identify lubrication and sealant application points.

The primary drive gear lock nut has left-hand threads; incorrect removal or unstaking can damage the crankshaft threads. The oil-filter replacement instructions also warn that installing the filter backward causes engine damage.

Carburetor Adjustment and Running Problems

The synchronization procedure addresses the relationship between the butterfly and piston throttle valves within the carburetor. The U.S. pilot-screw section describes the idle-drop method, while the high-altitude section identifies the corresponding jetting changes and operating restrictions.

Troubleshooting charts connect hard starting, rough idle, poor high-speed performance, and power loss with checks of fuel delivery, spark, compression, valve timing, and intake leaks. These charts provide a structured way to narrow the fault before choosing a repair procedure.

Chassis Service and Electrical Fault Tracing

Suspension instructions show tie-rod positioning, spherical-bearing replacement, axle lock-nut handling, and swingarm pivot-bearing replacement. Rear-shock disassembly covers the spring and complete damper assembly. Brake illustrations identify piston seals, boots, parking-brake components, and master-cylinder assembly details.

Circuit references: Separate charging, ignition, and electric-starter system diagrams accompany their diagnostic sections. Cable & Harness Routing drawings show physical cable and wire paths, while the full Wiring Diagram includes wire-color identification and switch-continuity charts.

Starter diagnosis distinguishes a motor that will not turn, slow cranking, and a motor that turns without cranking the engine. Ignition testing includes the control module’s circuit checks and timing inspection; ignition timing is factory-set and is not adjustable.

Before starting work, review the manual’s handling precautions, especially those concerning flammable fuel and pressurized nitrogen shock absorbers.

Sample Valve, Fuel, and Starter Specifications

The valve-clearance specification is 0.10 ± 0.02 mm for both intake and exhaust with the engine below 35°C/95°F. The cylinder-head warpage service limit is 0.10 mm.

Fuel-system reference data lists an 8.5-liter fuel-tank capacity.

The starter-motor specification distinguishes the standard brush length of 12.5 mm from the 9.0 mm service limit.
