1984–1986 Kawasaki KLR600 (KL600-A1) Service & Repair Manual (P/N 99924-1050-01)

Factory service and repair information for the 1984–1986 Kawasaki KLR600, with KL600-A1 US and European model identification. Kawasaki publication P/N 99924-1050-01 covers the liquid-cooled DOHC engine and chassis, with market-specific service data.

• Engine top end: Cylinder-head service, valve-seat repair, camshaft timing, valve-clearance adjustment charts and Kawasaki Automatic Compression Release (KACR) inspection.

• Bottom end and transmission: Engine removal, crankcase splitting, transmission inspection, clutch service, primary kick starter assembly and balancer chain timing.

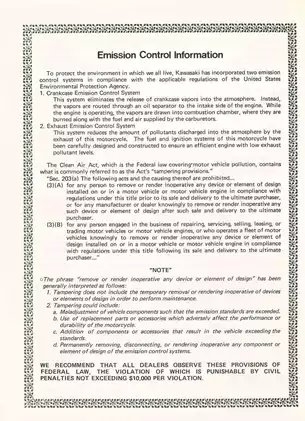

• Fuel and emissions: Keihin CVK40 carburetor disassembly, fuel-level adjustment, US high-altitude jetting and California evaporative emission control system inspections.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump mechanical seal replacement, oil-pressure measurement and oil-pump service.

• Chassis and brakes: Pneumatic telescopic fork service, Uni-Trak linkage inspection, steering-bearing replacement, drive-chain adjustment and front and rear brake repair.

• Electrical diagnosis: Wiring diagrams, CDI and ignition-coil tests, charging-system checks, safety-interlock inspection and radiator-fan troubleshooting.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports basic owner maintenance and repair when the owner has sufficient mechanical knowledge and suitable tools.

Valve Timing, Crankcase Work and Service References

Valve-clearance charts relate measured clearance and existing shim thickness to replacement shim selection. Camshaft gear and chain-timing illustrations accompany the top-end procedures, while KACR checks distinguish failure to release compression during starting from unwanted release while running.

The camshaft section explains why installing a matched bearing cap in the wrong position can cause camshaft seizure. Crankcase and engine-side disassembly flowcharts show access to the clutch, primary kick starter and balancer mechanism.

Crankshaft maintenance covers connecting-rod play, bearing condition and alignment. Internal crankshaft disassembly and reassembly require a shop equipped for precision work; the manual recommends assembly replacement rather than routine component replacement.

General information covers maintenance intervals and bolt-tightening sequences. The Periodic Maintenance Chart, Standard Torque Table and engine lubrication system diagram provide reference material alongside the repair procedures.

Carburetor, Water Pump and Oil-Pressure Checks

Market-specific carburetor tables distinguish jet and needle combinations. Fuel-level inspection uses Fuel Level Gauge 57001-1017, and the California emissions section covers canister condition and liquid/vapor separator testing.

Water-pump coverage includes mechanical seal replacement and impeller shim selection. Its assembly cautions explain how excess sealant can block the drain passage and allow coolant to contaminate the engine oil.

Oil-pressure testing separates cold-engine relief-valve checks from measurements at normal operating temperature.

Fork, Uni-Trak and Brake Service

Fork procedures distinguish oil-change quantities from filling after complete disassembly and cover guide-bushing and oil-seal replacement. Uni-Trak service extends to sleeve wear, needle-bearing inspection and linkage lubrication.

Rear-shock disassembly covers spring removal. The nitrogen-filled damper is not intended for internal disassembly.

Brake procedures cover caliper and master-cylinder assembly, hydraulic bleeding, rear brake cam adjustment and disc runout inspection. Follow the manual's precautions for brake work, engine support and the pressurized rear shock, and consult a qualified technician when the work exceeds your experience.

CDI, Charging and Starting-Fault Diagnosis

The Ignition System schematic and switch-continuity tables connect side-stand, clutch and neutral-switch operation to starting faults. These references help distinguish an interlock-related loss of spark from an ignition-component fault.

The Charging System Wiring Diagram and Cooling Fan System Circuit accompany regulator/rectifier, relay and switch tests. Ignition-coil resistance checks have a documented limitation: an ohmmeter cannot detect every insulation fault that appears under high voltage.

The Troubleshooting Guide also addresses poor running, overheating, shifting problems and abnormal noise.

A Preview of Engine Inspection and Cooling Data

These examples represent a small selection of the manual's inspection limits and cooling specifications.

Crankshaft runout standards are 0.03 mm at sprocket measuring point A and 0.04 mm at ball-bearing point B, with a 0.10 mm service limit. The cylinder-head warp service limit is 0.05 mm.

Cooling-system data specifies 1.2 L total coolant with the reserve tank at the FULL mark. The thermostat inspection gives a valve-opening temperature range of 69.5–72.5°C.

PDF Navigation, Readability and Page Count

Text search and diagram detail: The PDF is partially searchable through its existing OCR layer and includes chapter bookmarks. Some pages require rotation for reading. Small labels in the main wiring diagram need magnification, and some fine lettering remains difficult to read.

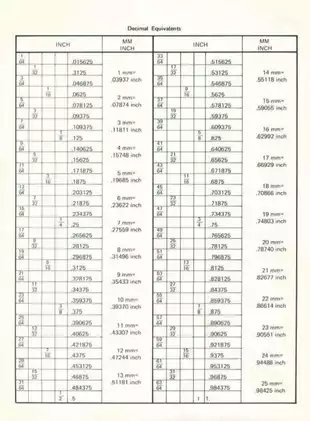

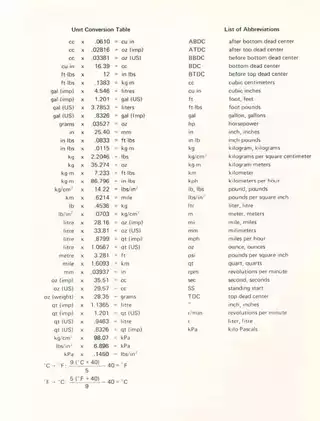

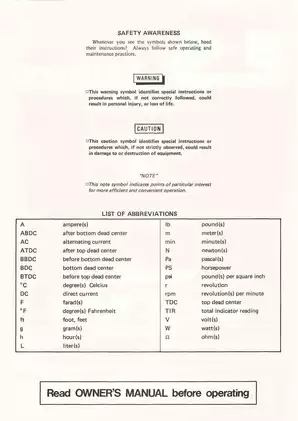

One printable, English-language 171-page PDF, including the front and back covers, introductory material and two conversion-reference pages. All of these pages are included in the total.
