Honda TRX200 1984 ATV Service Manual (P/N 61VM500)

Built for the 1984 Honda TRX200, this official Honda shop manual covers the 192 cc air-cooled four-stroke single and the ATV's fuel, engine, drivetrain, chassis, brake, and electrical systems. It is suited to experienced mechanics and owners already comfortable with standard workshop practice, since Honda notes that routine shop procedures and safety fundamentals are not explained in detail.

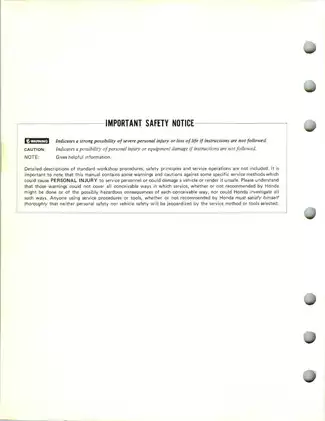

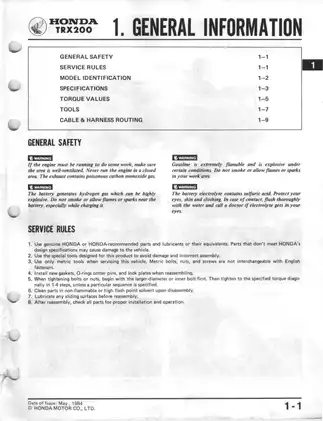

Before engine, brake, steering, or suspension work, support the ATV securely and use suitable eye and skin protection when handling fuel, brake fluid, battery electrolyte, or preloaded springs.

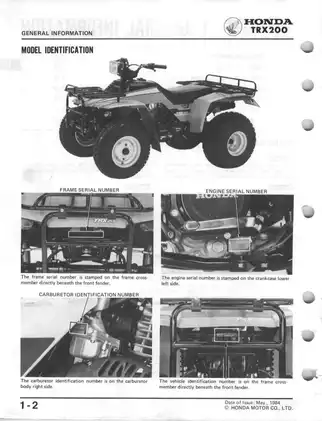

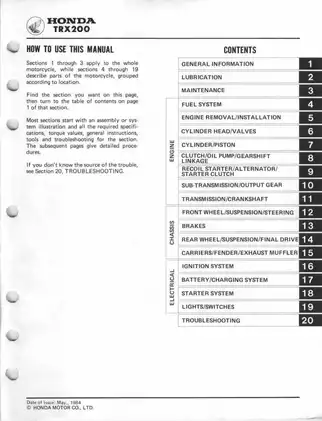

• Coverage: 1984 Honda TRX200 only; a 277-page PDF carrying Honda cover code 61VM500, dated May 1984 and incorporating two revised pages dated October 1984 and October 1985.
• Documents engine removal and installation, in-frame camshaft service, cylinder-head and valve disassembly, valve-guide replacement and seat refacing, cylinder/piston inspection, timing, and assembly.
• Explains centrifugal and manual clutch overhaul, oil-pump service, gearshift-linkage repair, main-transmission and crankshaft teardown, and high/low/reverse sub-transmission work.
• Follows output-gear, driveshaft-damper, universal-joint, ring-and-pinion, rear-axle, swingarm, shock, and tire repair procedures.
• Covers handlebar, front-wheel, kingpin/knuckle, front-arm bushing, steering-stem, shock-spring, and toe-in alignment work.
• Details PD55B carburetor overhaul and high-altitude adjustment, hydraulic front-drum brake bleeding and cylinder service, and mechanical rear-drum brake overhaul.
• Supplies CDI ignition, charging, starter, relay, switch, and lighting tests, backed by circuit schematics, a full wiring diagram, and symptom-based fault charts.

Engine and Drivetrain Repair

The engine chapters go well beyond tune-up work. Honda separates jobs that can be handled with the engine in the frame from those that require removal: the camshaft can be serviced in-frame, while cylinder-head and valve work requires the engine to come out. Inspection tables cover the camshaft, rocker arms, valves and guides, cylinder, piston, rings, crankshaft, bearings, gears, clutch parts, and oil pump. The fuel chapter adds float and jet service, pilot-screw setup, high-altitude jetting adjustment, and the factory return-to-standard warning.

The five-speed constant-mesh gearbox is only one part of the drivetrain coverage. A dedicated section handles the separate high/low/reverse sub-transmission, including its shift drum, fork, gearsets, bearings, and output-gear case. Main-transmission and crankshaft repair requires crankcase separation, and the manual identifies the assemblies that must come off first. Final-drive work covers bearing and seal replacement, pinion and ring-gear assembly, spacer selection, tooth-contact pattern, backlash, preload, and post-assembly oil filling.

Chassis, Brakes, and Electrical Diagnosis

The front brake is a hydraulic drum system with a master cylinder, wheel cylinders, adjusters, shoes, and drums; the rear uses a cable-operated drum and parking-brake linkage. The manual covers fluid replacement and air bleeding, cylinder and cup inspection, drum and lining limits, adjustment, and final checks. Steering and suspension chapters add ball joints, arm hinges, bushings, steering-head bearings, front and rear shock-spring service, swingarm work, wheel bearings, axle inspection, alignment, and tire repair.

Electrical coverage runs from the ignition coil, CDI unit, pulse generator, and timing checks through alternator output, regulator/rectifier testing, battery charging, starter brushes and armature, starter and inhibitor relays, switches, and lamps. Named visual references include cable-and-harness routing drawings, a CDI component-location and circuit view, the battery/charging schematic, the starter/inhibitor-relay circuit, the full vehicle wiring diagram, and final-drive tooth-contact pattern views. Section 20 adds decision charts for no-start, loss of power, low- and high-speed performance, and poor handling.

Factory Data, Tools, and Repair Cautions

Each service section opens with the related specifications, torque values, special tools, and troubleshooting. The tables cover component-specific fasteners, lubrication and fluid capacities, inspection limits, wear dimensions, running clearances, brake limits, wheel alignment, gear backlash and preload, and electrical test values. Tool references include the front shock compressor adapter 07967-VM50100, kingpin driver 07965-VM50000, propeller-shaft tools 07967-9690100/07967-9690200, and front-wheel alignment attachment 07910-MG30200.

The cylinder-head procedure calls out the camshaft oil-control orifice and its O-rings and dowels; a blocked passage or missed seal can starve the camshaft and rocker gear of oil. The sub-transmission lever must be indexed to the specified high and reverse positions during removal and installation, because the wrong position can damage the unit.
