2002–2005 Yamaha WaveRunner XLT800 PWC Service Manual (P/N F1F-28197-ZD-C1)

Yamaha’s WaveRunner XLT800 service manual for 2002–2005 models, P/N F1F-28197-ZD-C1, 1st Edition, covers maintenance, troubleshooting, and repair of the two-stroke twin-cylinder watercraft with variable oil injection.

Searchable Text, Chapter Bookmarks, and PDF Details

Search and diagram access: Searchable text and embedded chapter bookmarks are included. The English bookmarks open the relevant section starts; the other language groups share those destinations. Small wiring-color and connector labels require zooming.

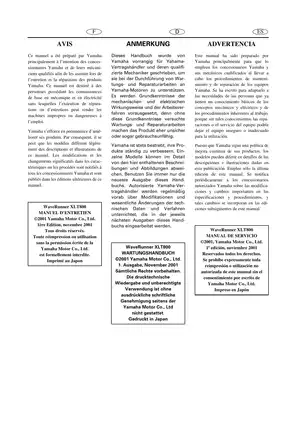

One printable PDF contains 499 pages in English, French, German, and Spanish. The total includes both covers, 12 preliminary pages, and one blank page.

Engine, Jet Pump, and Electrical Service

The following selected service topics outline the manual’s coverage rather than reproduce its full contents. Additional subjects include seat-lock inspection and graphic removal and installation.

• Periodic service and controls: Maintenance interval charts, steering master inspection, and adjustment procedures for steering, throttle, choke, shift, QSTS, and YPVS cables.

• Fuel and oil injection: Step-by-step carburetor disassembly and synchronization, fuel pump inspection, oil pump cable adjustment, and oil injection pump air bleeding.

• Power unit repair: Engine removal, cylinder and piston inspection, crankcase assembly, crankshaft checks, flywheel magneto service, and starter clutch inspection.

• Jet pump service: Impeller and drive shaft removal, bearing and oil seal replacement, reverse gate assembly, and intermediate housing installation.

• Electrical diagnosis: Ignition and charging tests, starter motor disassembly, YPVS servomotor checks, multifunction meter testing, and system-specific wiring diagrams.

• Hull and hood: Handlebar and steering master disassembly, remote control cable replacement, front hood removal, exhaust system inspection, and hull repair procedures.

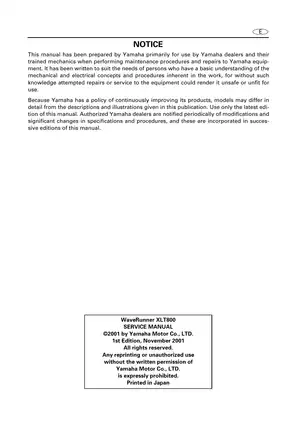

Yamaha prepared this manual primarily for its dealers and trained mechanics, with an understanding of mechanical and electrical concepts and service procedures assumed.

Workshop Reference and Fault Tracing

Exploded diagrams break down part identification and assembly sequences, with accompanying removal and installation charts and component-specific service points. Maintenance schedules, tolerance charts, and tightening specifications support inspection and repair planning.

The Trouble Analysis chart connects symptoms such as rough idling, overheating, poor battery charging, loose steering, and increased bilge water with the assemblies and reference chapters to check.

Carburetor and Oil Injection Service

Carburetor coverage extends to diaphragms, accelerator pump components, metering-arm height, needle valves and seats, and high- and low-speed adjusting screws. Separate procedures distinguish throttle synchronization from trolling-speed adjustment.

The oil injection section covers hose and check-valve inspection as well as pump bleeding. It warns that air remaining after the oil tank runs empty can interrupt lubrication and cause engine damage.

Internal Engine Inspection and YPVS

Cylinder and piston combination tables match cylinder-size markings to piston color codes. Reed-valve service includes bending and stopper-height checks, while crankshaft inspection covers deflection, connecting-rod clearances, bearings, and oil seals.

Starter clutch assembly drawings and flywheel service points identify the relevant components and special tools. YPVS valve inspection includes a warning that sharp carbon-removal tools can scratch the valve surfaces.

Jet Pump Bearings and Coupling Alignment

The drive shaft and bearing procedures identify press operations and dedicated tools, including drive shaft holder YB-06151 / 90890-06519. Intermediate housing service includes oil seal installation depths and a shim-selection table.

Engine installation also includes coupling-clearance checks and shim positioning, allowing alignment to be assessed after removal.

Ignition, Starting, and Instrument Tests

Electrical analysis distinguishes resistance checks from peak-voltage measurements and identifies the required adapter and test harness. Ignition, starting, charging, YPVS, and indication-system wiring diagrams accompany the related tests; a full-color XLT800 wiring diagram is also included.

Multifunction meter coverage includes its display test, fuel and oil level indications, overheat warning, and speed-sensor output checks. The YPVS servomotor is a sealed replacement unit; internal disassembly is not covered.

Observe the manual’s battery-disconnection and fuel-handling warnings, particularly during spark-producing ignition tests.

Hull Repair and Body Components

Cable and hose routing views support work around the steering console, fuel system, and electrical box. Exhaust coverage includes the water lock, resonator, hoses, and water tank.

Hull procedures address scratches, cracks, punctures, and insert nuts. For crack, puncture, and insert-nut repairs, the text also directs the reader to the separate Watercraft FRP Repair Manual, which is not included in this download.

Selected Trolling-Speed, Head-Bolt, and Ignition Data

Carburetor service specifies a trolling speed of 1,300 ± 50 r/min, checked with the engine warmed up and the watercraft in the water.

The cylinder-head torque table specifies 15 N·m for the first stage and 38 N·m for the second stage on the M8 head bolts, alongside a separate tightening-sequence illustration.

Ignition inspection lists a secondary-coil resistance of 14.3–30.5 kΩ, measured between the two spark plug caps at 20°C (68°F).
