1999–2001 Suzuki GSX600F Factory Service Manual (P/N 99500-35070-01E, 99500-35070-03E)

• Model and document coverage: This 372-page PDF combines the GSX600FW (1998 model) base service manual with factory specification and service-data sections for the GSX600FX/Y (1999/2000) and GSX600FK1 (2001). The later variants use the base repair procedures together with their model-specific data and change information.
• Engine and transmission repair: Covers engine removal and installation, disassembly and reassembly, camshaft and cylinder-head work, valve and guide inspection, cylinder and piston service, clutch repair, starter clutch and signal generator service, gearshift linkage, and crankcase, transmission, crankshaft, and connecting-rod work.
• Fuel and carburetor service: Details the tank, vacuum fuel valve, filter, and fuel-level gauge plus the four Mikuni BSR32SS carburetors, including operating circuits, disassembly, cleaning, reassembly, fuel-level adjustment, and synchronization.
• Chassis and brake work: Includes fairing removal, wheel and bearing service, front-fork overhaul and setup, steering-stem service, swingarm and linkage inspection, rear-suspension checks, caliper and master-cylinder repair, brake bleeding, and tire and wheel procedures.
• Electrical diagnosis: Provides component locations, troubleshooting, and tests for the generator and IC regulator, starter and side-stand ignition interlock, digital ignition, signal generator, ignition coils, combination meter, lighting, relays, switches, and battery.
• Wiring, emissions, and workshop data: Supplies four market-code wiring diagrams, harness and hose routing views, California E-33 evaporative and PAIR-system material, indexed Suzuki special tools, torque tables, wear limits, clearances, capacities, and electrical test specifications. The K1 section also identifies added lower-crankcase gasket washers.

Factory Manual Coverage and Structure

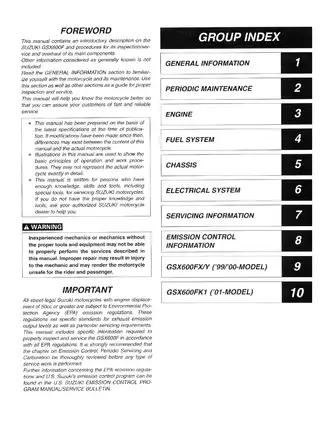

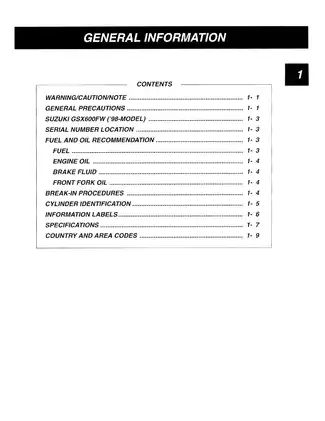

Suzuki organized this publication around the GSX600FW (1998 model) base manual. Its main chapters contain the inspection, service, diagnosis, and overhaul procedures used for the later motorcycles. Section 9 adds GSX600FX/Y (1999/2000) specifications and service data, while Section 10 covers GSX600FK1 (2001) data and the lower-crankcase gasket-washer change. This matters when selecting repair information: the 1999–2001 sections update the underlying 1998 manual rather than duplicating every workshop procedure.

The covered powerplant is the 600cc, four-cylinder DOHC SACS/TSCC engine with four BSR32SS carburetors, a wet multi-plate clutch, and a six-speed constant-mesh transmission. Country and area codes distinguish USA, Canada, California, European, and other export configurations. Market-specific tables separate ignition, carburetor, lighting, emissions, and fuel-system data. The K1 E-33 specification also separates California fuel-tank capacity from other markets, preventing use of one blanket value across all 2001 machines.

Engine, Fuel, and Chassis Repair Depth

The maintenance chapter covers valve-clearance inspection, ignition and intake service, oil and filter work, fuel-system checks, carburetor synchronization, clutch and drive-chain adjustment, brakes, steering, chassis fasteners, compression testing, and oil-pressure testing. E-33 maintenance adds evaporative-emission and secondary-air-system checks.

Engine coverage goes well beyond scheduled service. An in-frame table identifies components that can be removed without pulling the engine. Overhaul material addresses crankcase separation, camshaft timing, cylinder-head and valve work, piston and cylinder inspection, clutch repair, transmission gear and bearing inspection, crankshaft and connecting-rod bearing selection, thrust-clearance adjustment, and reassembly checks. Lubrication references cover the oil pump, sump filter, pressure regulator, oil cooler, oil jets, and oil-flow paths.

Fuel-system repair includes the tank, vacuum-operated valve, filter, gauge sender, and carburetor bank. The carburetor chapters explain the individual circuits before covering removal, inspection, cleaning, reassembly, remounting, and synchronization. Chassis procedures extend from wheel bearings and fork disassembly to steering-head bearings, swingarm and cushion-lever service, brake hydraulics, and wheel and tire inspection. The rear shock absorber is identified as a sealed, non-serviceable assembly rather than an internal overhaul item.

Diagrams, Diagnostics, and Factory Tool References

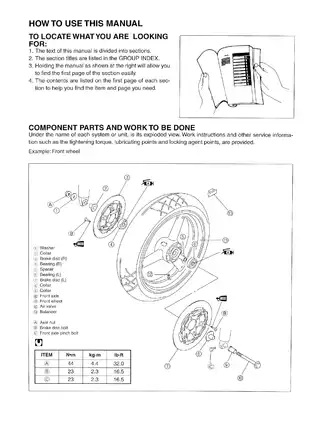

Visual references include the engine-lubrication chart, cylinder-head cooling chart, four regional wiring diagrams, wire-harness and control-cable routing views, fuel and brake hose routing, a PAIR air-supply diagram, and exploded construction views for engine, transmission, suspension, and brake assemblies. Troubleshooting tables cover engine, carburetor, chassis, brakes, charging, starting, ignition, and battery complaints.

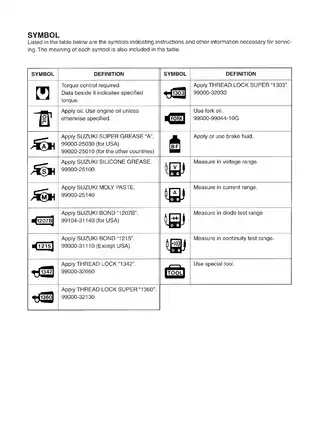

The special-tool index gives Suzuki numbers rather than generic descriptions. Representative entries include the multi-circuit tester set 09900-25008, carburetor balancer 09913-13121, valve-adjuster driver 09917-14910, clutch-sleeve-hub holder 09920-53740, and front-fork oil-seal installer 09940-52861. These references let technicians confirm the required tooling before a repair begins.

Manual-Specific Repair Cautions

The camshaft section warns that uneven tightening of the journal holders can damage the cylinder-head or holder thrust surfaces. The brake chapters caution against using high-pressure air to remove caliper pistons because piston damage can result. Fuel, brake, electrical, and internal-engine work requires proper shop support, ventilation, protective equipment, and adherence to the factory precautions for flammable fuel, brake fluid, hot parts, and rotating assemblies.
