Suzuki XL7 Repair & Owner's Manual Set, 2007–2009 (P/N 99011-78J00-03E)

Use the repair information for workshop diagnosis and component repair, and the owner’s manual for vehicle controls, safety features, and scheduled maintenance.

Coverage limits: AWD articles refer to separate Getrag/NVG 760 transfer-case procedures; this set does not provide complete transfer-case overhaul coverage. Module programming requires the external Service Programming System and compatible equipment.

The owner’s manual is the Suzuki OEM publication. The repair information carries Mitchell Repair Information Company credits, with many illustrations credited to Suzuki of America Corp. The Suzuki handbooks’ part numbers identify the owner’s manual only.

PDF Search, Bookmarks, and Wiring Detail

Text search and diagram labels: Body text supports PDF text search, but many labels within wiring diagrams are embedded as images and cannot be searched. The 48 repair PDFs have no embedded bookmarks. The owner’s manual has limited cover and introductory-page bookmarks rather than chapter-by-chapter navigation. Small wiring labels require zooming.

The ZIP download contains 49 printable English PDFs totaling 4,592 pages, including the owner’s manual’s front and back covers, imprint page, four memo pages, and one otherwise blank page.

Powertrain Repair, System Diagnosis, and Vehicle Operation

The following highlights are a selection of the included content, rather than a complete contents list. Further topics include cruise-control testing and wiper/washer diagnosis.

• Engine repair: LY7 diagnosis, engine removal, cylinder-head and block repair, crankshaft and piston inspection, valve service, and fourth-design timing-chain installation.

• Automatic transaxle: AF33-5 removal and unit repair, scan-tool diagnosis, line-pressure and cooler-flow testing, adaptive and neutral learn, and TCM setup.

• FWD and AWD: Separate fuel-tank, driveline, and suspension procedures, plus rear differential clutch diagnosis, clutch-housing replacement, and CCM matching-ID calibration.

• Brakes and stability control: Hydraulic and disc-brake diagnosis, pressure and manual bleeding, ABS automated bleeding, steering-angle sensor centering, and EBCM setup.

• Restraint systems: SIR and passenger-presence diagnosis, rezeroing, module replacement, and programming requirements.

• Electrical troubleshooting: GMLAN and BCM fault tracing, RKE and immobilizer programming, TPMS sensor learn, connector-end views, and system wiring diagrams.

• Climate and body systems: Automatic and auxiliary rear HVAC testing, refrigerant service, and repair information for seats, glass, lighting, sunroof, instruments, and audio/video equipment.

The repair material is suited to technicians and well-equipped, experienced DIY owners who can read wiring diagrams and use a scan tool, digital multimeter, pressure gauges, and model-specific service tools.

LY7 Internal Engine and Timing-Drive Work

The 3.6-liter LY7 material covers internal-engine repair, not just owner-level maintenance. It includes compression, oil-pressure, leak, noise, and vibration diagnosis, followed by cylinder-head disassembly, valve-seat work, and block, crankshaft, bearing, piston, and connecting-rod inspection.

Step-by-step procedures cover engine removal and installation, timing-drive assembly, and thread repair. The fourth-design inverted-tooth timing components are distinguished from earlier designs because their rotating components cannot be mixed.

Tool references include the EN 46105 camshaft locking tool and EN-48313 timing-chain retention tool. The camshaft caution explains how torque reacting through the timing chain can cause timing-drive failure.

AF33-5 Unit Repair and Fluid-Service Precautions

Internal transaxle procedures cover the clutch assemblies, pump, geartrain, differential, and valve bodies. Tool tables identify the J 21867/J 21867-50 line-pressure gauge setup and J 45096 transmission cooler flush-and-flow tool.

The fluid-check section identifies an expensive service trap: mistaking the third-gear anchor-band bolt for a fill point dislocates internal components and requires transaxle removal and disassembly.

Fuel, Cooling, and Lubrication Service

Fuel-system coverage includes pressure diagnosis, injector coil and balance tests, and injector/fuel-rail replacement. Cooling sections cover thermostat diagnosis, water-pump service, and both static and tool-assisted coolant filling.

The lubrication material adds oil-pressure diagnosis and oil-pump, pickup, and oil-pan service. Related tables provide fastener specifications, fluid requirements, component measurements, and inspection limits.

AWD Fault Tracing and Diagnostic References

Rear-drive diagnostic charts distinguish faults within the clutch-control system from disabling messages received from the engine and brake controllers. That distinction helps identify which system needs attention before a rear-drive component is replaced.

The diagnostic material combines DTC tables, scan-tool data lists and output controls, component locators, symptom charts, circuit tests, and post-repair checks. Specification sections also cover electrical test values, clutch travel, end play, alignment, and refrigerant configurations.

Named visual references include the Camshaft Timing Drive Chain Alignment Diagram (Fourth Design) and Drive and Intermediate Range – First Gear – Oil Flow Diagram.

Electrical examples include the Data Communication Schematics Diagram – High Speed GMLAN, 3.6L Engine Performance Circuit, AWD Circuit, and Supplemental Restraints Circuit.

Owner Controls and Maintenance Reference

The owner’s manual covers manual and power seats, second-row folding and tumbling, optional third-row seating, safety belts, LATCH and top-tether locations, and Passenger Sensing System behavior.

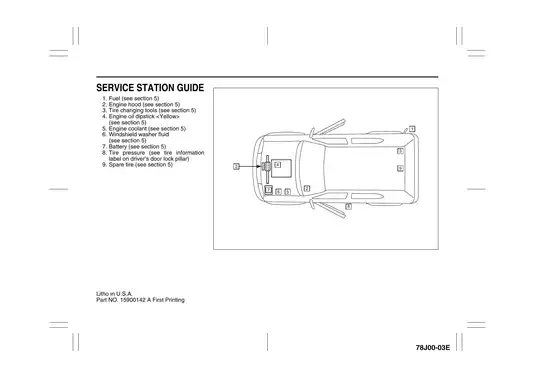

Operating sections address RKE and remote start, automatic and rear climate controls, rear-seat entertainment, DIC messages, AWD operation, towing, TPMS, scheduled maintenance, and the service-station guide.

SIR deployment and handling, fuel-pressure work, brake hydraulics, vehicle lifting, and refrigerant recovery are safety-critical. Follow the disabling, pressure-release, support, and recovery-equipment precautions stated in the repair files.

Examples of Front Brake Inspection Limits

For front disc-brake inspection, the specifications list a minimum pad-lining thickness of 2.0 mm and a rotor discard thickness of 27.4 mm.

The front rotor’s maximum allowable lateral runout is 0.06 mm. Separate inspection and refinishing procedures explain how these limits relate to rotor assessment.
