2003-2004 Honda TRX250TE FourTrax Recon ES Owner's Manual

Covers 2003-2004 Honda TRX250TE FourTrax Recon ES models with safety information, pre-ride checks, and basic operation procedures. Ref: DPR8EA-9

4.6starstarstarstarstar_half(5)
visibility Preview Available

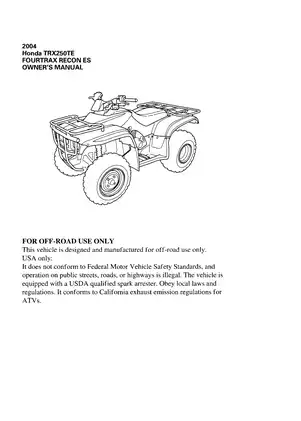

Honda 2003-2004 Honda TRX250TE FourTrax Recon ES Owner's Manual manual page preview - page 1 of 234

Sample pages from the 2003-2004 Honda TRX250TE FourTrax Recon ES Owner's Manual manual

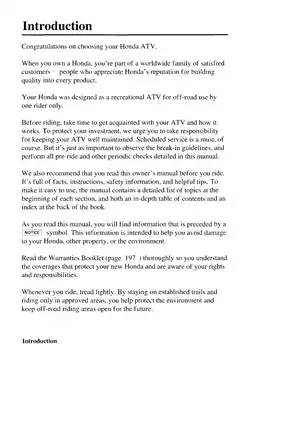

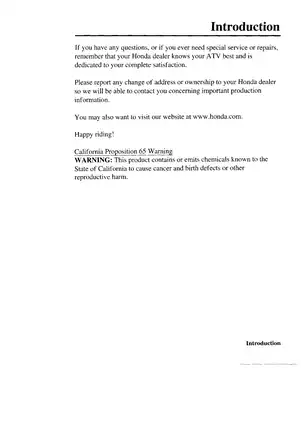

Honda 2003-2004 Honda TRX250TE FourTrax Recon ES Owner's Manual manual preview page 1 - thumbnail
Honda 2003-2004 Honda TRX250TE FourTrax Recon ES Owner's Manual manual preview page 3 - thumbnail
info_outline Click thumbnails to preview different pages
$9.39 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Honda Models Covered & Key Technical Specifications

Models: Honda TRX250TE FourTrax Recon ES
Build Years: 2003–2004
Technical Data:

  • Engine displacement: 229 cm³ (14.0 cu-in)
  • Engine compression ratio: 9.2:1
  • Idle speed: 1,400 ± 100 rpm
  • Spark plug type: DPR8EA-9
  • Maximum weight capacity: 386 lbs (175 kg)
  • Front cargo rack capacity: 33 lbs (15 kg)
  • Rear cargo rack capacity: 66 lbs (30 kg)
  • Tow weight limit: 500 lbs (225 kgf)
  • Wheelbase: 44.5 in (1,131 mm)
  • Dry weight: 414 lbs (188 kg)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25108 / Steven Jackson
File Size:
5.86 MB
File Type:
PDF
Language:
English
Pages:
234
Printable:
Yes
Category:
ATV
Last updated / verified
Sep 27, 2025

Honda Manual Features & Content Preview

2003–2004 Honda TRX250TE FourTrax Recon ES Manual Overview

  • Covers 2003–2004 Honda TRX250TE FourTrax Recon ES utility ATVs with electric shift transmission systems
  • Official Honda Motor Co., Ltd. 2003 publication
  • Contains 234 pages of operational, maintenance, and technical reference data
  • Delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • This owner publication serves as the primary manufacturer reference for all 2003 and 2004 TRX250TE production units

Operational and Maintenance Coverage

The 2003–2004 Honda TRX250TE FourTrax Recon ES manual details essential owner responsibilities, including pre-ride inspections and long-term service maintenance intervals. Content segments walk through the identification of controls like the electric gearshift switches, reverse selector, and ignition systems while outlining key usage parameters for off-road environments. Separate modules describe the maintenance requirements for the air cleaner, engine oil, fuel system, and braking components to maintain machine reliability. This document does not provide repair or diagnostic instructions but outlines owner-serviceable tasks and the required maintenance schedule for these 229 cm³ models.

Technical Specifications Preview

The manual includes core reference data regarding the 229 cm³ engine and its performance parameters for authorized operators. Cooling air temperature ranges are documented for proper engine warm-up and idle speed stability. Capacity limits for the cargo racks are explicitly defined to aid in safe loading and trail operation. Recommended fuel octane is listed at 86 or higher for emission control and engine protection. This document is intended as a permanent reference for owners maintaining the 2003–2004 Honda TRX250TE FourTrax Recon ES, documenting machine dimensions, weight capacities, and standard operating protocols for this utility platform.

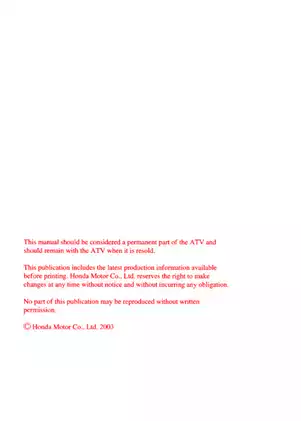

Document Reference: © Honda Motor Co., Ltd. 2003

Manual FAQ, Purchase & Download Details

Are cargo capacity limit tables included for the rack areas? keyboard_arrow_down

Document contains safety labels and technical sections that list the maximum weight capacity for front and rear cargo racks.

Does the manual describe the ignition switch and headlamp control locations? keyboard_arrow_down

Indicators and Controls section includes detailed illustrations showing the physical location of the ignition switch, headlamp switches, and other operator controls. These diagrams serve as a reference for identifying the specific components on the vehicle.

Can this PDF be used to view the original publication year and model specific information? keyboard_arrow_down

Document is the official owner manual published for the designated model years and includes coverage for the specified vehicle. It contains standard production information as available at the time of printing. The file is provided in a portable format for digital access.
