1992–1996 Suzuki GSX-R1100W Service & Repair Manual (P/N 99500-39113-03E)

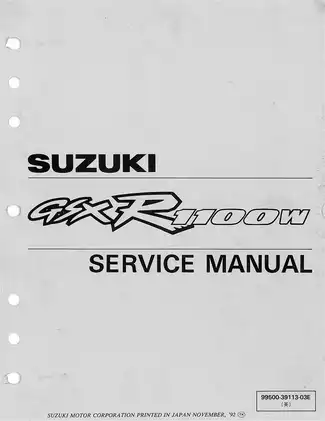

This Suzuki GSX-R1100W service manual covers 1992–1996 models, including WP, WR, WS and WT variants and E-03 (U.S.A.) and E-33 (California) configurations. P/N 99500-39113-03E is the fourth edition, dated April 1996, retaining the original November 1992 cover.

PDF Reading and Content Gaps

Search, navigation and wiring detail: PDF text search and embedded bookmarks are not available. Small wire-color codes require zooming, and the full wiring diagrams are oriented sideways.

Missing content: Printed pages 6-5 and 6-6 are absent from the generator section; pages 8-3 and 8-4 are absent from the troubleshooting section. These sections are incomplete.

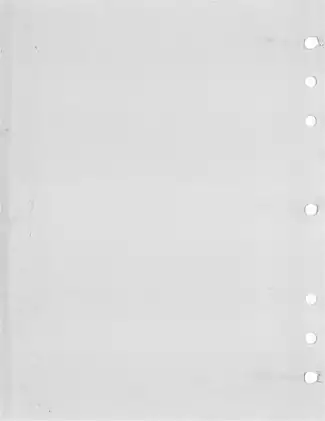

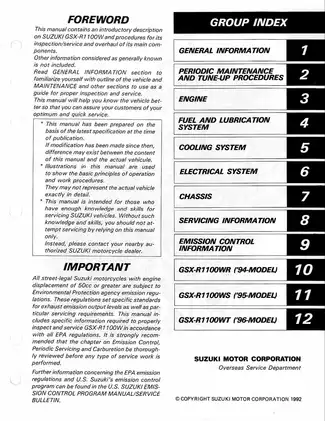

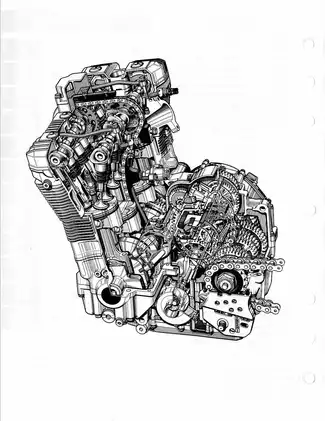

The single printable PDF contains 380 pages, including 12 pages of WR updates, 54 pages of WS updates and 13 pages of WT specifications and service data. The total also includes the cover, foreword/index, engine cutaway illustration, publication page and 11 blank pages.

Engine Overhaul, System Testing and Chassis Service

These are selected workshop topics; the manual also covers tubeless-tire mounting and fuel-level indicator testing.

• Engine repair: Engine removal, crankcase separation, cylinder-head overhaul, piston inspection, crankshaft bearing selection, camshaft timing and tappet-shim adjustment.

• Clutch and transmission: Diaphragm-spring clutch inspection, hydraulic release-cylinder service, transmission assembly and shift-fork clearance checks.

• Fuel and lubrication: Mikuni carburetor disassembly and synchronization, fuel-cock inspection, oil-pressure testing and engine lubrication diagrams.

• Cooling system: Radiator pressure testing, thermostat and fan-switch checks, water-pump disassembly, seal replacement and coolant service.

• Electrical diagnosis: Charging-output and ignition tests, starter-motor service, side-stand interlock checks and circuit diagrams.

• Chassis service: Front-fork overhaul, steering-bearing adjustment, wheel-bearing replacement, brake-caliper and master-cylinder repair, and brake and clutch bleeding.

• Model updates: WR service data, revised WS starter-clutch and swingarm procedures, and WT specifications and service data.

Suzuki intended this manual for readers who already have the knowledge and skills needed to service its vehicles; generally known workshop information is omitted.

Engine Inspection and Assembly References

Factory tolerances and component-specific torque tables provide the figures needed to assess engine and chassis condition. Compression-test guidance connects weak readings with cylinder wear, piston-ring problems, valve sealing and head-gasket faults.

Cylinder-head procedures extend to valve-guide replacement and seat cutting. Crankshaft and connecting-rod bearing tables match stamped identification codes to bearing colors, while transmission section views identify washer and circlip positions.

Clutch assembly drawings show the prescribed plate order and diaphragm-spring orientation. Periodic maintenance charts, lubricant recommendations and serial-number location illustrations support routine servicing and identification.

Assembly cautions: Uneven camshaft-holder tightening can damage the cylinder head or holder thrust surfaces. The clutch-release instructions also warn that operating the lever with the engine sprocket cover removed can damage the piston retainer.

Mikuni Carburetion, Lubrication and Cooling

Step-by-step instructions cover carburetor teardown, float inspection and synchronization, including calibration of carburetor balancer 09913-13121. Separate BST36SS and BST40SS specification tables distinguish market-specific carburetor configurations.

Fuel System Hose Routing drawings map fuel and vacuum connections. California coverage includes evaporative-emission canister routing and the PAIR System Diagram; the Engine Lubrication System Chart traces oil delivery to bearings and other lubricated components.

Water-pump illustrations distinguish the mechanical seal, oil seal, impeller shaft and bearings. Thermostat, cooling-fan switch and coolant-temperature gauge sections provide bench-test specifications.

Ignition, Starting and Wiring Diagnosis

Digital ignitor testing uses Suzuki checker 09931-94430; the WS update specifies MODE 1-A lead 09931-94480. The side-stand/ignition interlock circuit explains the relationship between the neutral switch, stand switch, relay and diode when investigating ignition faults.

The WS section includes separate wiring diagrams for U.S.A., Canada, Australia, general/England and other market configurations, with accompanying harness-routing drawings.

Model Changes and Suspension Limits

The WS update documents revised piston oil jets, starter-clutch components, front-fork service data and swingarm pivot adjustment. Drive-chain joining procedures identify cutting and joining tool 09922-22711. The WT section states that its specifications and service data match the WS model.

Front-fork procedures cover seals, bushings and reassembly, but prohibit internal cartridge disassembly. Rear-shock coverage includes inspection, replacement and suspension settings; the shock unit is identified as unserviceable internally.

Handling hydraulic brake and clutch systems and heavy internal engine components carries inherent physical risks. Follow the manual’s warnings and equipment requirements before undertaking hands-on repair or teardown work.

Compression, Tappet Clearance and Fluid Specifications: A Preview

The warm-engine compression test lists a standard range of 1,000–1,500 kPa (142–213 psi), with a fully charged battery and fully open throttle specified for testing. Intake tappet clearance is 0.10–0.20 mm with the engine cold; separate shim-selection tables cover intake and exhaust adjustment.

Cooling-system reference data specify a total capacity of 2,450 ml (2.6 US qt), including the reservoir.

Oil-pressure testing specifies above 300 kPa (43 psi) and below 600 kPa (85 psi) at 3,000 r/min, with the oil at 60°C (140°F).
