2003 Yamaha 9.9C / 15C Outboard Motor Service Manual (P/N LIT-18616-02-59)

This Yamaha service manual covers the 2003 9.9C and 15C two-stroke outboards, including the 9.9CMH and 15CMH and their worldwide 9.9FMH/15FMH designations. It is the first edition, December 2003, publication LIT-18616-02-59, with cover code 63V-28197-1F-11.

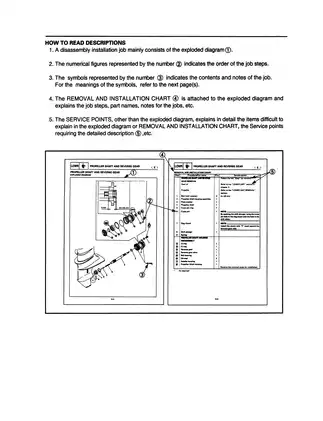

Text search, bookmarks and diagram detail: Text search works in selected sections, but much of the repair text and wiring detail cannot be searched. Chapter and section bookmarks are included; "Return to Index" points to a separate file that is not supplied. Small labels in the ignition, starting, and charging diagrams are readable when enlarged.

• Fuel system: Carburetor removal and overhaul, float-height checks, diaphragm fuel pump inspection, and fuel joint and filter service.

• Power unit repair: Power unit removal, crankcase separation, piston and crankshaft inspection, reed valve checks, and cylinder-head and thermostat service.

• Timing and periodic service: Maintenance interval chart, dial-gauge ignition timing, throttle link adjustment, idle-speed setting, and start-in-gear protection checks.

• Lower unit repair: Water pump and gearcase service, propeller shaft housing repair, seal installation, shim selection, and forward/reverse backlash measurement.

• Electrical diagnosis: Ignition, starting, and charging wiring diagrams, CDI peak-voltage tests, switch checks, and starter motor disassembly and inspection.

• Steering and brackets: Steering handle and shift lever service, clamp and swivel bracket disassembly, and inspection of control cables and rubber mounts.

• Service specifications: Component-specific and general fastener torque tables, fluid capacities, internal clearances, wear limits, and electrical test values.

Written primarily for Yamaha dealers and their trained mechanics, this manual assumes a basic understanding of mechanical and electrical repair procedures.

Carburetor and Fuel Pump Service

Carburetor inspection covers the float, needle valve, jets, and main nozzle, while the fuel pump section addresses diaphragms and seat valves. Fuel joint pressure testing and carburetor float-height measurement have their own service instructions.

The carburetor notes warn that cleaning jets with steel wire can enlarge their openings and affect engine performance.

Powerhead, Recoil Starter and Cooling

Internal inspection data covers piston-to-cylinder clearance, piston ring end gaps and side clearance, cylinder-head warpage, and crankshaft runout. Thermostat opening checks and water-jacket inspection address cooling faults.

Reed valve stopper specifications distinguish the 9.9 and 15 versions and identify a different 9.9 setting for Europe.

Flywheel magneto service specifies puller attachment precautions because an unevenly mounted puller can damage the engine or tools. Recoil starter coverage includes the sheave drum, spiral spring, and starter rope, with warnings about the release of spring tension.

Lower Unit Shimming and Gearcase Repair

Removal and installation charts cover the drive shaft, forward gear, pinion gear, and shift rod in the lower case. Propeller shaft housing instructions extend to the reverse gear, dog clutch, bearings, and seals.

Shimming procedures distinguish reusing the original case and parts, fitting a replacement case, and replacing internal parts. U.S./Canadian and other-market methods are presented separately, with tool references including pinion height gauge YB-34232 and shimming plate 90890-06701.

Shim selection charts and backlash measurement views help identify when incorrect forward and reverse backlash calls for checking pinion height. Lower unit leakage testing and water pump impeller and insert cartridge inspection are also covered.

Ignition, Starting and Charging Diagnostics

Separate component layouts identify manual-start, electric-start, and remote-control configurations. The charging diagram distinguishes the European manual-start rectifier-regulator and 2P connector arrangement from electric-start and remote-control wiring.

CDI, charge coil, and pulser coil checks include test connection drawings and peak-voltage data; the specified peak-voltage adapter is YU-39991. Starting circuit diagnosis covers the neutral switch, starter relay, and main switch, with 7P and 10P coupler views.

The Trouble Analysis Chart connects starting, idling, overheating, shifting, steering, and charging complaints with relevant components and chapter references.

Steering, Mounts and Tilt Mechanism

Bracket repair extends to the bottom cowling, upper case, and exhaust manifold. The bracket section includes mount bolts, bushings, friction parts, tilt-lock linkage, and the shallow-water drive lever.

English PDF and Included Pages

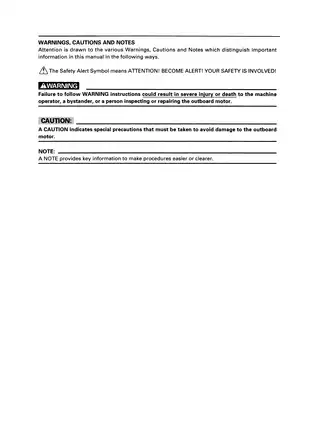

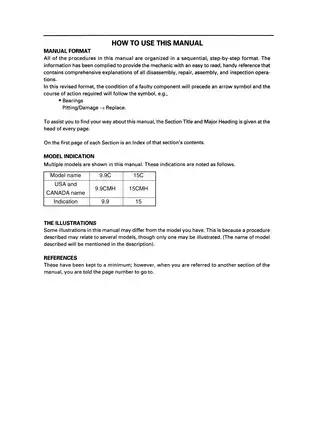

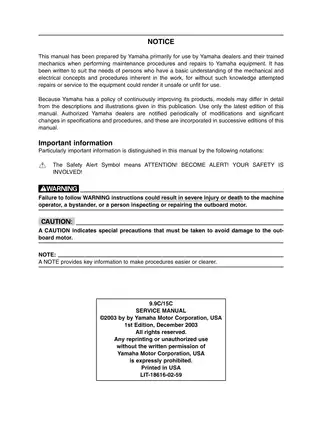

One printable English PDF contains 135 pages total: 127 chapter pages, six preliminary pages covering the notice, reading guide, symbols, and index, and the front and back covers. All of these pages are included in the total.
