1988–1997 Suzuki DT8MC, DT9.9MC, DT9.9CN Outboard Motor Service Manual & Supplements (P/N 99500-92D00-01E)

This factory service manual covers the 1988–1997 Suzuki DT8MC, DT9.9MC, DT9.9CN and related CE/CEN outboard motor variants. It combines the DT8C/9.9C base manual (99500-92D00-01E) with K, M and N supplements (99501-92D00-01E, 99501-92D10-01E and 99501-92D20-01E).

Text search and diagram detail: The PDF has a partial OCR text layer and bookmarks for the main sections and supplements. Some drawing labels are not searchable. Small wiring labels require zooming. The base manual starts at printed General Information page 7; the preceding General Information pages are not included.

• Engine repair: Powerhead removal, cylinder and piston inspection, crankshaft servicing, reassembly and recoil starter rebuilding.

• Fuel system: Mikuni carburetor inspection and adjustment, reed valve checks, diaphragm fuel-pump servicing and fuel-tank inspection.

• Oil injection: Air bleeding, pump discharge testing, oil-filter installation and check-valve assembly, with component changes documented in the supplements.

• Cooling and lower unit: Thermostat tests, water pump impeller replacement, gear shimming, clutch adjustment and gearcase leakage testing.

• Electrical diagnosis: CDI unit, coil, rectifier, switch and starter-motor tests, with peak-voltage tables and model-specific wiring diagrams.

• Brackets and installation: Steering and tilt adjustments, tiller servicing, remote control installation and propeller selection guidelines.

Suzuki wrote the base manual primarily for experienced Suzuki mechanics.

Powerhead Repair and Recoil Starter

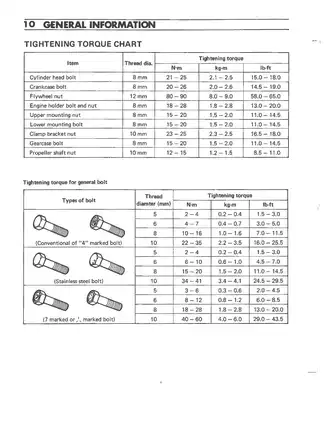

Crankshaft, piston and cylinder inspection procedures are backed by wear limits, clearance data and tightening torque values for major assemblies. Exploded views and assembly notes cover crankshaft rebuilding, piston-ring positioning, oil seals, oil nozzles and check valves.

The cylinder-head repair notes warn that removing too much material can allow the piston crown to contact the spark plug. Recoil-starter coverage includes the spring, pawls and neutral-start interlock.

Mikuni Carburetor and Oil Injection

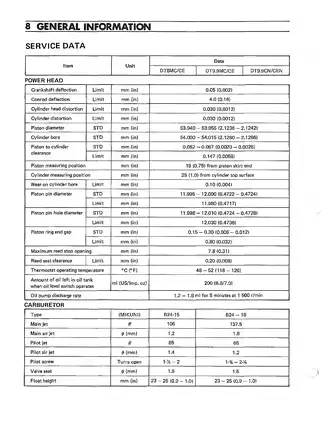

The fuel system section lists jet sizes, pilot screw settings, and float height adjustments for the Mikuni carburetor. The Fuel Pump Circuit illustration shows how crankcase pressure operates the integrated diaphragm pump.

Oil-injection coverage documents priming through air bleeding, discharge testing and pump-drive engagement. The M supplement identifies changes to the oil pump, check valve and hoses, with parts interchangeability information.

Gearcase, Cooling and Mounting

Lower-unit repair covers pinion-bearing replacement, propeller-shaft thrust play and forward/reverse gear adjustment. The M supplement documents a revised driveshaft arrangement and a separate gear-adjustment procedure; the changed driveshaft components interchange with the earlier arrangement as a set.

The procedures identify gear-adjusting gauge 09951-09510 and gear-oil leakage tester 09950-69511. Cooling Circuit diagrams accompany thermostat servicing and water-pump inspection, while the M supplement documents a revised pump case with an added oil seal.

DT9.9CN/CEN sail models have harder lower mounts than the MC/CE versions. Tiller and remote-control installation procedures are supported by connection drawings and the Propeller Selection Chart.

Ignition, Wiring and Troubleshooting

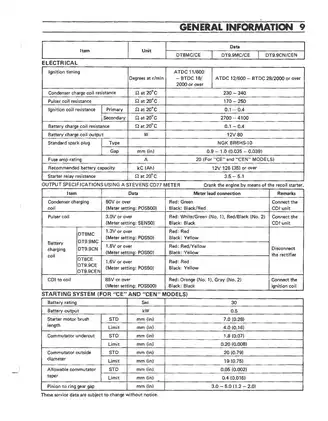

Stevens CD-77 peak-voltage tables distinguish CDI output, condenser charging, pulser and battery charging circuits. Used alongside the hard-start and intermittent-running troubleshooting charts, they help narrow down ignition faults before components are replaced.

Model-specific wiring diagrams cover manual and electric starting and optional remote controls. Oil Warning System circuitry and Wiring of the Remote Control Interior drawings show the connections. The oil-indicator test cautions that incorrect test-circuit resistance can damage the indicator.

Working on marine outboard systems involves high-voltage ignition components and fuel-system hazards; follow the manual's safety precautions for electrical testing and fuel handling.

DT15C and Additional Variant Coverage

DT8CN/CEN variants appear in the M and N specification tables. DT15MC/CE coverage is limited to supplementary specifications, oil-pump revisions, lower-cover changes, driveshaft upper oil-seal identification and N-model wiring diagrams; this is not a complete DT15C overhaul manual.

PDF Sections and Included Pages

One printable PDF contains 167 pages total: 106 pages from the base manual, 11 from the K supplement, 26 from M and 24 from N. The supplements, their cover and publication pages, and the single blank page in the M section are already included in this total.
