2003 Yamaha 60C / 70C / 90C Outboard Motor Service Manual
Complete engine diagnostics, lower unit assembly, and ignition system procedures for 60TR / 70TR / 90TR models. Includes oil injection pump, CDI timing, and gearcase shimming specifications.

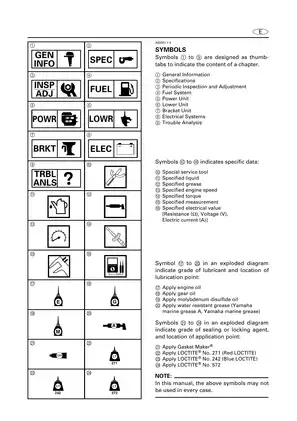

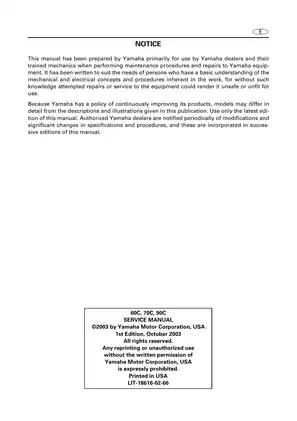

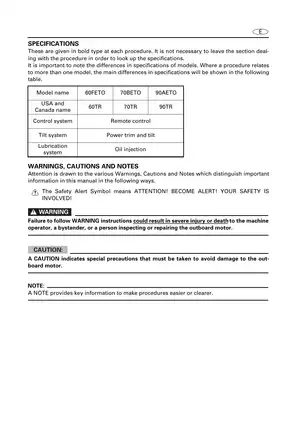

Manual Preview
Sample pages from the 2003 Yamaha 60C / 70C / 90C Outboard Motor Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha 60C, 70C, 90C — 2003 Automotive Technical Blueprint | Outboard Motor Package.
- Documented Rotational Force: The maximum output power reaches 44.1 kW (60 hp) at 5,000 rpm to 66.2 kW (90 hp) at 5,000 rpm, is standardized to establish peak performance Benchmarks.
- Technical Storage Capacity: For optimal fuel management, 2.8 L (2.96 US qt) to 3.3 L (3.49 US qt) defines the engine oil tank capacity Range.
- Universal Fit Tolerances: Piston-to-cylinder clearance achieves 0.050–0.055 mm (0.0020–0.0022 in) for 60–70 hp models and 0.060–0.065 mm (0.0024–0.0026 in) for 90 hp Sequences.
- Maximum Climate Specs: The thermostat valve opening temperature determines 48–52°C (118–126°F) for normal engine startup Baseline.
- System Travel Rate: Compression pressure reaches 853 kPa (8.53 kg/cm², 123.7 psi) for 60–70 hp and 922 kPa (9.22 kg/cm², 133.7 psi) for 90 hp Requirements.
- Prescribed Clamp Forces: Ring nut tightening specifications are set to 130 Nm (13.0 m·kg, 0.94 ft·lb) for 50 hp and 145 Nm (14.5 m·kg, 105 ft·lb) for 60–90 hp Threshold.
Professional Workshop Service Manual & Technical Specifications
Advanced Technical Documentation: Yamaha Outboard Motor 60C, 70C, 90C Workshop-Compendium
Series-Validation: 60C, 70C, 90C (2003 Edition) // Maintenance-Category: Engine and transmission systems maintenance and servicing // Series-Validation: Comprehensive technical data spanning 199 pages.
| Section | Component Focus | Documentation Type |
|---|---|---|
| General Information & Specifications | Engine configuration and technical parameters | Complete reference data |
| Fuel System Components | Carburetor, fuel pump, oil injection | System documentation |
| Power Unit Assembly | Cylinder head, piston, crankshaft, bearing | Detailed service specifications |
| Lower Unit & Drivetrain | Gear case, propeller shaft, clutch assembly | Backlash and shim adjustment procedures documented |
| Bracket Unit & Hydraulic Systems | Trim, tilt, and power trim-tilt mechanisms | Pressure test and relief valve specifications included |
| Electrical & Ignition Systems | CDI, ignition coil, starter motor, sensors | Complete electrical circuit diagrams and testing procedures |
Coverage is segmented into engine and transmission systems, lower unit components and propeller operation, fuel management and carburetor configuration, power trim and tilt hydraulic functions, and electrical systems diagnostics, reflecting a balanced approach to technical service information.
Operational Protocol
Timing procedures are documented for ignition system adjustment and fuel delivery calibration. The manual provides exploded diagrams illustrating component relationships for cylinder head assembly, crankshaft configuration, and lower unit gear arrangement. References to service specifications appear throughout, with detailed callouts showing bearing arrangement, oil seal positioning, and shaft installation methods. The document addresses both 50 horsepower, 60 horsepower, 70 horsepower, 75 horsepower, 80 horsepower, and 90 horsepower variants, noting configuration differences where applicable.
Technical Threshold
Technical notes are provided for measurement methodology using specialized tools including dial gauges, thickness gauges, and pinion height gauges. Special service tools are catalogued with part numbers for both USA/Canada and international markets. Compression pressure readings, bore measurements, and clearance specifications define acceptance criteria for component condition. The manual documents backlash measurement procedures for forward and reverse gear assemblies, with shim selection charts guiding technician adjustment sequences.
Comprehensive Threshold
Quality checks are addressed for spark plug electrode wear patterns, color analysis indicating fuel mixture condition, and commutator surface inspection on starter motor components. The document includes resistance specifications for ignition coils, sensor coils, and electromagnetic valve components. Bearing and oil seal installation procedures describe proper orientation and lubrication application. Pressure test specifications establish acceptable ranges for hydraulic trim and tilt system operation at 100 kPa or 4,100–5,500 kPa depending on system variant.
Integrated Parameters
The troubleshooting chapter addresses common operational failures including starting issues, stalling, performance degradation, and electrical system malfunction. Diagnostic decision trees reference specific chapters and component groups for systematic problem resolution. The document provides wiring diagrams color-coded by conductor function and connector location, supporting electrical circuit tracing. Battery specifications including Cold Cranking Ampere (CCA) capacity and reserve capacity ratings guide replacement selection.
Structured Standard
The manual documents torque specifications for fastener assembly across engine, lower unit, and bracket components to ensure proper dynamic load distribution. Bolt sequences are illustrated for multi-fastener assemblies including cylinder head, crankcase, and exhaust cover installation. Special attention is given to locking compounds (Loctite grades 242, 271, 572) and gasket maker applications at specific component interfaces. The document provides maintenance schedules establishing service intervals based on operating hours, calendar periods, and seasonal factors.
