Can-Am Outlander/MAX 500/650/800 EFI – 2007 ATV Operator’s Guide, CE Edition (P/N 219 000 436)
164 Pages • 1 Printable PDF (English) • Download
Can-Am Models Covered & Key Technical Specifications
Models: Outlander 500 EFI, Outlander 650 EFI, Outlander 800 EFI
Sub-models / Variants: MAX, 1-UP (500, 650, 800), 2-UP (650, 800), XT, Limited Edition
Trade Names: Outlander, Rotax, Can-Am
Model Year: 2007
-
Engine displacement: 499.6 cc (30.49 cu in) to 800 cc (48.82 cu in)
-
Engine type: 4-stroke liquid-cooled V-twin
-
Idle engine speed: 1250 RPM
-
Wheel nut torque: 90 N•m (66 lbf•ft)
-
Spark plug gap: 0.6–0.7 mm (0.024–0.027 in)
-
Coolant system capacity: 2.2 L (2.32 U.S. quarts)
-
Transmission: Continuously variable transmission (CVT) with high, low, park, neutral, and reverse sub-transmission (500, 650, 800)
Can-Am Manual Features & Selected Content Preview

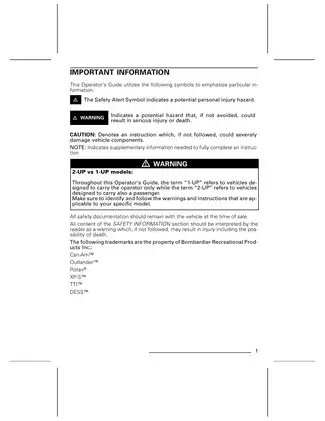

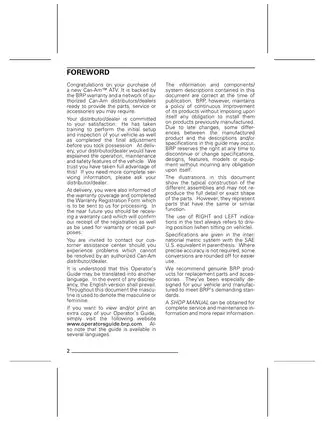

This BRP Operator’s Guide (P/N 219 000 436) covers the 2007 Can-Am Outlander/MAX 500, 650, and 800 EFI ATVs in the English-language CE edition. It covers 1-UP operation and MAX 2-UP operation, with 2-UP model specifications for the 650 and 800. The inside cover carries the code vmo2007-005 DR.
Text Search, Bookmarks, and Page Count

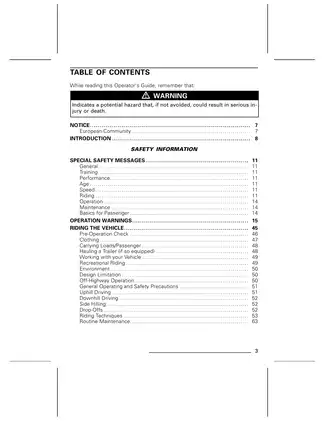

Search and navigation: The main text is searchable. Cover lettering and some labels embedded in illustrations and forms fall outside text search. Bookmarks link to major chapters, and several numbered entries share a destination page.
The download is one printable 164-page PDF. It includes 160 numbered pages, six of them blank apart from page markings, plus four unnumbered cover and inside-cover pages. The original warranty and change-of-ownership forms are included in that count.
ATV Controls, Routine Maintenance, and Fault Checks
The topics below are selected highlights from a guide that also covers engine and belt break-in and vehicle transport tie-down points.
-
Controls and instruments: Pre-ride checks, CVT range selection, multi-function display indicators, and the Digitally Encoded Security System (DESS).
-
Engine maintenance: Step-by-step instructions for engine oil and filter replacement, plus air-filter removal and cleaning and spark arrester purging.
-
Cooling system: Coolant level checks, replacement and bleeding, radiator inspection, and cleaning guidance for the cooling fins.
-
Gearbox and throttle: Gearbox oil changes, throttle cable lubrication, throttle lever free-play adjustment, and CVT housing drainage.
-
Electrical maintenance: Spark plug and battery removal and installation, fuse locations and circuit assignments, bulb replacement, and headlamp aiming.
-
Chassis and brakes: Wheel removal, wheel-bearing and drive shaft boot checks, suspension inspection and spring preload, brake service limits, and model-specific tire sizes, construction, and pressures.
-
Maintenance schedule and troubleshooting: A chart identifies owner and dealer tasks, while symptom tables address starting faults, misfires, overheating, loss of power, and loss of drive.

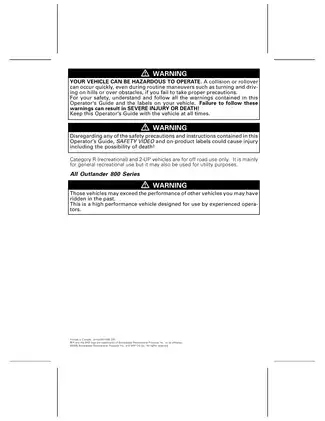

Written for owners and operators, the guide covers routine service for readers familiar with safe maintenance and adjustment practices. BRP identifies the Outlander 800 series as intended for experienced operators.
CE Controls, Seating, and Equipment
The CE controls include turn signals, a horn, and hazard warning lights. The 2WD/4WD selector is inactive on the European Community models covered here.
The guide shows how to swap the MAX passenger seat for the storage box and lists storage, rack, and trailer hitch limits. XT and Limited Edition coverage identifies the winch controls and remote connection. Limited Edition coverage also shows how to install and remove the GPS receiver and fit its protective cover.
For full winching techniques and GPS operation, the guide refers owners to the separate Basic Guide to Winching Techniques and the GPS manufacturer’s documentation.
Maintenance Details and Dealer Service
The coolant procedure identifies the bleed screw and the large hose pincher (P/N 529 032 500) used during refilling. The radiator-cleaning section warns that high-pressure washing can damage the thin cooling fins.
The Outlander 500 uses MacPherson front struts with fixed front shock preload. The 650 and 800 use double A-arms. The guide identifies TTI independent rear suspension and shows where spring preload can be adjusted. It also illustrates the taper of the specified wheel nut (P/N 250 100 039) and warns that a different nut can damage the rim.
The maintenance chart assigns valve adjustment, drive-belt width and condition checks, and fault-code reading to a dealer. The brake chapter provides pad and disc thickness and disc-warpage limits and assigns brake fluid replacement and brake system repairs to an authorized Can-Am dealer. For internal engine or CVT work, consult the separate Shop Manual referenced in the foreword.
Display Messages and Fault Checks
The troubleshooting tables connect starting and drivability symptoms with checks of ignition, fuel supply, radiator condition, intake restrictions, and the CVT. Use the display message table to distinguish an INVALID KEY warning from NO ECM COMMUNICATION before deciding whether to check the key or arrange dealer diagnosis.
The guide also explains HI TEMP, LO BATT, CHECK ENGINE, and LIMP HOME. Labeled front and rear fuse views identify the circuits they protect, and separate front- and rear-cylinder views show spark plug access. Electrical illustrations cover component locations and fuse assignments.
Review the safety guidance and pre-ride checklist before operating the ATV, and follow the precautions in the relevant maintenance section before servicing it.
Oil Refill and Load Limit Examples
Across the covered 500, 650, and 800 EFI series, the specifications list 2 L (2.1 U.S. quarts) for an engine oil change with filter replacement and 400 mL (14 U.S. oz) for the gearbox oil refill.
Total vehicle load is limited to 235 kg (517 lb) for 1-UP and 272 kg (600 lb) for 2-UP. The limit includes the operator, any passenger, cargo, accessories, and trailer tongue weight.
