1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual

Repair guide for all FJ1200S / FJ1200SC configurations. This technical reference covers maintenance, diagnostics, and part identification for your motorcycle. Consult LIT-11626-05-00 for your Yamaha.

4.3starstarstarstarstar_border(3)
visibility Preview Available
Yamaha 1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual manual page preview - page 1 of 124

Sample pages from the 1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual manual

Yamaha 1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual manual preview page 2 - thumbnail

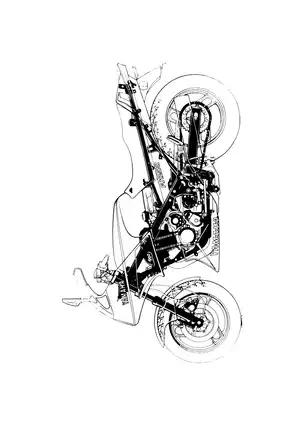

Yamaha 1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual manual preview page 3 - thumbnail

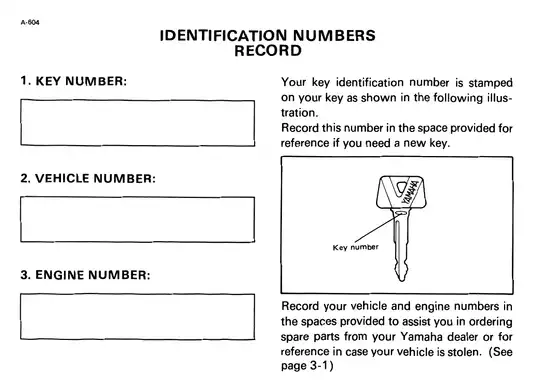

Yamaha 1985-1996 Yamaha FJ1200S / FJ1200SC Service Manual manual preview page 4 - thumbnail
info_outline Click thumbnails to preview different pages
$17.49 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Yamaha Models Covered & Key Technical Specifications

Models: Yamaha FJ1200S, Yamaha FJ1200SC
Build Years: 1985–1996
Technical Data:

  • Engine displacement: 1,188 cm³ (72.5 cu in)
  • Compression ratio: 9.7:1
  • Fuel capacity: 22 L (4.8 Imp gal, 5.8 US gal)
  • Reserve fuel capacity: 5 L (1.1 Imp gal, 1.3 US gal)
  • Basic weight (with oil and fuel): 258–259 kg (569–571 lb)
  • Spark plug gap: 0.8–0.9 mm (0.031–0.035 in)
  • Spark plug torque: 17.5 Nm (12.5 ft-lb)
  • Engine drain plug torque: 43 Nm (31 ft-lb)
  • Oil filter bolt torque: 15 Nm (11 ft-lb)
  • Front fork oil capacity: 424 cm³ (14.9 Imp oz) per fork
  • Front axle nut torque: 78 Nm (50 ft-lb)
  • Rear axle nut torque: 150 Nm (110 ft-lb)
  • Front brake lever free play: 5–8 mm (0.2–0.3 in)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
25212 / Barbara Rodriguez
File Size:
18.73 MB
File Type:
PDF
Language:
English
Pages:
124
Printable:
Yes
Category:
Motorbike
Last updated / verified
Feb 3, 2026

Yamaha Manual Features & Content Preview

Yamaha FJ1200S and FJ1200SC Owner Documentation

  • Covers 1985–1996 Yamaha FJ1200S and FJ1200SC sport-touring motorcycles, including detailed operational and maintenance data
  • Official Yamaha publication P/N LIT-11626-05-00, first edition dated December 1985
  • Contains 124 pages of illustrated technical specifications, fluid capacity data, and periodic maintenance charts
  • Files download to your account within seconds of checkout
  • Indexed PDF search covers every chapter and appendix
  • Documents key maintenance intervals, including engine oil, air filter, brake fluid, and drive chain adjustment protocols
  • Includes specific warning data regarding high-pressure nitrogen for the Monocross suspension system
  • Provides comprehensive wiring diagram and electrical fuse rating references for the FJ1200 platform
  • This 1985 first edition serves as the original baseline for the FJ1200 series production run, documenting critical initial setup and break-in requirements

Motorcycle Systems and Maintenance Coverage

This 1985–1996 Yamaha FJ1200S operator publication outlines the essential systems and routine care necessary for the long-term reliability of these sport-touring machines. The text documents the location of critical identification numbers, primary control functions including the unique anti-dive suspension system, and operation of the digital instrumentation. Specialized sections address pre-operation checks, cold and warm engine starting procedures, and shifting techniques for the 5-speed transmission, all accompanied by clear diagrams illustrating proper cable and lever operation.

Periodic maintenance chapters detail the required service intervals for emission-related items, spark plug inspection, and lubrication schedules for major components. The 1985–1996 Yamaha FJ1200S publication provides clear instructions for fluid changes, including brake and clutch hydraulic systems, as well as procedures for tire and wheel maintenance. All technical data is presented for ready reference, ensuring clear visibility into factory-recommended limits and adjustment protocols.

Technical Data and Specification Preview

General maintenance information includes torque tables with specifications for critical hardware like engine drain plugs, axle nuts, and handlebar mounts. The manual documents front fork oil capacity at 424 cm³ per leg, while cooling system maintenance for the cylinder head is clarified via detailed air duct removal steps. For those interested in how factory workshop documentation is structured, the sections on the rear Monocross suspension highlight the interplay between spring preload and damping settings. The FJ1200 series engine oil capacity is specified at 2.7 liters for a standard change, or 3.0 liters when replacing the filter. Reference only — always consult a certified technician before performing service on this equipment. A complete 124-page Yamaha OEM owner manual documenting the 1985–1996 Yamaha FJ1200S and FJ1200SC, providing essential operational, maintenance, and technical reference data for the classic 1188cc air-cooled engine platform.

Manual FAQ, Purchase & Download Details

Which specific motorcycle model series are covered in this owner manual? keyboard_arrow_down

Service manual includes coverage for the Yamaha FJ1200S and FJ1200SC models produced between 1985 and 1996.

Are wiring diagram references and electrical system layouts included for the FJ1200 series? keyboard_arrow_down

Manual contains a dedicated section for wiring diagrams and electrical component overviews. These visual references are provided to support general understanding of the motorcycle's electrical layout.

Is there information within the manual regarding engine-related specifications like oil, fuel, and tightening guidelines? keyboard_arrow_down

Document includes specification tables that list engine oil types, fuel capacity ratings, and general torque specifications. These sections serve as a reference for the technical parameters of the FJ1200S and FJ1200SC. Detailed data on combustion chamber pressure and displacement values are also provided in the technical reference portions of the manual.

What types of exploded views or component illustrations are available in the manual for parts identification? keyboard_arrow_down

Manual includes multiple diagrams and illustrations, such as the fuel pipe layout and emissions hose routing, to assist with identification and location of vehicle components.

Does the manual provide depth on the Monocross suspension system for the FJ1200 series? keyboard_arrow_down

Manual features specific sections dedicated to the Monocross De Carbon suspension system. This includes descriptive content regarding the system components and their integration within the motorcycle.
