Arctic Cat 650 Twin 4x4 ATV Service Manual – 2004 (P/N 2257-030)

Factory service manual for the 2004 Arctic Cat 650 Twin 4x4 ATV, P/N 2257-030, issued in December 2003. Coverage is specific to the liquid-cooled 650 Twin rather than the general 2004 Arctic Cat ATV range.

Section PDFs, Text Search, and Diagram Detail

Search and navigation: Service text is searchable within the individual PDFs; labels inside the wiring diagram are not. There are no embedded PDF bookmarks. Linked contents pages provide navigation, although links between files depend on PDF-reader support. Small wiring labels require zooming.

The ZIP contains one English-language manual split across 14 printable PDFs: the cover, main table of contents, foreword, and 11 service sections. The 210-page total comprises 207 section pages and three front-matter pages. Seven Notes pages are already included in the section-page count.

Engine, Belt Drive, and Chassis Service

The following selected service topics illustrate the manual’s coverage. Additional subjects include headlight aiming and rack and body-panel removal.

• Engine and transmission: Step-by-step removal and installation, in-frame service, crankcase separation, valve and piston repair, crankshaft inspection, and cam-chain timing.

• V-belt drive and engine brake: Belt inspection and replacement, drive-clutch and driven-pulley disassembly, wear checks, reassembly, belt-failure and scheduled-inspection resets, and actuator/controller testing.

• Fuel system: Twin Keihin CVKR-D32 carburetor removal, float adjustment, cleaning, inspection, reassembly, installation, and synchronization, plus electric fuel-pump testing.

• Lubrication and cooling: Oil-pump pressure diagnosis, pressure-relief valve checks, radiator and fan service, thermostat testing, and water-pump repair.

• Final drive: Front-drive actuator diagnosis, front differential and rear gear-case internal service, axle and CV-joint repair, pinion and ring-gear work, shim selection, backlash and tooth-contact adjustment, hubs, and differential-lock components.

• Electrical diagnosis: Voltage, resistance, continuity, and peak-voltage tests for ignition, charging, starting, relays, forward/reverse and tilt sensors, and the speedometer; vehicle wiring diagram for harness P/N 0486-147.

• Chassis, brakes, and controls: Hydraulic brake bleeding, pads and calipers, master cylinder and auxiliary brake, front and rear A-arms, shocks, steering post and knuckles, toe adjustment, and shift and throttle controls.

Arctic Cat designed this publication to aid service personnel and to serve as service-training material. It is best suited to technicians or experienced mechanics with the specified pullers, holding fixtures, meters, and safe vehicle-support equipment.

Maintenance and Internal Engine Repair

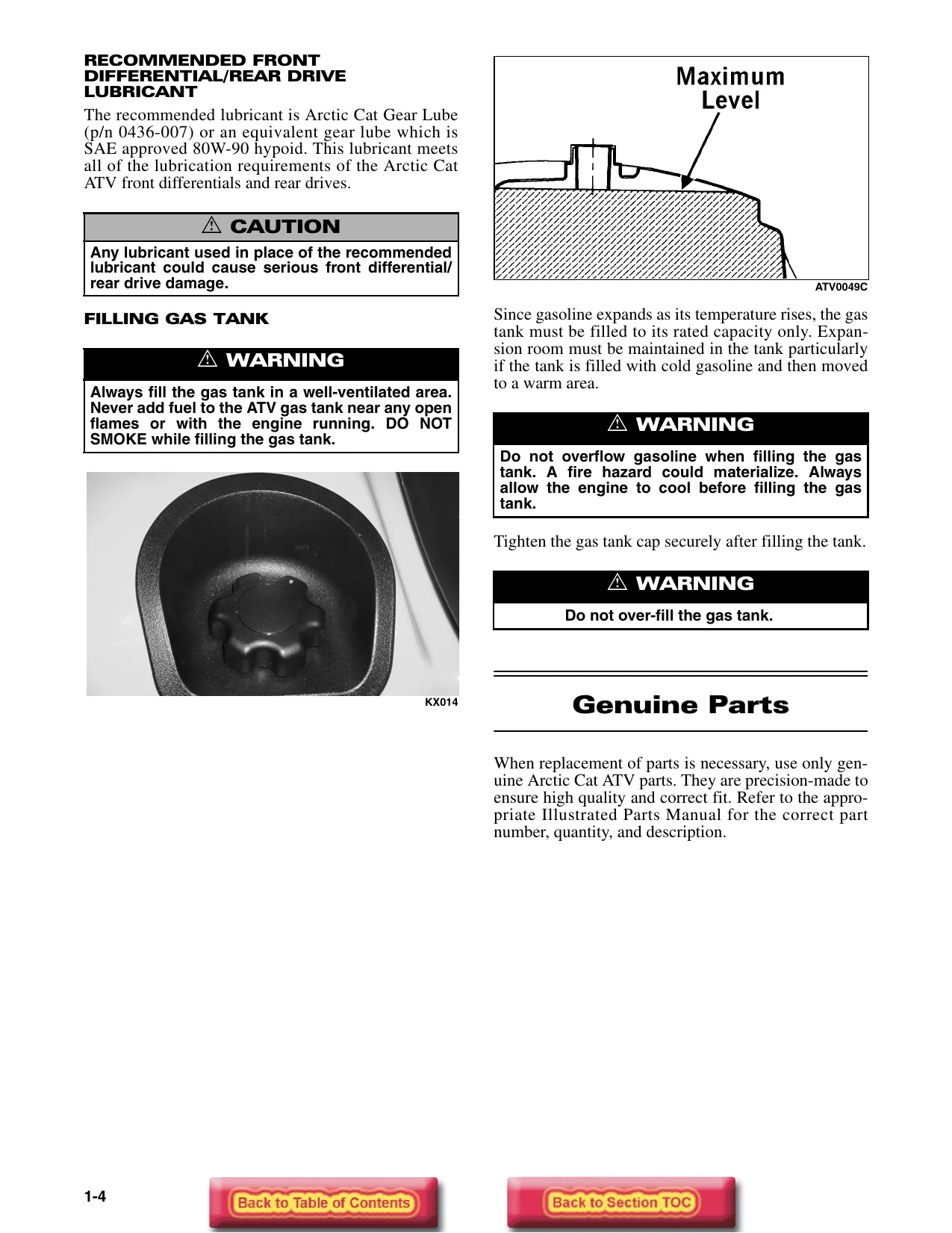

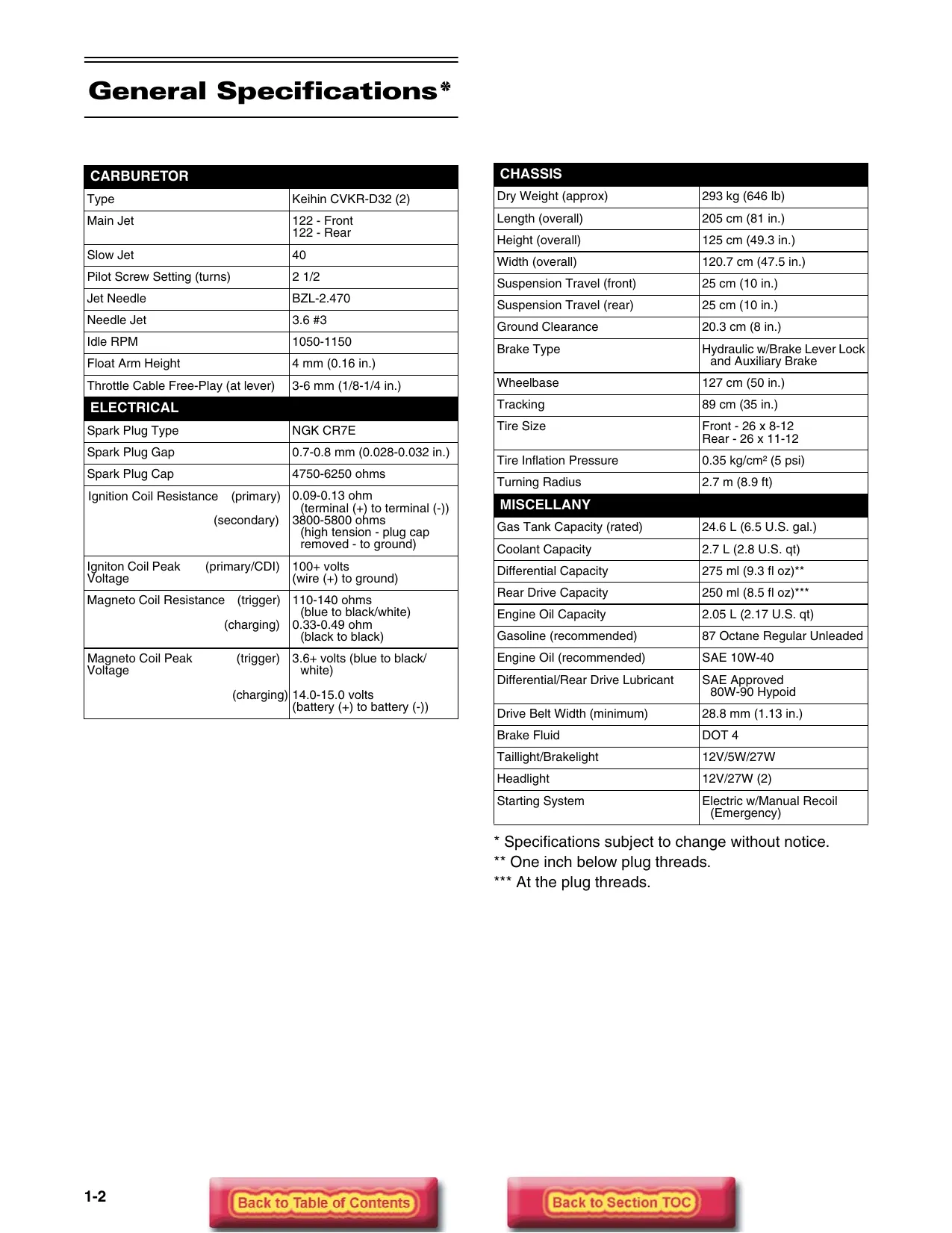

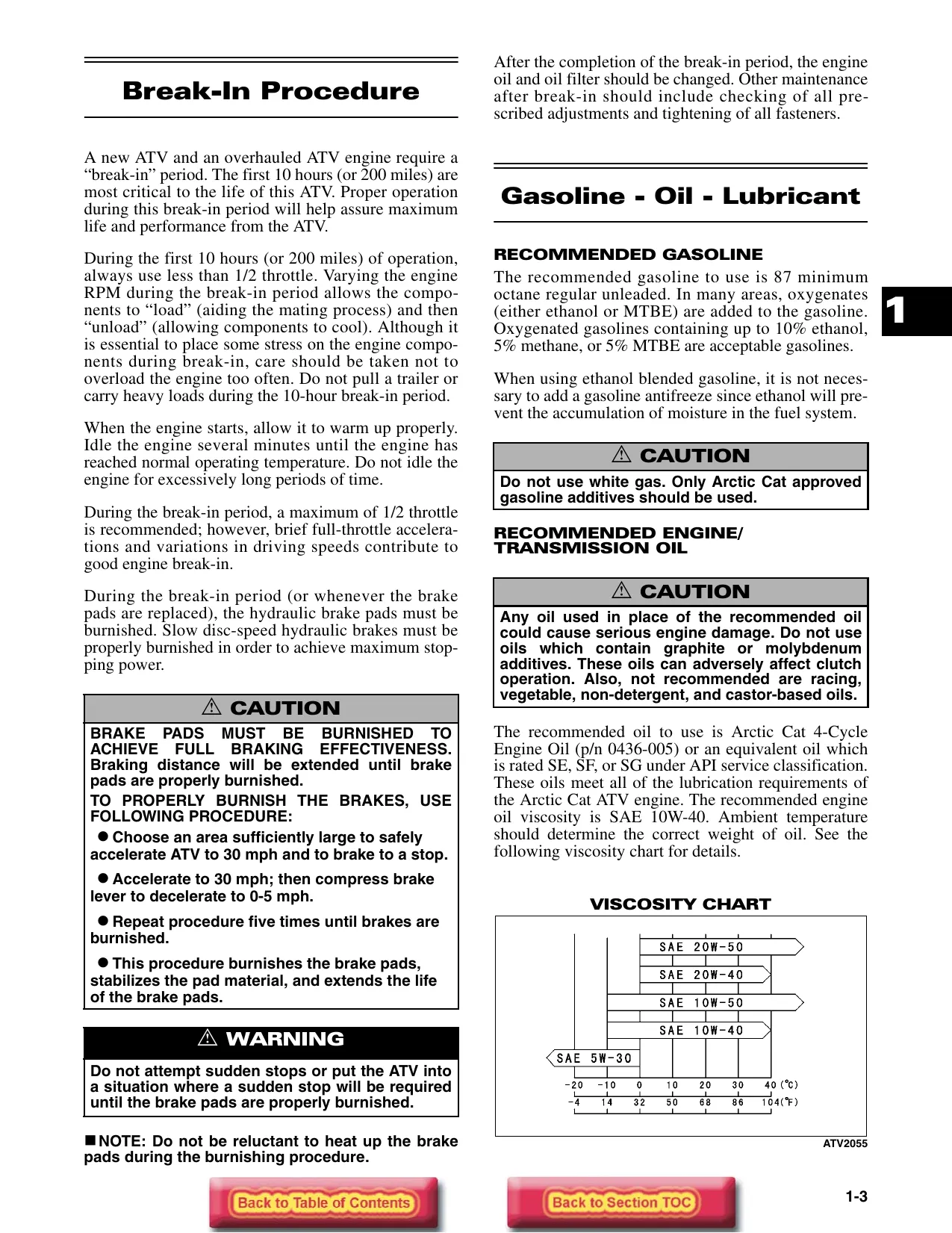

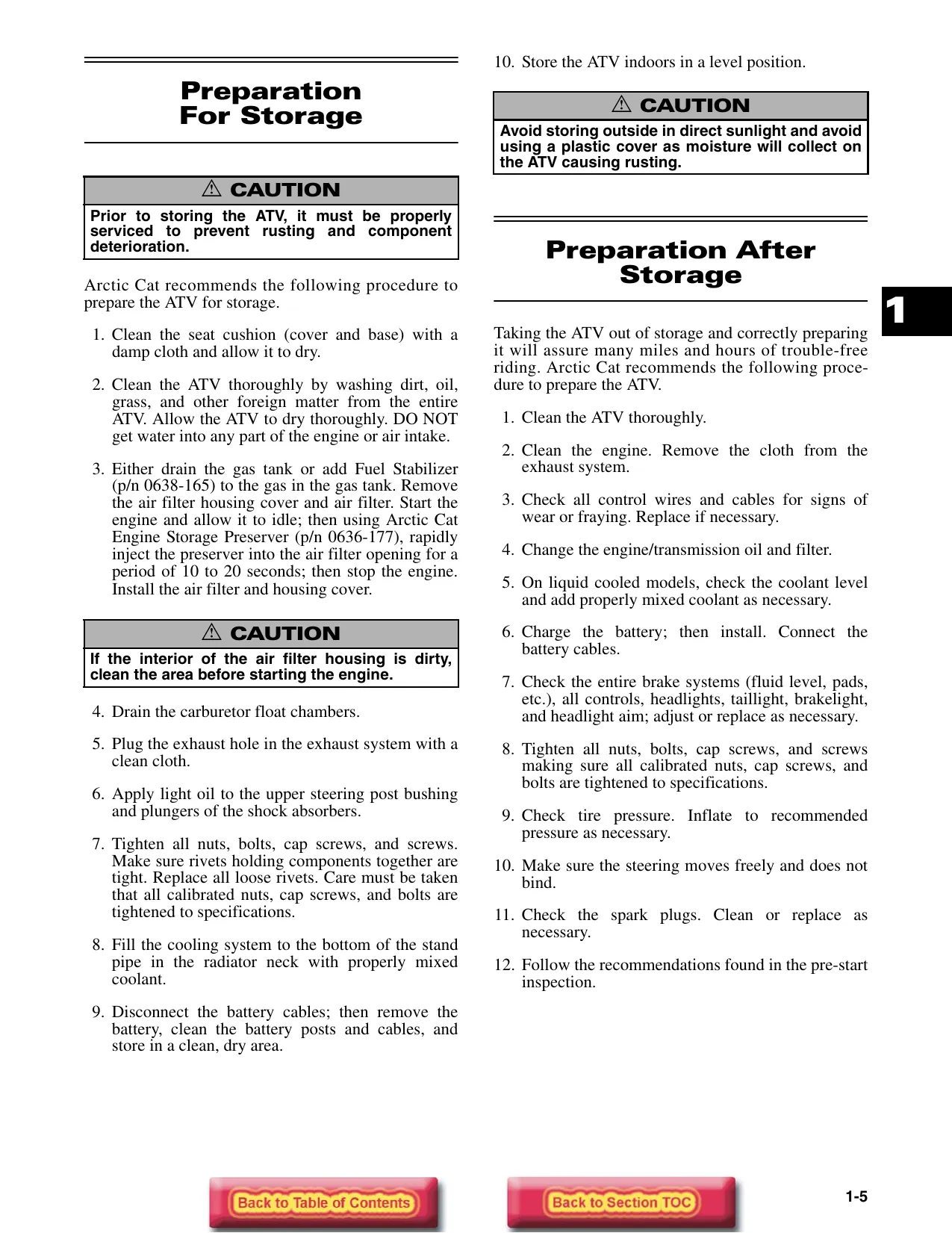

The opening sections supply general specifications, break-in and storage guidance, approved fluid information, and a periodic maintenance chart. Routine procedures cover the air filter, valve/tappet clearance, compression testing, ignition-timing verification, lubricants, hydraulic brakes, cooling system, and V-belt.

Teardown scope: Top-side and left- or right-side engine work can be performed in the frame, while access to the center crankcase requires removal of the engine/transmission assembly. This distinction helps plan the disassembly needed for a specific repair.

Internal components: Coverage reaches valve guides and seats, piston rings and cylinder inspection, camshaft and rocker measurements, and connecting-rod bearing selection. The automatic dual-range transmission coverage includes reverse, transmission shafts, shift parts, clutch assemblies, and output bevel-gear setup.

Fault Diagnosis, Schematics, and Factory Tools

Troubleshooting is divided into engine, drive, fuel, electrical, steering/suspension, and brake complaints. Condition-and-remedy charts address no-start problems, weak or absent spark, charging faults, drive loss, poor handling, and brake-fluid leakage.

Reference material includes component torque tables, torque conversions, fluid and lubricant data, clearance and wear limits, carburetor settings, and pressure-test criteria. Gear-case shim data, belt inspection limits, and electrical test values accompany the related procedures, including ignition-coil, magneto, starter, CDI, and front-drive actuator checks.

Assembly references: The Carburetor Schematic and Oil Flow Chart document fuel and lubrication layouts. Rear Suspension/Rear Drive Assembly Schematics and the Hydraulic Brake Assembly Schematic provide exploded assembly references.

The Body Panel Assembly Schematic and color-coded Wiring Diagram complement the indexed parts views and service photographs.

Mechanical service tools: Specified equipment includes the Driven Pulley Compressor (P/N 0444-121) with Spring Holder (P/N 0444-162), Pinion Gear/Shaft Removal Tool (P/N 0444-127), and Reset Connector (P/N 0486-161).

Electrical tests are referenced to the Fluke Model 73 Multimeter (P/N 0644-191) with Peak Voltage Reading Adapter (P/N 0644-307). Electronic speedometer and indicator checks cover the display, warning lights, and input signals.

Replace-Only Assemblies and Critical Cautions

The recoil starter, front-drive actuator, CDI unit, electric fuel-pump/fuel-level-sensor assembly, hydraulic brake caliper, and master cylinder are identified as replace-only assemblies. These limits matter when planning parts and repair scope.

The clutch and driven pulley are precision-balanced, high-speed assemblies; incorrect service can lead to component failure. The water-pump section warns that blocking the inspection passage during seal installation can allow coolant into the crankcase and cause severe engine damage.

Fuel handling, battery electrolyte, rotating V-belt drive parts, brake work, and supporting the ATV off the ground require the safety practices and equipment specified in the manual.

Selected Valve Clearances and Gear Backlash

The valve-adjustment section specifies cold intake clearance of 0.10–0.15 mm and cold exhaust clearance of 0.20–0.25 mm.

Final-drive gear-case specifications give ring-gear backlash as 0.28–0.38 mm. The engine/transmission section separately specifies output bevel-gear backlash at 0.05–0.11 mm, measured at the output driveshaft spline groove.
