Subaru Models Covered & Key Technical Specifications

Models: Impreza TS, Impreza RS, Impreza WRX

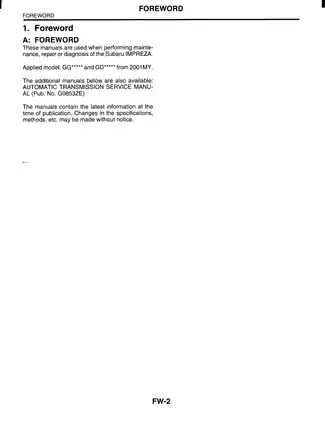

Sub-models / Variants: Sedan (GD*****), Wagon (*`GG***`***), OUTBACK, Turbo 2.0L, 2.5L, 5MT, 4AT, AWD (from 2001 MY)

Model Year: 2002


  • Engine Displacement: 1,994 cc (Turbo 2.0L), 2,457 cc (2.5L)

  • Maximum Output: 169 kW (227 HP) at 6,000 rpm (Turbo 2.0L), 123 kW (165 HP) at 5,600 rpm (2.5L)

  • Maximum Torque: 294 N-m (217 ft-lb) at 4,000 rpm (Turbo 2.0L), 226 N-m (166 ft-lb) at 4,000 rpm (2.5L)

  • Engine Oil Capacity (Non-Turbo): 3.0 liters lower level, 4.0 liters upper level

  • Engine Oil Capacity (Turbo): 3.5 liters lower level, 4.5 liters upper level

  • Transmission Type: 5-speed Manual (5MT, viscous-coupling center differential), 4-speed Automatic (4AT; MPT on non-turbo models, VTD on turbo models)

  • Spark Plug Gap (Non-Turbo): 1.0–1.1 mm

  • Spark Plug Gap (Turbo): 0.7–0.8 mm

Subaru Manual Features & Selected Content Preview

Publication Pages
2002 Impreza General Information — TS, RS, WRX and OUTBACK; P/N G1830BE1 86
2002 Impreza New Car Information — SOHC non-turbo and DOHC turbo system descriptions; P/N W1830BE 479
2002 Impreza Engine2 — DOHC Turbo service and repair; P/N G1830BE3 598
2002 Impreza Transmission — manual, automatic and clutch systems; P/N G1830BE4 342
2002 Impreza Chassis — suspension, driveline, brakes and steering; P/N G1830BE5 520
2002 Impreza Body — HVAC, body equipment and electrical diagnosis; P/N G1830BE6 503
2002 Impreza Wiring System — circuit diagrams and harness layouts; P/N G1830BE7 154

New Car Information explains system construction and operation, while the service volumes supply maintenance, repair and diagnostic procedures for U.S. and Canadian configurations. The wiring volume connects circuit diagrams with harness locations and connector arrangements.

Engine repair coverage: The detailed engine repair volume covers the 2.0L DOHC turbo. The 2.5L naturally aspirated SOHC engine appears in specifications, routine maintenance and New Car Information, but its dedicated engine repair volume is not included.

Automatic-transmission limits: Full internal AT overhaul is outside this set. Valve-body rebuilding and AT front-differential overhaul are referred to the separate publication G0853ZE, which is not included.

Searchable PDFs, Bookmarks and Diagram Detail

Text search and circuit labels: All seven PDFs contain searchable OCR text and embedded section bookmarks. OCR errors can affect exact searches, and Body PDF p. 70 has no searchable text. Small connector numbers and wire codes in the sampled diagrams are readable with zoom.

The ZIP contains seven printable PDFs totaling 2,682 pages, including their cover pages, front matter, blank pages and memo pages.


Turbo Engine, Drivetrain and Chassis Procedures

The following selected topics show the repair and diagnostic coverage. Additional subjects include evaporative-emission component service and power-window troubleshooting.

  • Turbo engine repair: Step-by-step engine removal, cylinder-head and cylinder-block disassembly and reassembly, timing-belt work, valve-clearance adjustment, and turbocharger/intercooler removal.

  • Manual transmission and clutch: Gearshaft and synchronizer inspection, front-differential adjustment, clutch replacement, and hydraulic clutch bleeding.

  • Automatic transmission diagnosis: Removal and installation, stall and time-lag tests, line-pressure and transfer-clutch-pressure testing, and DTC-based diagnosis.

  • Suspension and driveline: Wheel alignment, wheel-bearing replacement, rear-differential overhaul, strut disassembly, and ball-joint inspection.

  • Brakes and steering: Disc and drum configurations, hydraulic bleeding, ABS sequence control and hydraulic-unit testing, plus power-steering gearbox disassembly and adjustment.

  • Electrical troubleshooting: Wiring diagrams and connector views support fault tracing, with separate engine, automatic-transmission, ABS, airbag, and cruise-control diagnostic sections.

Published by Fuji Heavy Industries Ltd., the service manuals were written for Subaru service personnel and experienced mechanics.

Engine Diagnosis and Timing Work

Turbo-specific fuel-system sections cover the tumble generator valve assembly, wastegate-control solenoid, and fuel-pump controller. OBD-II code reading and no-start fault trees are covered, along with Subaru Select Monitor procedures for commanded actuator checks.

Mechanical tests cover compression, fuel pressure, oil pressure, and intake-manifold vacuum. ECM/TCM input/output tables support circuit checks, allowing electrical faults to be investigated alongside mechanical test results.

Factory tool references identify English Select Monitor kit 22771AA030 and valve-shim replacer 498187200. Reference tables supply fluid capacities, spark plug gaps, camshaft timing data, component-specific tightening torques, and wear limits.

DOHC timing-belt cautions explain how camshaft rotation with the belt removed can make opposing valves contact and bend. The cooling, lubrication, and starting/charging chapters in New Car Information explain system construction and operation rather than complete component repair.

Drivetrain Variants and Service Depth

The automatic-transmission sections distinguish multi-plate transfer (MPT) on non-turbo models from variable torque distribution (VTD) on turbo models. Valve-body removal and solenoid/sensor replacement are covered.

Manual-gearbox material includes bearing-preload and hypoid-backlash adjustments. The viscous-coupling center differential is serviced as an assembly rather than internally rebuilt.

Maintenance, Body and Workshop Precautions

General Information adds pre-delivery inspection criteria and factory maintenance schedules for timing belt replacement, drive belt tensioning, and fluid services.

Body procedures cover A/C manifold-gauge diagnosis, refrigerant recovery and charging, plus keyless-transmitter programming. Body datum points and dimensions support damage assessment.

Front-axle cautions address wheel-bearing damage caused by loading the wheel while the axle nut is loose. Review the factory safety protocols before working around loaded springs, pressurized refrigerant, or airbag components.

Wiring and System Illustrations

Named drawings include Engine Electrical System and A/T Control System, with turbo/non-turbo layouts where applicable. Power Supply Routing and Ground Distribution diagrams work alongside harness-location and terminal-arrangement views.

New Car Information adds Cooling Circuits and Engine Oil Flow illustrations to explain how those systems operate.

Selected Turbo Valve-Clearance and Oil-Pressure Data

For the DOHC turbo engine, the valve-clearance section specifies cold clearances of 0.20 ± 0.02 mm for intake valves and 0.25 ± 0.02 mm for exhaust valves, alongside shim-adjustment procedures.

The engine oil-pressure test specifies minimum readings of 98 kPa at 800 rpm and 294 kPa at 5,000 rpm, with engine oil at 80°C. These are pressure-test criteria, separate from the oil-capacity specifications.
