2003–2007 Yamaha WR250FR Owner's Service Manual (P/N LIT-11626-16-48)

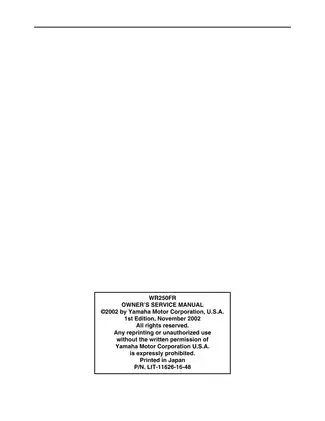

• Manual identity and exact coverage: A 343-page PDF of Yamaha's Owner's Service Manual, P/N LIT-11626-16-48, 1st Edition, November 2002, with cover number 5UM-28199-10. It covers the 2003 WR250FR for the USA (5UM1), WR250F for Europe (5UM2), and WR250F(R) for Canada, Australia, New Zealand, and South Africa (5UM4), all in closed-course competition configuration.
• Engine repair: Covers engine removal, camshaft timing and clearance work, cylinder-head service, valve and valve-guide repair, piston and cylinder inspection, clutch service, balancer timing, oil-pump and water-pump work, crankcase splitting, crankshaft replacement, and five-speed transmission, shift-cam, and shift-fork repair.
• Fuel, cooling, and lubrication systems: Details FCR-MX37 carburetor removal and teardown, accelerator-pump and air-cut-valve service, float and jet inspection, throttle-position-sensor replacement and adjustment, cooling-system pressure checks, radiator service, oil-pressure inspection, and dry-sump lubrication checks.
• Chassis repair: Includes wheel and bearing service, front and rear brake caliper and master-cylinder overhaul, brake-system bleeding, steering-head work, swingarm and linkage service, front-fork disassembly and seal replacement, fork-oil setup, and rear-shock removal, spring setup, and bearing replacement.
• Electrical fault finding: Provides the complete wiring diagram and component locations, plus test sequences for the map-controlled CDI ignition, electric starter and safety interlock, charging system, throttle position sensor, and lighting system. Starter-motor disassembly and inspection are included.
• Race setup and factory reference: Supplies the race-based maintenance schedule and setup tables for carburetion, gearing, and suspension, backed by cable and hose routing plus factory torque data, wear limits, clearances, capacities, and electrical test specifications.

From Race Prep to Full Teardown

Despite the Owner's Service Manual title, this publication goes well beyond operating instructions. The opening material covers controls, starting and break-in, pre-ride checks, cleaning, storage, and routine service; the repair chapters then use Yamaha's sequential job charts and exploded views for major disassembly and reassembly. Its depth and reliance on precision measurements and special tools make it best suited to experienced owner-mechanics and technicians. Routine inspection is approachable, but internal engine, brake, and suspension repair assumes established workshop skills.

The machine is built around a 249 cm³ liquid-cooled DOHC single, dry-sump lubrication, an FCR-MX37 carburetor, kick and electric starting, and a constant-mesh five-speed transmission. Engine repair covers the camshafts and automatic decompression system, valve seats and guides, piston and rings, wet multi-plate clutch, balancer, and oil-pump assembly. Separate sections address the AC magneto and starter clutch, crankshaft and bearings, and complete transmission and selector mechanism.

5UM Regional Configuration Details

The 5UM1, 5UM2, and 5UM4 identifiers are Yamaha model codes, not engine-series numbers. Yamaha separates the USA and non-USA CDI units and carburetor baseline settings, and it calls out market-specific spark-arrester equipment, wheel and tire fitments, fork settings, suspension springs, and selected sprocket options. Those distinctions make the frame model label and original sales market important when choosing settings or ordering parts. This PDF documents the 2003 first-edition configuration; it does not contain later model-year supplements or change pages for 2004-2007 machines.

Diagrams, Test Charts, and Special Tools

Diagnostic references include the full electrical-components and wiring diagram, the map-controlled CDI 3-D ignition-control view, the ignition-system inspection flowchart, the starting-circuit cut-off schematic, the charging-system inspection chart, and the throttle-position-sensor test chart. Multi-page routing drawings show the wire harness, control cables, brake hoses, breather lines, coolant hoses, starter leads, and handlebar wiring. Exploded assembly views support the engine, carburetor, brakes, fork, steering, swingarm, shock, and starter-motor repair sections.

The special-tool list gives paired USA/Canada and 90890-series numbers. Representative examples include the crankcase separator YU-1135-A / 90890-01135, damper-rod holder YM-1423 / 90890-01423, fork-seal driver YM-01442 / 90890-01442, valve-spring compressor YM-4019 / 90890-04019, rotor puller YM-04141 / 90890-04141, and pocket tester YU-3112-C / 90890-03112.

Repair Cautions and Scope Limits

Yamaha warns that rotating the crankshaft during camshaft installation can produce incorrect valve timing and engine damage; the cam-cap fasteners also have to be handled evenly to avoid damaging the head, cams, or caps. The fork must be depressurized before disassembly, and the rear shock's high-pressure nitrogen cylinder and reservoir are not covered as an internal overhaul - the manual expressly says not to open them. Brake work includes bleeding and post-repair operation and leak checks. Secure support of the competition bike is required for engine, wheel, fork, steering, swingarm, and shock removal.
