1993 Jeep Cherokee / Grand Cherokee / Grand Wagoneer / Wrangler Factory Service Manual (P/N 52011112)

• Covers 1993 Cherokee XJ 2.5L VIN P and 4.0L VIN S, Grand Cherokee ZJ 4.0L VIN S and 5.2L VIN Y, Grand Wagoneer ZJ 5.2L VIN Y, and Wrangler YJ 2.5L VIN P and 4.0L VIN S applications.
• Details 2.5L and 4.0L engine removal, cylinder-head and valvetrain repair, timing-chain service, piston/crankshaft inspection, lubrication and oil-pump work, cooling-system bleeding, and assembly specifications.
• Provides 2.5L/4.0L PCM theory, no-start and driveability testing, DRB-II code diagnosis, no-code troubleshooting, component tests, emissions inspection, connector views, and fault-isolation charts.
• Includes AW-4 electronic diagnosis and internal overhaul material, AX-5/AX-15 service, NP207/231 and NP/NV242 transfer-case overhaul, Trac-Lok differential repair, axle setup, and driveshaft/U-joint service.
• Adds Teves Mark IV ABS testing and bleeding, base-brake repair, clutch, steering, suspension and alignment, A/C-heater service, charging/starting systems, cruise control, and body-electrical troubleshooting.

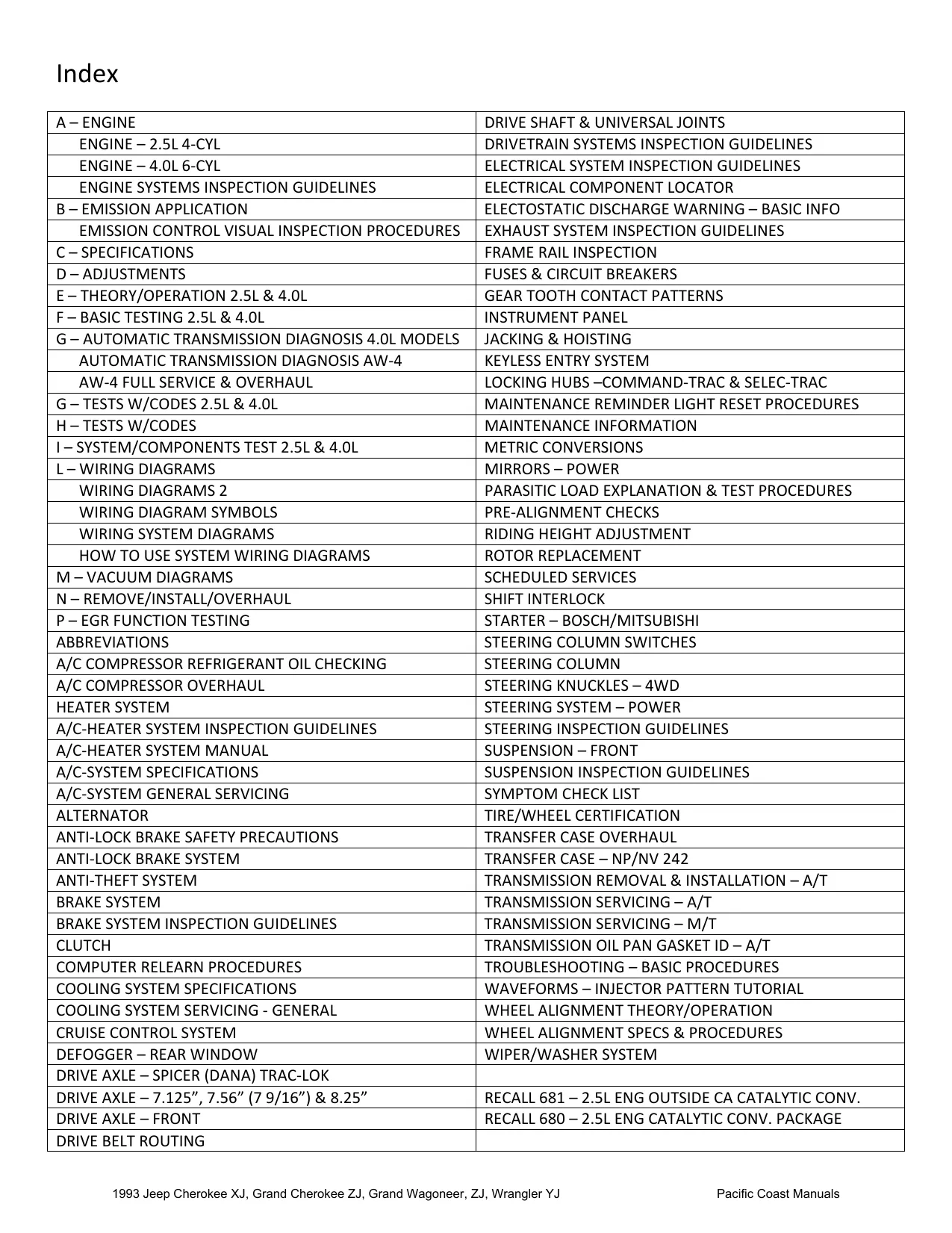

• The 1,492-page PDF is a Pacific Coast Manuals compilation containing 1993 Jeep service articles, wiring and vacuum diagrams, an AW-4 technical booklet, specifications, general repair references, and selected recall information.

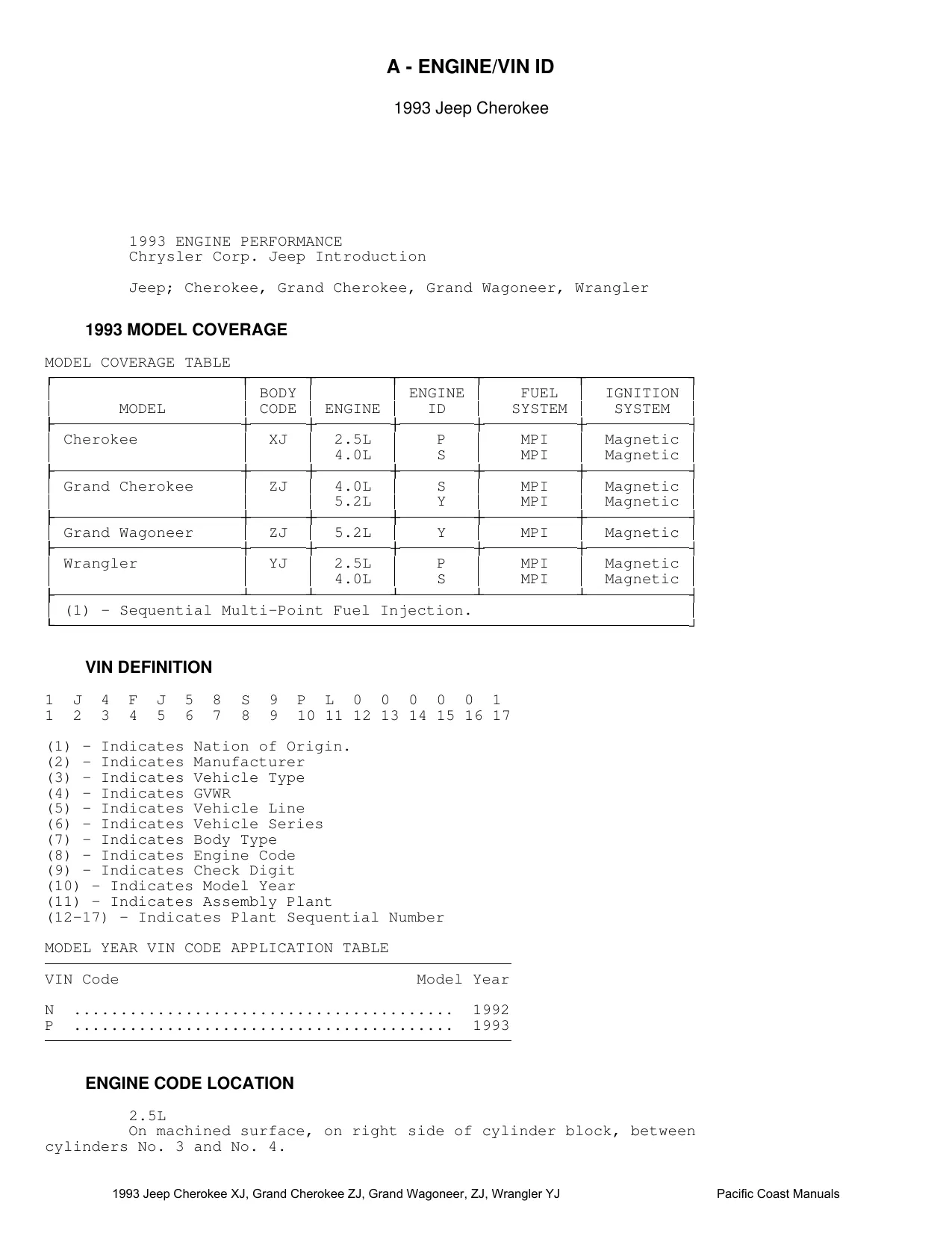

Model and Engine Scope

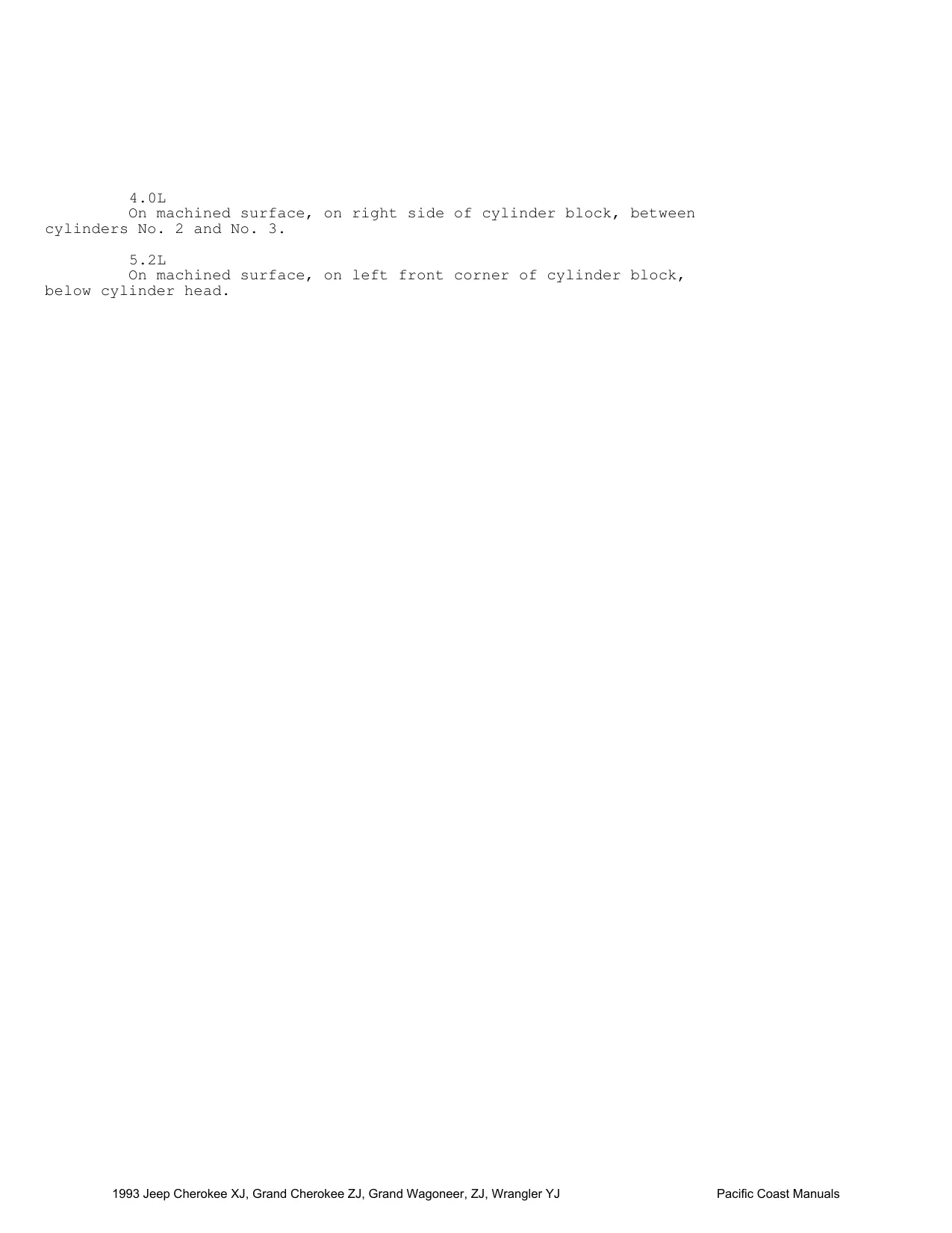

The application material identifies MPI engines with magnetic ignition across the XJ, ZJ, and YJ platforms. Coverage depth differs by engine. The 2.5L four-cylinder and 4.0L inline-six receive dedicated mechanical chapters plus theory, basic testing, fault-code diagnosis, tests without codes, and system/component checks.

The 5.2L V8 material is narrower. It includes application and specification data, emissions information, a Grand Cherokee/Grand Wagoneer wiring diagram, vacuum routing, and selected engine-performance component procedures. It does not contain the dedicated 5.2L mechanical teardown or 5.2L code/component-test articles referenced elsewhere in the compilation. That distinction matters for anyone buying the manual specifically for a ZJ V8 rebuild or full engine-management diagnosis.

This is a compiled service reference rather than one OEM-issued publication. Chrysler articles are combined with general-reference sections and a separate Automatic Transmission Service Group AW-4 booklet, so application notes should be checked before selecting a repair procedure.

Engine Repair and Diagnosis

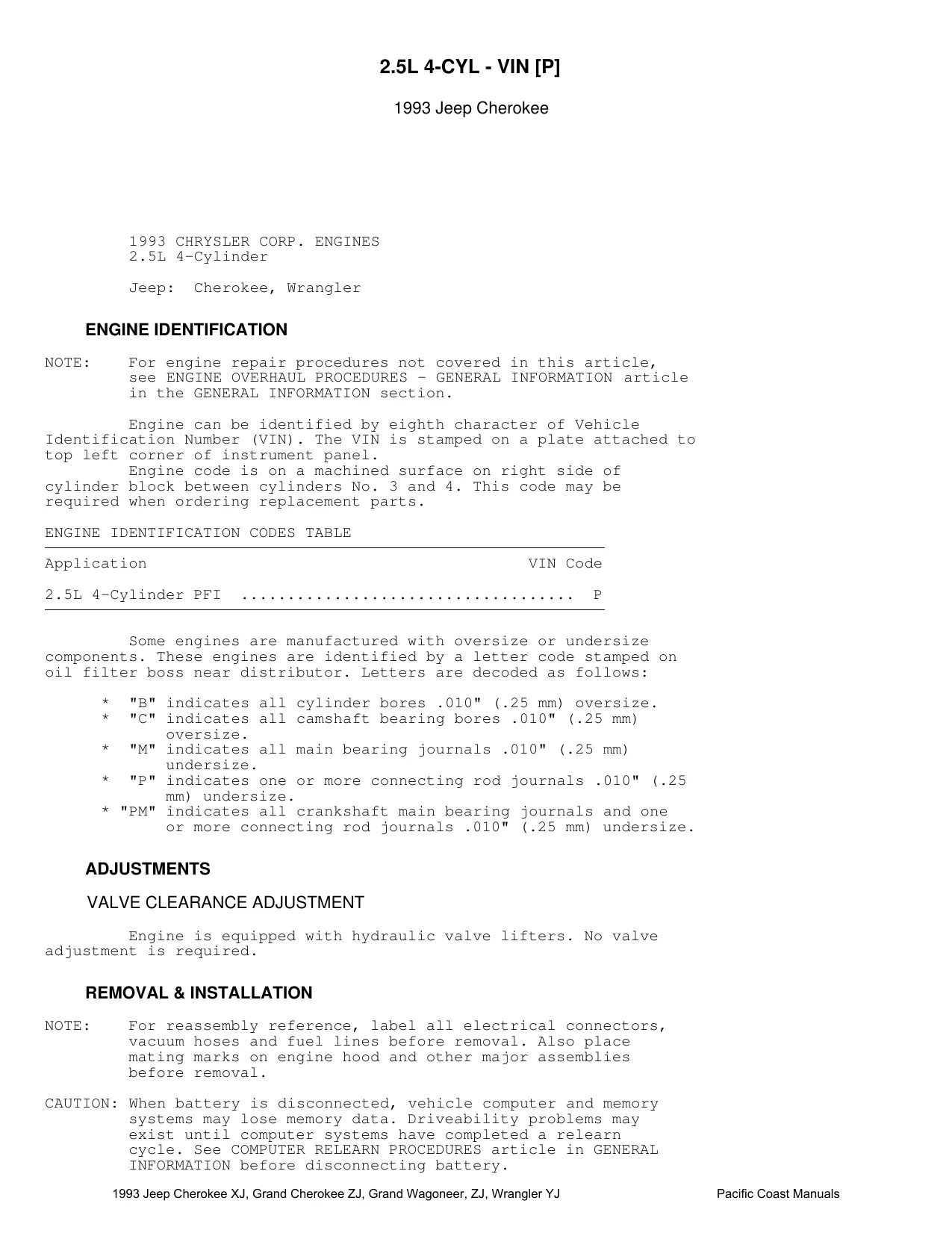

The 2.5L and 4.0L chapters cover manifolds, cylinder heads, front seals, timing chains and sprockets, rocker arms, camshafts, rear main seals, water pumps, oil pans, pistons and connecting rods, crankshafts, cylinder blocks, and oil-pump teardown. Supporting tables provide torque specifications, capacities, clearances, bearing and ring checks, wear limits, and adjustment data.

Engine-performance diagnosis follows a practical path from operating theory and preliminary checks through code-based and symptom-based testing. It covers PCM inputs and outputs, fuel delivery, idle control, ignition, emissions devices, diagnostic connector locations, terminal identification, DRB-II procedures, and circuit-test charts.

The manual flags distributor indexing as a repair trap. Base timing is PCM-controlled, so incorrect distributor positioning after service can cause a no-start or driveability problem that cannot be corrected with a conventional timing-light adjustment.

Transmission, Transfer Case, and Axle Service

AW-4 electronic diagnosis is specifically assigned to 4.0L Cherokee applications. It covers the transmission controller, solenoids, sensors, connectors, trouble codes, and test flowcharts. The separate overhaul booklet adds hydraulic testing, transmission and torque-converter removal, valve-body and check-ball layouts, clutch and brake units, planetary assemblies, oil-pump service, internal inspection, reassembly, and final checks. Manual-transmission coverage identifies AX-5 four-cylinder and AX-15 six-cylinder applications.

The New Process 207/231 and NP/NV242 sections include identification, linkage adjustment, vacuum-switch testing where applicable, seal repair, removal, disassembly, inspection, reassembly, and operational checks. Axle coverage addresses Trac-Lok units, Model 30 front axles, Model 35 rear axles, and the optional Cherokee 8.25 rear axle, along with pinion and carrier work, preload, backlash, runout, tooth-contact patterns, seals, driveshafts, and universal joints. It also warns that mishandling a collapsible pinion spacer changes bearing preload and can force the setup to be repeated.

Chassis, Electrical, Climate, and Diagrams

Depending on model application, additional repair coverage includes Teves Mark IV ABS, disc/drum brakes, clutch, steering, suspension, wheel alignment, Cherokee/Wrangler manual A/C-heater diagnosis, compressor service, alternator and starter repair, parasitic-load testing, instruments, fuses, cruise control, anti-theft, keyless entry, rear defogger, and wiper/washer systems.

Illustrated references include engine tightening sequences and timing-mark views, AW-4 diagnostic flowcharts and valve-body check-ball locations, 2.5L/4.0L/5.2L vacuum diagrams, model-specific ABS wiring, Cherokee Cooling Fan and rear-defogger circuits, and Nippondenso compressor exploded views. The related specifications cover fluid capacities, pressure tests, electrical values, wear limits, clearances, and adjustments.

ABS work requires hydraulic-system depressurization, and A/C repair involves pressurized refrigerant and specialized recovery equipment. Follow the section-specific safety procedures before opening either system.
