Toyota Truck & 4Runner 1985 Repair Manual – 22R & 22R-E (P/N 36246A)
1,025 Pages • 1 Printable PDF (English) • Download
Toyota Models Covered & Key Technical Specifications
Models & Model Codes: Truck (RN50L-KRA in propeller shaft service), 4Runner
Sub-models / Variants: 2WD (RN, W46, W55, or W56 manual or A43D automatic), 4WD (RN, G52 or W56 manual), 22R engine (carbureted), 22R-E engine (fuel injected), Standard, Cab and Chassis
Model Year: 1985
-
Engine oil capacity: 4.6 liters (4.9 US qts, 4.0 Imp. qts) with filter change
-
Coolant system capacity: 8.4 liters (8.9 US qts, 7.4 Imp. qts) with heater
-
Intake valve clearance (hot): 0.20 mm (0.008 in.)
-
Exhaust valve clearance (hot): 0.30 mm (0.012 in.)
-
Idle speed (22R-E): 750 rpm
-
Idle speed (22R): 700 rpm (M/T), 750 rpm (A/T)
-
Spark plug electrode gap: 0.8 mm (0.031 in.)
-
Compression pressure: 12 kg/cm² (171 psi, 1,177 kPa)
-
Transmission oil capacity (W56, 4WD): 3.0 liters (3.2 US qts, 2.6 Imp. qts)
Toyota Manual Features & Selected Content Preview
Toyota’s 1985 factory repair manual (P/N 36246A) covers the 2WD and 4WD Truck and the 4WD 4Runner. It includes the carbureted 22R and fuel-injected 22R-E gasoline engines. Coverage of the turbocharged 22R-TE is limited to a diagnostic-code reference.
PDF Bookmarks and Wiring Diagram Readability
Chapter bookmarks provide navigation through the repair sections and appendices. PDF text search is unavailable. Small wire codes and connector labels on the foldout diagrams are easiest to read when zoomed in.
The download is one printable English PDF with 1,025 pages, including the title page and 70 pages of appendices.
Engine Overhaul, Drivetrain Repair, and Electrical Diagnosis
This selection of workshop topics also gives a sense of the manual’s range. Water-pump service and alternator inspection are two other examples.
- Engine mechanical work includes step-by-step cylinder-head overhaul, valve and camshaft inspection, timing-chain service, and piston, crankshaft, and cylinder-block inspection.
- Fuel and emissions diagnosis covers carburetor rebuilding, 22R-E TCCS trouble-code retrieval, ECU terminal tests, and fuel-pressure checks.
- Transmission and transfer case service includes W46, W55, W56, and G52 manual gearbox overhaul, A43D automatic testing and overhaul, clutch hydraulics, and propeller shaft service.
- Axle, suspension, and brake work covers free-wheeling and automatic locking hubs, Birfield joints, steering-knuckle preload, differential setup, and hydraulic brake repair.
- Body electrical diagnosis includes cruise control, the 4Runner back-door window and rear-wiper interlock, and factory winch service.
- R-12 air conditioning service includes manifold-gauge diagnosis, compressor repair, and electrical circuit checks for the 22R and 22R-E systems.

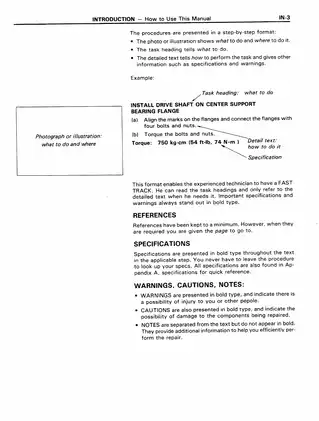

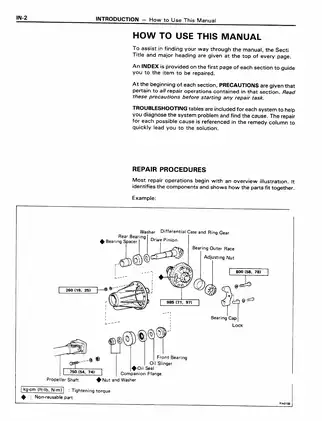

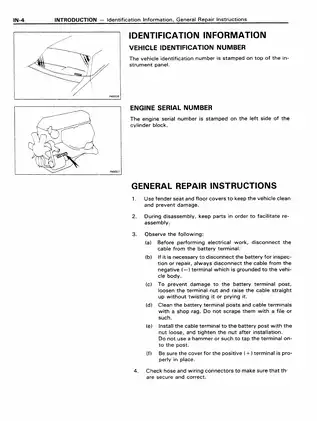

Toyota organized the procedures for experienced technicians, with task headings, illustrations, and specifications alongside the work. The manual suits mechanics and experienced owners familiar with the pullers, presses, meters, and pressure gauges the procedures call for.
Maintenance, Engine, and Fuel Systems
The opening sections give normal- and severe-service schedules, lift and support points, and troubleshooting tables. Engine inspection covers valve guides, rocker arms, and the rotating assembly. Separate sections cover thermostat testing and oil-pump inspection.
The carbureted 22R section distinguishes Federal, California, and Canadian emissions configurations, including mixture control, EGR, air suction, catalyst systems, high-altitude compensation, choke controls, auxiliary acceleration, deceleration fuel cut, and the cold-mixture heater. For the 22R-E, the EFI fault charts and terminal checks help narrow a fault to the air-flow meter, cold-start circuit, injectors, relays, or sensors before parts are replaced.
Transmission, Axles, and Brakes
The A43D section pairs stall, time-lag, line-pressure, shift-point, road, and electrical-control tests with on-vehicle repair and internal overhaul. The manual gearbox chapters cover shaft end play, synchronizers, bearings, and shift forks. The 4WD transfer case section includes seal and bearing service and a final road test.
The chassis sections distinguish 2WD torsion-bar suspension from the 4WD solid front axle and leaf springs. Rear-axle procedures distinguish half-ton, one-ton, Cab and Chassis, and 4WD applications for axle-shaft service and ring-and-pinion setup. The brake section covers the master cylinder, booster, bleeding, parking brake, and load-sensing proportioning and bypass valve.
Two driveline cautions are worth noting. The transfer input-gear splines can damage the adapter’s rear oil seal during removal or installation. Backing off the rear-differential pinion nut after overcompressing the bearing spacer leaves the preload incorrect. The manual also identifies the vehicle support points and precautions for fuel, brake, and R-12 service.
Wiring, Body Work, and Shop References
The diagrams include the A43D D-range first-gear hydraulic circuit and wiring for EFI, emissions, cruise control, the winch magnet switch, and air conditioning. Body procedures cover doors, the removable top, 4Runner quarter windows, glass, seats and belts, and the roll-over bar. Body dimensions are listed separately for 2WD and 4WD.
The appendices collect torque values, fluid capacities, wear limits, preload and backlash figures, electrical test values, and lubricant specifications. Tool references include SST 09634-60013 for 4WD steering-knuckle alignment and preload, SST 09992-00093 for A43D hydraulic testing, and SST 07110-78010 for R-12 manifold-gauge work.
Sample A43D Test Limits and 4WD Caster Specs
For the A43D time-lag test, with the engine idling, A/C off, and fluid at 50–80°C (122–176°F), Toyota specifies an average of less than 1.2 seconds from Neutral to Drive and less than 1.5 seconds from Neutral to Reverse.
The 4WD front-wheel alignment table gives different caster specifications for the two models. The Truck is listed at 2°15′ ± 1° and the 4Runner at 3°00′ ± 1°.
