KTM 125/200 SX/MXC/EXC Engine Repair Manual 1998–2003 (P/N 3.206.005-E)

158 Pages • Printable PDF • 14.69 MB • Download

5.0starstarstarstarstar(1)
$13.49 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

KTM Models Covered & Key Technical Specifications

Models: 125 SX, 125 EXC, 125 EGS, 125 EXE, 200 MXC, 200 EXC, 200 EGS, 125 Supermoto

Sub-models / Variants: SX, MXC, EXC, EGS, EXE, Supermoto, 2-stroke, 5-/6-speed, Liquid-cooled, Single-cylinder

Trade Names: KTM 125, KTM 200

Model Years: 1998–2003 (1998, 1999, 2000, 2001, 2002, 2003)


  • Engine Displacement: 124.8 ccm (125 models) and 193 ccm (200 models)

  • Bore/Stroke: 54.25/54 mm (125 SX/EXC through 2000 and 125 EGS), 54/54.5 mm (125 SX/EXC from 2001 and 125 EXE/Supermoto), and 64/60 mm (200 models)

  • Clutch: Multi-disc, hydraulic operated

  • Transmission: 5-speed (125 SX, 2003) or 6-speed (earlier 125 SX and the other listed models), claw-actuated

  • Ignition System: Kokusan 2K-1, 2K-2, 2K-3 variants

  • Spark Plug Electrode Gap: 0.60 mm (0.024 in)

  • Ignition Timing: 1.4 mm BTDC (125 SX/EXC/EGS) or 1.6 mm BTDC (200 models)

  • Coolant Capacity: 1.2 liters (SX/MXC/EXC/EGS) or 0.8 liters (125 EXE/Supermoto), with 40% antifreeze/60% water

KTM Manual Features & Selected Content Preview

KTM’s 125/200 engine repair manual, P/N 3.206.005-E, is the November 2002 edition incorporating the 2003 updates. It covers 125 SX/EXC/EGS and 200 SX/MXC/EXC/EGS engine applications, with dedicated material for the 125 EXE and 125 Supermoto.

PDF Text Search, Bookmarks and Wiring Detail

Search and diagram access: Repair procedures and specification tables have searchable text, but labels in several wiring diagrams are not searchable. Embedded bookmarks reach the main chapters; some service-information entries have no working page destination. Small wire-color and connector labels in the checked diagrams are readable with zooming.

One printable, 158-page PDF, including seven cover and introductory pages, 20 blank pages and three nearly blank divider pages.


Engine Rebuilds, Exhaust Control and Ignition Testing

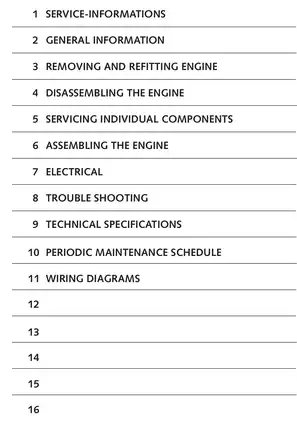

The coverage highlights below are a selection from the manual rather than a complete table of contents. Other topics include intake-flange inspection and kickstarter component checks.

  • Engine removal and teardown: Step-by-step procedures for removing and reinstalling the engine, separating the crankcases, and removing the crankshaft and transmission.

  • Cylinder and exhaust control: Piston and cylinder inspection, cylinder-head assembly, exhaust-control disassembly, and control-flap inspection and adjustment.

  • Clutch and transmission: Primary-drive and clutch service, hydraulic-clutch bleeding, gear and shaft inspection, and shift-mechanism assembly.

  • Fuel, lubrication and cooling: Carburetor adjustment, oil-pump procedures for models with separate lubrication, water-pump service, and cooling-system refilling.

  • Electrical diagnosis: Stator and pulse-generator checks, peak-voltage measurements, ignition-coil tests, and regulator and capacitor testing.

  • Workshop references: Troubleshooting charts, periodic maintenance schedules, exploded views, tightening torques, fitting clearances, and model-specific wiring diagrams.

KTM wrote this manual for qualified, professionally trained mechanics and assumes familiarity with general workshop methods and safety practices.

Engine Disassembly and Assembly Details

The manual distinguishes work that can be performed with the engine in the frame from jobs requiring engine removal. That distinction helps a mechanic plan the repair before committing to a complete teardown.

Internal service covers crankshaft bearings, cylinder wear and Nikasil coating, piston inspection, and the exhaust-control mechanism. Cylinder assembly includes piston-height adjustment, identified as Dimension X, and control-flap adjustment, identified as Dimension Z. Installation notes also address engagement between the centrifugal timer’s rocker arm and the cylinder’s control segment.

Exploded clutch and transmission-shaft views show disc arrangements and gear orientation alongside the inspection text. The clutch-release section relates Dimension Y to slave-cylinder gasket selection, while the shifting chapters distinguish earlier and revised shift-shaft assemblies.

The shift-drum locating instructions warn that incorrect holding methods can damage the bushings on the shift-fork driving pins. The special-tool reference identifies holding plate 503.29.038.000 for the locating drum.

Carburetion, Separate Lubrication and Water Pump Service

Keihin PWK 39 and PWK 38 AG setting charts organize jetting by model, temperature and altitude. Separate Dell’Orto PHBH 28 tables cover the EXE and Supermoto configurations, including their different speed versions.

Oil-pump instructions distinguish the EXE/Supermoto alignment reference from other separately lubricated applications. Water-pump coverage extends to shaft, bearing, seal and drive-wheel inspection, rather than stopping at coolant specifications.

Ignition Fault Finding and Wiring References

Electrical testing separates the Kokusan systems and market configurations instead of applying one test specification throughout. Peak-voltage circuit diagrams accompany the ignition and generator checks; wiring references include European and US EXC applications, EGS models, and EXE/Supermoto lighting and oil-level circuits.

The troubleshooting charts connect symptoms such as starting failure, poor idle, reduced power and overheating with possible causes and the relevant checks. These references help distinguish fuel-system, mechanical and electrical fault paths.

CDI testing has a specific equipment limit: KTM specifies an ignition test bench for checking CDI function and warns that ordinary measuring equipment can damage its electronic components. Ignition work requires the specified test equipment and appropriate workshop precautions.

Preview: Primary Drive Torques and Clutch Wear Limits

The assembly data specifies 180 Nm for the left-hand-threaded primary sprocket nut and 120 Nm for the inner clutch hub nut.

Clutch inspection lists a minimum friction-disc thickness of 2.9 mm. Clutch springs are listed at 39 mm when new, with a minimum length of 38 mm; the accompanying inspection text also addresses hub grooves and disc condition.
