JOHN DEERE 317, 320, and CT322 Repair Manual

Repairing heavy-duty hydraulic circuits and undercarriage systems requires adherence to specific factory-validated engineering tolerances to prevent premature component failure. This technical manual provides the professional technician with the essential torque patterns and assembly clearances necessary for restoring machine performance to OEM standards. Managing specialized maintenance for both skid steer and compact track variations is streamlined through the use of these detailed mechanical protocols and illustrated teardown sequences.

Equipment Lifecycle & ROI Protection

• Avoid expensive component damage by utilizing precise torque specifications for all internal engine and hydraulic fasteners.
• Protect the integrity of the hydraulic system by implementing the documented O-ring face seal and flange installation procedures.
• Reduce equipment downtime by referencing organized diagnostic groups that identify required specialized tooling before beginning repairs.
• Maximize the service life of undercarriage tracks and rollers through the application of specific wear-limit benchmarks and lubrication volumes.

Full Coverage Architecture & Entity Identification

Actionable repair data in this technical volume covers the following primary models and equipment series:

• Skid Steer Models: John Deere 317 / John Deere 320
• Compact Track Models: John Deere CT322
• Engine Entities: PowerTech 2.4 L Diesel / PowerTech 3.0 L Diesel
• System Focus: Coverage includes 120 Series Hydraulic Cylinders and specialized vertical-lift loader linkages for these specific serial ranges.

Documentation Logistics

• Total Pages: 1009
• Document Number: TM2152
• Publication Date: April 28, 2011
• File Format: PDF

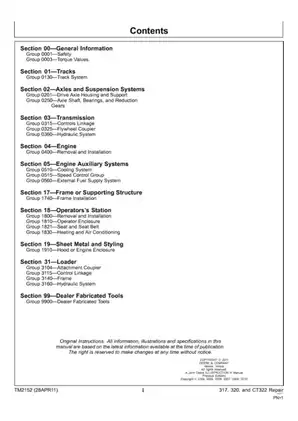

Content Hierarchy & Technical Chapters

• Section 00: General Information (Safety Protocols / Fastener Torque Standards)
• Section 01: Tracks (Track System / Undercarriage Adjustments)
• Section 02: Axles and Suspension Systems (Drive Axle Housing / Bearings)
• Section 03: Transmission (Controls / Couplers / Auxiliary Hydraulics)
• Section 04: Engine (Removal and Installation Procedures)
• Section 05: Engine Auxiliary Systems (Cooling / External Components)
• Section 18: Operator’s Station (Seating / HVAC / Control Panels)
• Section 31: Loader (Linkages / Hydraulic Cylinders)

Service Standards & Engineering Benchmarks

Diagnostics & System Logic

Focus is placed on the evaluation of high-pressure hydraulic circuits and track tensioning systems to ensure operational safety. Diagnostic protocols include detailed inspections for metal face seal leaks, track lug wear patterns, and hydraulic cylinder drift measurements. Logic-based troubleshooting trees guide the technician through identifying flow restrictions, drive motor inefficiencies, and control linkage calibration issues common to high-hour units.

Schematic Clarity & Visual Reference

The manual incorporates high-resolution technical illustrations for complex assemblies such as track rollers, drive motor housings, and valve manifolds. These visual paths include detailed exploded views that clarify the orientation of internal components like snap rings, shims, and O-rings. Accurate wiring and hydraulic routing diagrams allow for precise tracing of electrical and fluid circuits, supporting deep-level repair of the loader's most critical systems.

FAQ

What models and specific engine platforms are treated in this shop manual? This technical manual provides comprehensive repair procedures for the John Deere 317 and 320 Skid Steer Loaders, as well as the CT322 Compact Track Loader. Technical coverage includes specific data for PowerTech 2.4 L and 3.0 L diesel engine platforms, ensuring technicians have the correct tolerances for these primary power units.

What are the critical undercarriage wear limits for the CT322 track system? Field uptime is directly tied to monitoring the rubber track lug height to prevent structural core damage. Technicians must measure the height of the rubber track lugs and initiate a replacement if the measurement falls below the minimum specification of 5 mm (0.2 in.). Maintaining these benchmarks ensures proper traction and protects the track rollers from premature wear.

What is the required torque for the track roller-to-frame cap screws on compact track loaders? When installing the 26.3 kg (58 lb) track rollers, it is critical to use medium-strength threadlock and adhere to high-torque standards for structural integrity. The two cap screws securing each roller must be tightened to a specific value between 592-696 Nm (437-513 lb-ft). This high clamp load prevents the rollers from loosening under the extreme vibrational loads typical of heavy machinery operation.

How should O-ring face seal fittings be prepared to ensure hydraulic logic integrity? To prevent hydraulic leaks in systems operating near 27,600 kPa (4,000 psi), O-ring face seal (ORFS) fittings must be lubricated with a thin film of petroleum jelly before assembly. A critical shop step involves placing electrical tape over the fitting threads during O-ring installation to prevent the threads from cutting the seal. Once seated, a 9/16-18 thread size nut, for example, requires a torque of 16 Nm (12 lb-ft) to ensure a leak-free connection.

What are the lubricant specifications and capacities for the track roller assembly? The internal bushings and axle shaft of each track roller rely on a precise volume of gear oil for cooling and lubrication. During assembly, the roller housing must be filled with 225 mL (7.6 oz) of SAE 80W-90 gear oil that meets API Service GL-5 standards. After filling, the roller plug must be torqued to 21-26 Nm (16-19 lb-ft) to maintain the seal integrity of the metal face seals.
