1985-1992 Toyota Hilux / 4-Runner Service Manual
Technical reference spanning 1985-1992 Toyota Hilux and 4-Runner models, covering manual transmission service procedures and component diagnostics. Ref: a187-4x4-hilux.zip
Manual Preview
Sample pages from the 1985-1992 Toyota Hilux / 4-Runner Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Toyota Hilux / 4-Runner (a187-4x4-hilux.zip) Manual: Toyota Hilux - Manual Transmission PDF (1985-1992) Hydraulic-Guide Technical Reference spanning 1985-1992 Toyota Hilux and 4-Runner models, covering manual transmission service procedures and component diagnostics. Ref: a187-4x4-hilux.zip | Volume Library.
Documented Technical Data: 0.3 mm is the minimum rivet depth specified for clutch disc wear inspection. Technical Specifications Data: 0.8 mm is the maximum runout allowed for clutch disc assembly. Universal Wear Limits: 0.2 mm is the maximum runout permitted for flywheel runout measurements. Maximum Torque Values: 130 kg-cm specifies the tightening torque for the clutch release cylinder installation. System Bearing Loadings: 195 kg-cm is the specified torque for the pressure plate installation. Prescribed Clearance Range: 0.10 - 0.25 mm is the standard clearance for gear thrust measurements.
Professional Workshop Service Manual & Technical Specifications
Toyota Hilux / 4-Runner (a187-4x4-hilux.zip) Manual: Toyota Hilux - Manual Transmission PDF (1985-1992) Hydraulic-Guide
Validation-Data: Toyota Hilux / 4-Runner (a187-4x4-hilux.zip) // Design-Core: Truck / Manual Transmission Logic // Validation-Data: Service Manual
Factory procedures are documented for the following systems: component specifications, removal procedures, disassembly instructions, and assembly guidelines.
Specifications
| Specification | Value | Calibration-Standards |
|---|---|---|
| Clutch Disc Wear | 0.3 mm | Minimum rivet depth |
| Clutch Disc Runout | 0.8 mm | Maximum runout |
| Flywheel Runout | 0.2 mm | Maximum runout |
| Clutch Release Cylinder Torque | 130 kg-cm | Installation torque |
| Pressure Plate Torque | 195 kg-cm | Installation torque |
| Gear Thrust Clearance | 0.10 - 0.25 mm | Standard clearance |
Procedures

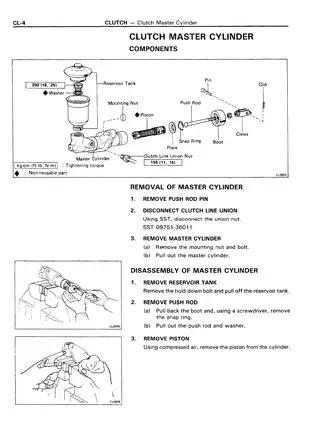

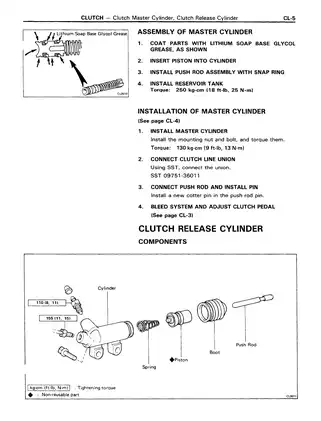

This manual documents the procedures for the removal and installation of key transmission components, including the clutch assembly, release cylinder, and master cylinder. It also provides guidance on the disassembly and reassembly of various internal parts.
Diagnostic Procedures

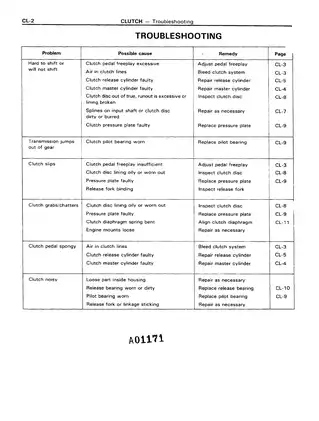

Diagnostic procedures are covered for common issues such as hard shifting, clutch slippage, and noisy clutch operation, referencing specific troubleshooting steps and component inspections.
Component Specifications
Reference data is included for critical component specifications, including oil clearances, thrust clearances, and torque values for critical fasteners to ensure proper assembly.
System Diagrams
This manual covers system diagrams for the manual transmission, illustrating the location and function of various components within the system.
Wiring Diagrams
Wiring diagrams are provided for the diagnostic systems, aiding in the identification and resolution of electrical issues related to the transmission controls.
Fundamentally requiring proper torque specifications for fastener fatigue prevention, this manual documents torque specifications for transmission components to ensure proper fastener fatigue prevention.
