John Deere Gator 4x2/6x4 UTV Technical Manual, 2004 (P/N TM1518)

John Deere Technical Manual P/N TM1518, September 2004, North American Version, covers the Gator 4x2 gas, 6x4 gas, and 6x4 diesel utility vehicles. Service information is organized by machine configuration, engine build, and component-specific serial breaks.

Searchable PDF with Detailed Bookmarks

Text search and diagram detail: The PDF has searchable text and embedded bookmarks for chapters and individual procedures. Small wire codes and connector labels are readable when enlarged. Some lighting diagrams show existing reference circuits in light gray.

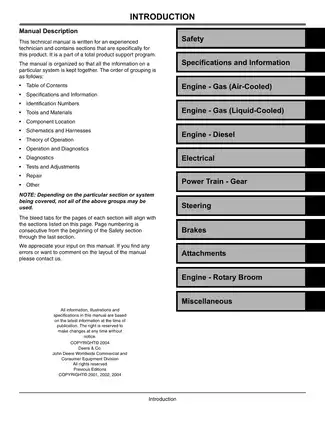

The ZIP contains one printable, 702-page PDF. This total includes the cover, introduction, two unnumbered blank pages, and a 14-page index.

Gator Engine, Drivetrain and Electrical Service

The selected coverage below highlights major workshop sections. Other included topics range from front-wheel bearing replacement to shock ride-height and spring-preload adjustment.

• Engine repair: Engine removal, cylinder-head work, valve-seat reconditioning, crankshaft and piston inspection, cylinder service, lubrication-system checks, and internal repair procedures.

• Fuel and cooling: Carburetor service, fuel-pump tests, diesel injection-nozzle testing and pump timing, radiator pressure tests, thermostat checks, and cooling-system filling procedures.

• Clutches and transaxles: Drive-belt inspection, primary and secondary clutch service, gear-transaxle disassembly, differential-lock adjustment, model-specific drive axles, and 6x4 drive-chain adjustment.

• Electrical diagnosis: W1, W2, and serial-specific W3 schematics, harness layouts, wire-color tables, component locations, circuit-operation descriptions, and diagnostic charts.

• Steering and brakes: Troubleshooting test points, toe-in adjustment, steering gear and spindle service, brake-linkage adjustment, and brake removal and installation.

• Attachments and accessories: Cargo-box lift, front blade, hour meter, lighting and horn kits, backup alarm, and rotary-broom electrical, hydraulic, and engine service.

John Deere wrote this manual for experienced technicians.

Gas-Engine Repair and Build Differences

Kawasaki FE290D-BS08: Step-by-step instructions cover carburetor disassembly and assembly, cylinder-head repair, and internal engine work. Diagnostic material includes fuel-pump tests, automatic compression-release checks, crankcase-vacuum testing, and oil-pressure testing.

The repair section extends to the camshaft, reciprocating balancer, cylinder reboring, oil pump, governor, starting motor, and recoil starter. Flywheel illustrations distinguish the FE290D-AS08 and FE290D-BS08 designs.

Kawasaki FD620D: The AS11–JS11 material distinguishes governor, idle, throttle, and pedal adjustments by engine build. These differences matter when selecting an adjustment procedure; the early and later control arrangements are not interchangeable references.

Cooling-system coverage includes radiator bubble and pressure tests, thermostat testing, water-pump inspection, and radiator drain, flush, fill, and bleed procedures. Internal repair addresses the cylinder heads, crankcase cover, oil pump, camshaft, pistons, cylinders, connecting rods, crankshaft, and starting motor.

Yanmar Diesel Diagnosis and Repair Limits

The diesel chapter explains fuel, cooling, lubrication, and air-system operation before its troubleshooting charts and test points. Procedures include compression and injection-nozzle testing, fuel-system bleeding, cylinder-head reconditioning, timing-gear and camshaft inspection, bearing-clearance checks, piston and cylinder service, oil-pump work, starting-motor repair, and alternator service.

The 3TN66C-JUV through engine S/N 013716 and 3TN66C-EJUV from engine S/N 013717 have separate injection-pump timing and removal information.

For the EJUV, fast idle is factory-set and not adjustable. Injection-pump and governor repairs require replacement of the complete assemblies; the manual reserves their removal and installation for authorized, factory-trained technicians. The governor disassembly section applies to the JUV engine.

Clutch, Transaxle and Chassis Work

Power-flow explanations accompany drive-belt checks, shift-linkage adjustment, secondary-clutch backshifting and spring checks, diesel clutch center-distance measurement, differential-lock linkage adjustment, and internal transaxle inspection.

The repair section identifies clutch changes above W004X2X037280, W006X4X039286, and W006X4D009699. These distinctions help a technician select the appropriate clutch parts and service information before starting work.

Later gas-engine cam weights with D-shaped mounting holes cannot be used in the earlier clutch design. The manual also warns that uneven force on the clutch spider can fracture the clutch towers; early and late secondary-clutch mountings differ in thread direction and input-shaft arrangement.

Steering procedures cover steering-wheel adjustment, tie-rod ends, steering gear, spindle shafts, and bushings. Brake diagnosis follows the pedal and linkage through to the internal transaxle brake components.

Schematics, Lighting and Rotary-Broom Systems

Representative drawings include the W1 Standard Electrical Schematic — 4x2 Gas, W2 Standard Electrical Schematic — 6x4 Gas, four serial-specific W3 Standard Electrical Schematics — 6x4 Diesel, glow-plug and fuel-supply schematics, the transaxle component and power-flow view, and the rotary-broom hydraulic schematic.

Circuit-specific tests address cranking, charging, ignition, indicators, radiator fans, headlights, and accessories. Lighting coverage distinguishes the earlier W18 and later W30 North American/European light-and-horn kits from the W19 road-homologated system.

Rotary broom: Electrical diagnosis covers lift, angle, and PTO functions, with harness drawings and switch and relay tests. Hydraulic procedures include pressure-relief and pump-flow testing, plus removal and installation of the motor/pump assembly and lift and angle cylinders. Brush-head bearing replacement is also covered.

A separate engine section addresses the Kohler Command Pro 10 CS10RT, including carburetor work, governor adjustment, valve service, internal inspection, and recoil-starter repair.

Factory Specifications and Workshop Tools

Component-specific torque tables, capacities, wear limits, clearances, adjustment data, electrical test values, and approved materials accompany the repair sections.

John Deere SERVICE-GARD references include the JT05719 tachometer, JDG356 fuel-pump pressure kit, JDM59 and JT01682 compression gauges, JT05577 pressure-gauge assembly, JDG813 clutch tooling, and JDG1175-2 center-distance gauge. These references identify the workshop equipment associated with the documented tests and repairs.

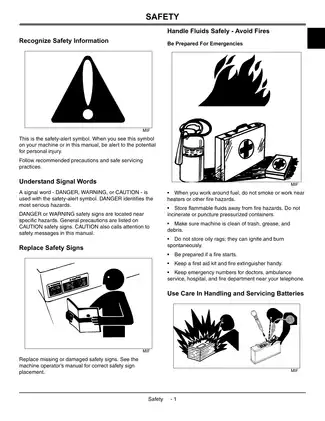

Fuel, batteries, hot cooling systems, rotating clutches, heavy drivetrain parts, and pressurized broom hydraulics require the precautions described in the safety section, including electrical isolation, pressure relief, and secure component support.

Selected Valve-Clearance and Belt Inspection Data

The FE290D specifications list cold intake and exhaust valve clearance at 0.125 ± 0.025 mm. The FD620D uses a cold clearance of 0.25 mm, illustrating why the engine-specific adjustment data matters.

For drivetrain inspection, the manual lists drive-belt width as 30.2 mm when new and 27 mm minimum. These are selected examples from the engine-adjustment and powertrain specifications.
