Kia Optima 2012 Service Manual Set: 2.0 T-GDI & 2.4 GDI

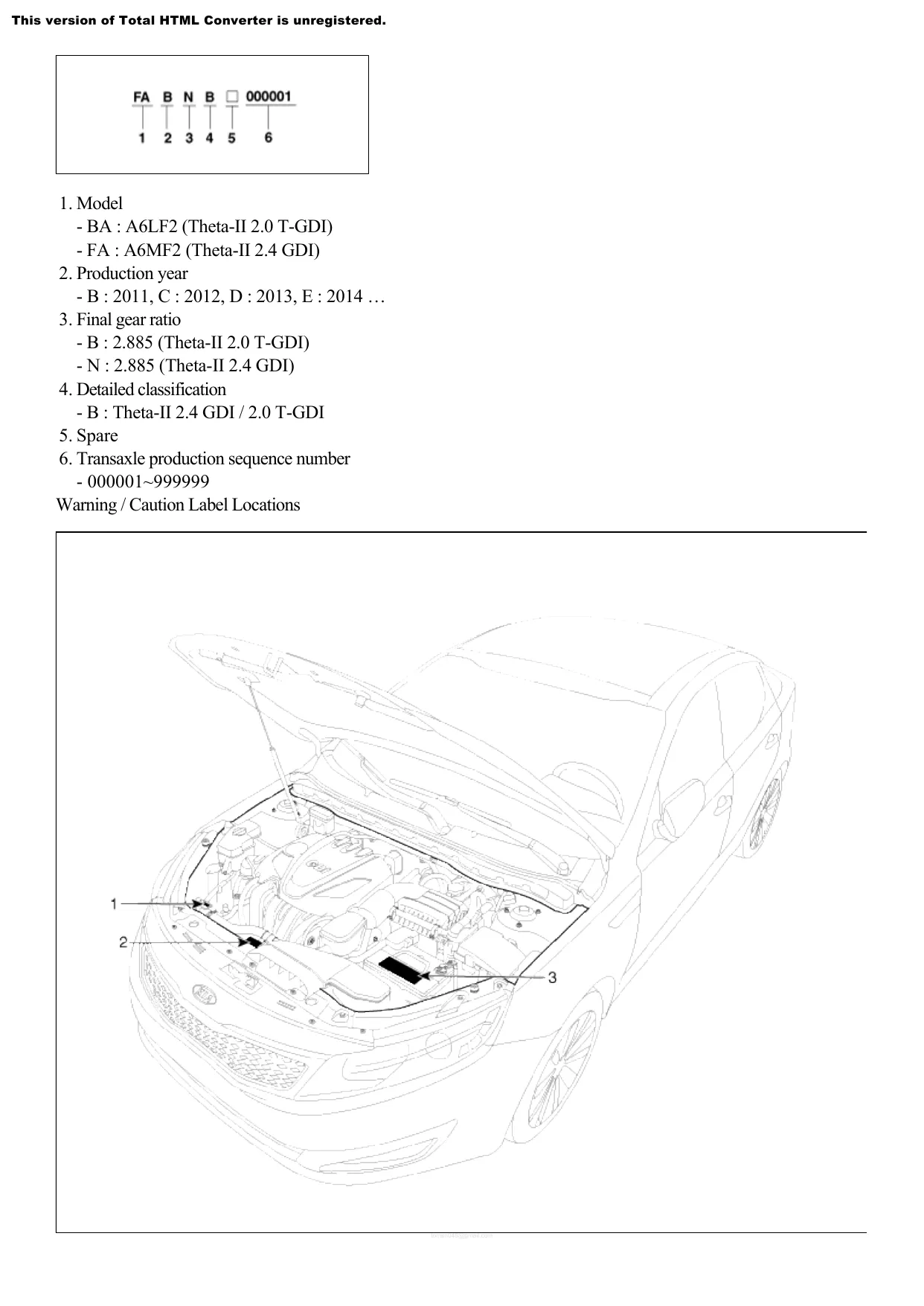

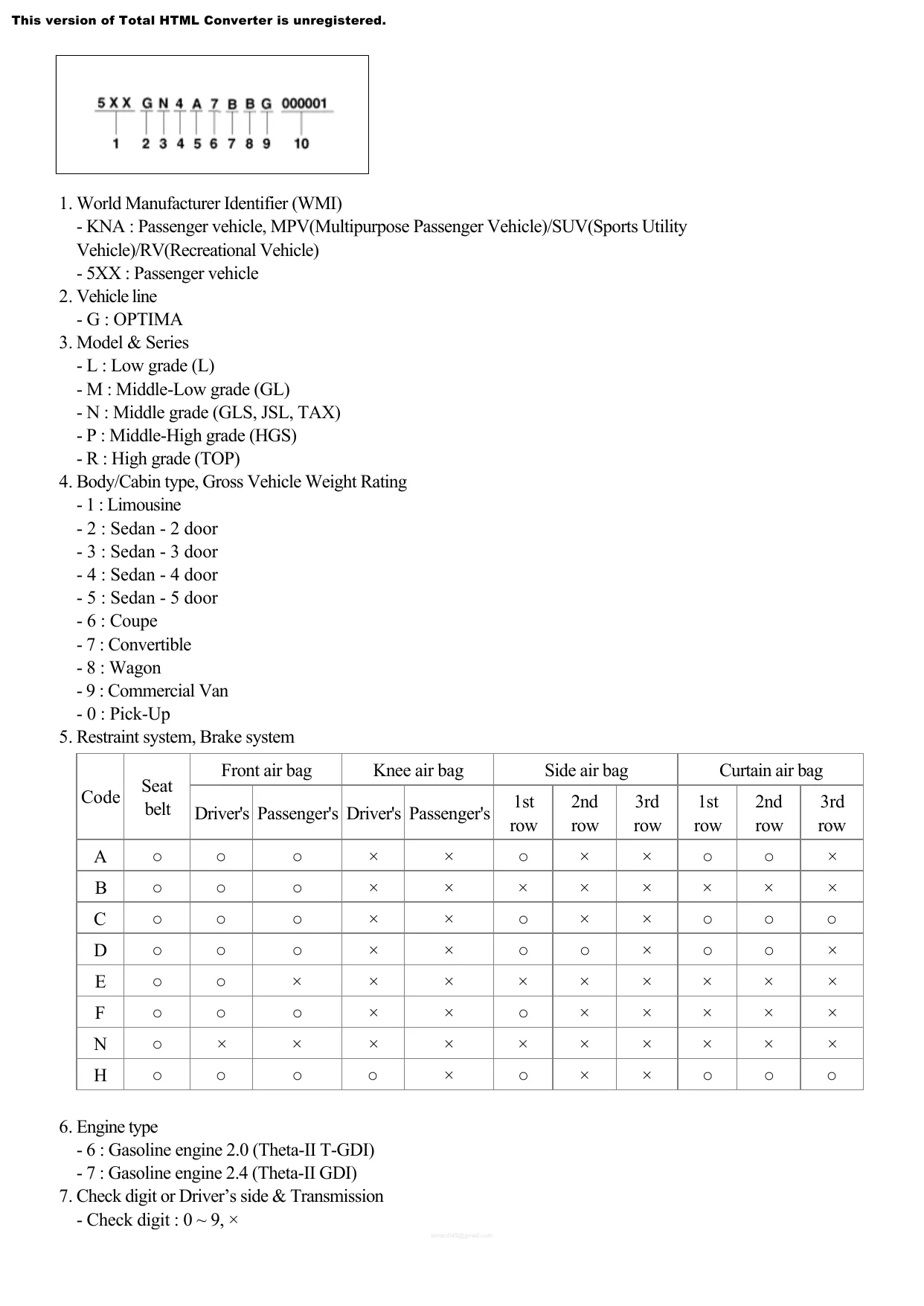

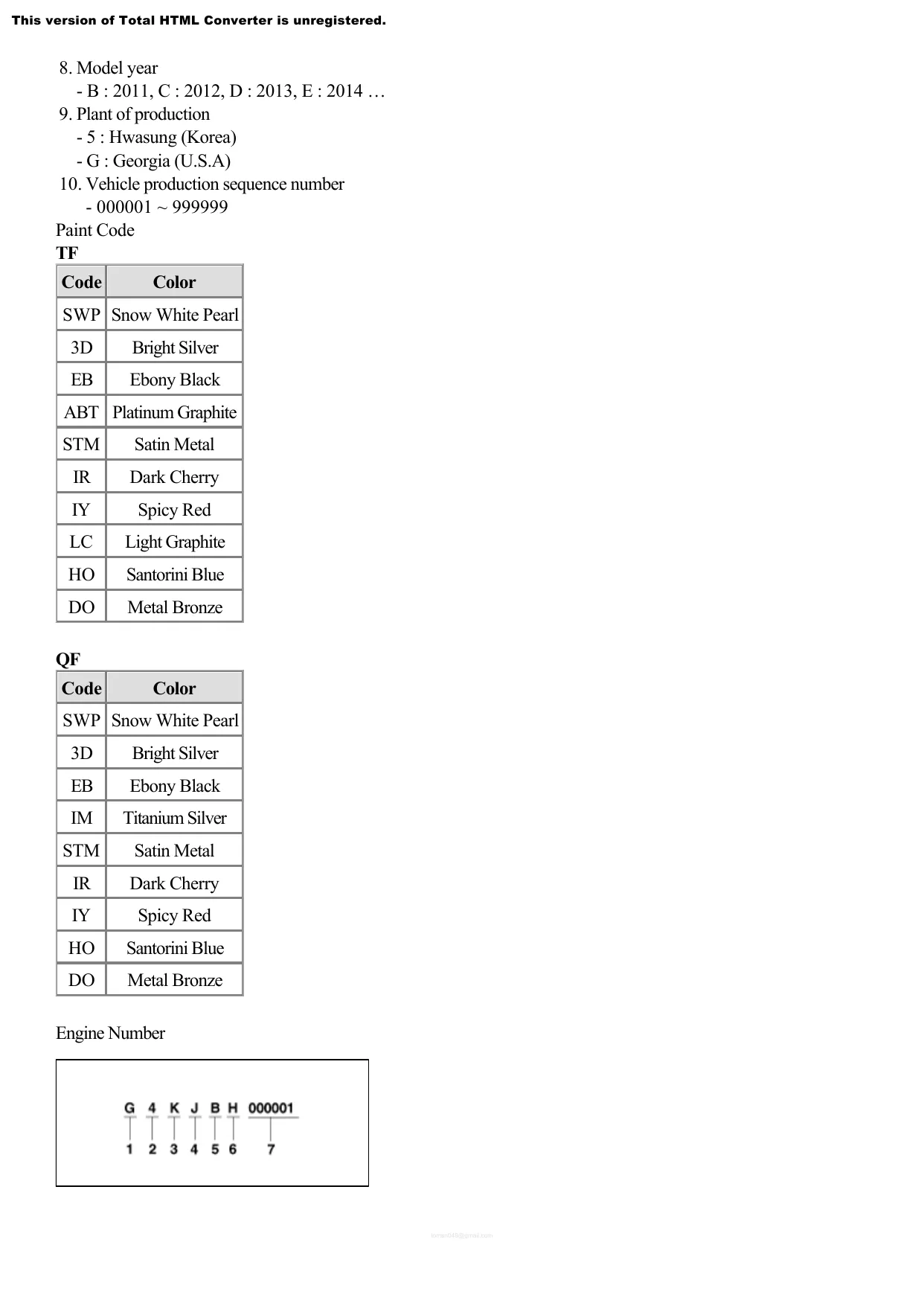

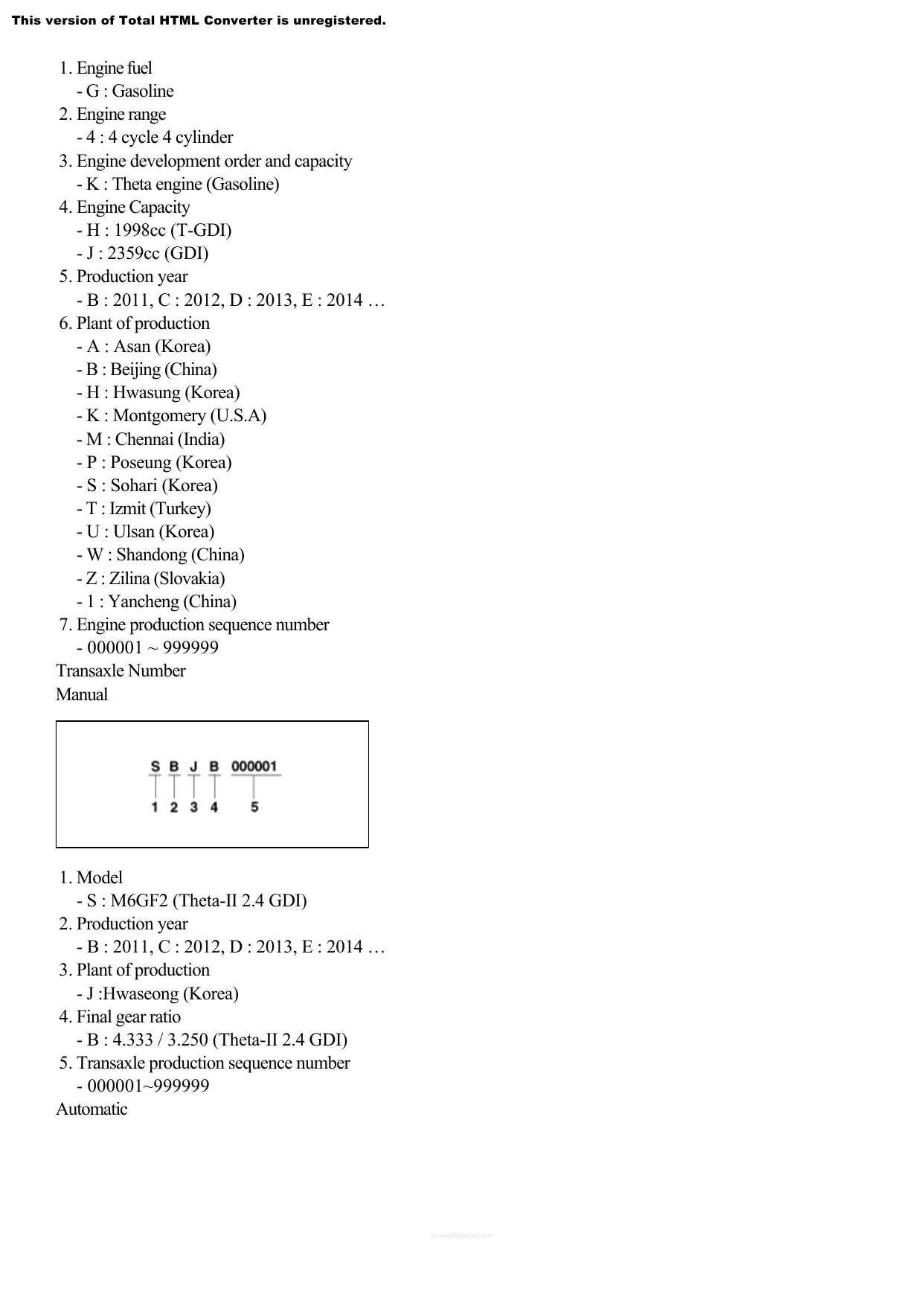

Use the volume matching the vehicle’s engine for powertrain work; each also contains body, chassis, and electrical references. Identification sections explain VIN, engine, and transaxle numbering and identification locations.

Internal transaxle overhaul procedures are not included. The 2.4L PDF’s Restraint section contains only a heading page; detailed SRS material is in the 2.0L volume.

Searchable Text, Chapter Bookmarks, and Diagram Detail

Text search and schematic readability: Both PDFs have searchable body text and chapter bookmarks. Labels embedded in diagram images are not searchable. Small labels require zooming, and fine details in dense smart-key schematics remain faint or difficult to read. Printing is allowed; copying and editing are restricted. Conversion notices appear in page headers and footers.

The ZIP contains two printable English-language PDFs totaling 2,846 pages, including two end pages without service content and the 2.4L restraint heading page.

Theta-II Powertrain Repair and Vehicle Systems

The following selected topics show the repair and diagnostic coverage rather than a complete contents list. Other examples include cruise-control troubleshooting and heated steering-wheel testing.

• Engine mechanical repair: Step-by-step procedures for compression and valve-clearance checks, engine/transaxle removal, timing-chain and CVVT service, cylinder-head and block work, cooling, and lubrication.

• Engine-specific systems: Turbocharger, intercooler, electric wastegate, and recirculation-valve diagnosis for the 2.0L; ULEV/SULEV exhaust layouts and variable intake solenoid service for the 2.4L.

• Transaxle and clutch service: Automatic valve-body work, fluid service, control-solenoid diagnosis, and TCM learning; manual-transaxle removal and hydraulic-clutch procedures in the 2.4L volume.

• Brakes, steering, and suspension: Brake/ESC diagnosis, driveshaft and hub repair, MDPS calibration, suspension replacement, wheel alignment, and TPMS service.

• Body and air conditioning: Collision dimensions, glass and panoramic-roof repair, plus R-134a recovery, evacuation, charging, and leak-testing procedures.

• Electrical diagnosis: System schematics, connector data, signal waveforms, GDS checks, and troubleshooting tables for engine controls and body electrical systems.

• Workshop reference data: Component torque charts, fluid specifications, wear limits, inspection clearances, adjustment data, and special-tool references.

This material is best suited to experienced technicians and well-equipped repair shops with GDS access, model-specific tools, refrigerant equipment, and powertrain lifting gear.

Theta-II Cylinder Head and Block Repair

Cylinder-head material covers camshafts and journals, valves and seats, mechanical lash adjusters, stem seals, and head-flatness inspection. Block procedures extend to pistons and rings, connecting rods, crankshaft journals, bearing selection, oil-clearance checks, and end play.

Ladder-frame sealing and balance-shaft/oil-pump timing are also documented. Separate engine tables help select the appropriate inspection limits, oil recommendations, cooling data, and tightening sequences for the powertrain being serviced.

The oil-pan removal section identifies the ladder-frame and pan mating surfaces as damage-sensitive areas; damaged sealing faces can create a leak path during reassembly.

GDI Fuel Delivery and Emissions

Fuel-system coverage follows the in-tank pump through the high-pressure pump, delivery pipe, rail-pressure sensor, and injectors. Procedures address fuel-pressure testing, injector combustion-seal sizing, ECM connector checks, sensor waveforms, and ECM VIN programming.

Emissions material covers crankcase ventilation, evaporative controls, the canister and close valve, oxygen sensors, catalyst operation, and CVVT-related controls.

The fuel procedures identify the high-pressure pipe as non-reusable. They also describe the risk of internal damage or injector-tip damage when the delivery-pipe and injector assembly is dropped or struck.

A6LF2, A6MF2, and M6GF2 Service Depth

Automatic-transaxle sections explain the clutch and brake elements, hydraulic system, oil pump, valve body, TCM, inhibitor switch, speed and temperature sensors, and pressure-control and shift solenoids.

Service material includes circuit and signal checks, DTC clearing, value reset, and the learning requirements associated with transaxle, TCM, or valve-body replacement.

For the 2.4L manual configuration, the M6GF2 chapter includes oil inspection and replacement, unit removal and installation, shift-lever and cable adjustment, and back-up lamp switch testing. Clutch coverage adds disc and cover inspection, pedal checks, master-cylinder service, concentric-slave-cylinder replacement, and hydraulic bleeding.

Brake, MDPS, and Suspension Work

Brake sections address the booster, master cylinder, lines, disc assemblies, parking brake, ESC/EBD control, wheel-speed sensors, and yaw/lateral-acceleration sensor. GDS-assisted HCU bleeding is included.

Steering material adds column and steering-gear repair, MDPS absolute-position calibration, and EPS type recognition. Chassis procedures cover struts, suspension arms, crossmembers, driveshafts, hubs, alignment, and TPMS sensor/receiver service.

Body Electrical, HVAC, and Restraints

Body and electrical chapters cover BCM/SJB, smart-key and immobilizer learning, push-button start, lighting, power accessories, rain sensors, seats, parking assist, and audio/AVN. Engine electrical material includes charging-system tests, alternator disassembly, and starter inspection and disassembly.

HVAC sections extend beyond refrigerant service to compressor, condenser, receiver-drier, heater, blower, sensor, actuator, and control-unit work.

The detailed 2.0L restraint chapter addresses the SRSCM, impact sensors, weight-classification system, airbags, pretensioners, and variant coding.

System Schematics and Special Tools

Diagram examples include the Turbocharger Diagnostic Flow, automatic-transaxle Clutch & Brake Flow Diagram, ESC Hydraulic System Diagram, MDPS Circuit Diagram, Smart Key Unit Circuit Diagram, and engine-control sensor circuits. Electrical diagrams are organized within the repair chapters rather than supplied as a separate full-vehicle wiring-diagram manual.

Tool references include the 09200-38001 engine support fixture, 09215-3C000 oil-pan remover, and 09221-4A000 torque-angle adapter. GDI work references the 09314-3Q100 high-pressure fuel-pipe socket and 09353-2B000 injector combustion-seal guide and sizing tool.

Powertrain lifting, GDI fuel work, brake/ESC service, SRS handling, and refrigerant repair require the system-specific support, pressure-release, recovery, and electrical-isolation precautions described in the manuals.

Selected Valve-Clearance and Sensor Specifications

At an engine coolant temperature of 20°C (68°F), the exhaust-valve clearance specification is 0.32–0.38 mm for the 2.0 T-GDI and 0.27–0.33 mm for the 2.4 GDI. These are the standard specifications, distinct from the separately listed inspection limits.

Both engine-control sections provide an engine coolant temperature sensor resistance specification of 2.31–2.59 kΩ at 20°C (68°F), alongside the sensor inspection procedure and circuit diagram.
