Kia Sorento 2012 Service Manual Set – 2.4 MPI/GDI & 3.5 MPI

Use the engine-specific volume for powertrain work. Each also contains chassis, body, and electrical information, so those shared sections appear in more than one file.

PDF Search, Chapter Bookmarks, and Diagram Detail

Text and circuit labels: Main text and specification tables support text search, while many diagram labels are embedded in images and are not searchable. All three PDFs have chapter bookmarks. Small wiring labels require zooming, and some fine ECM and ESC labels remain soft when enlarged.

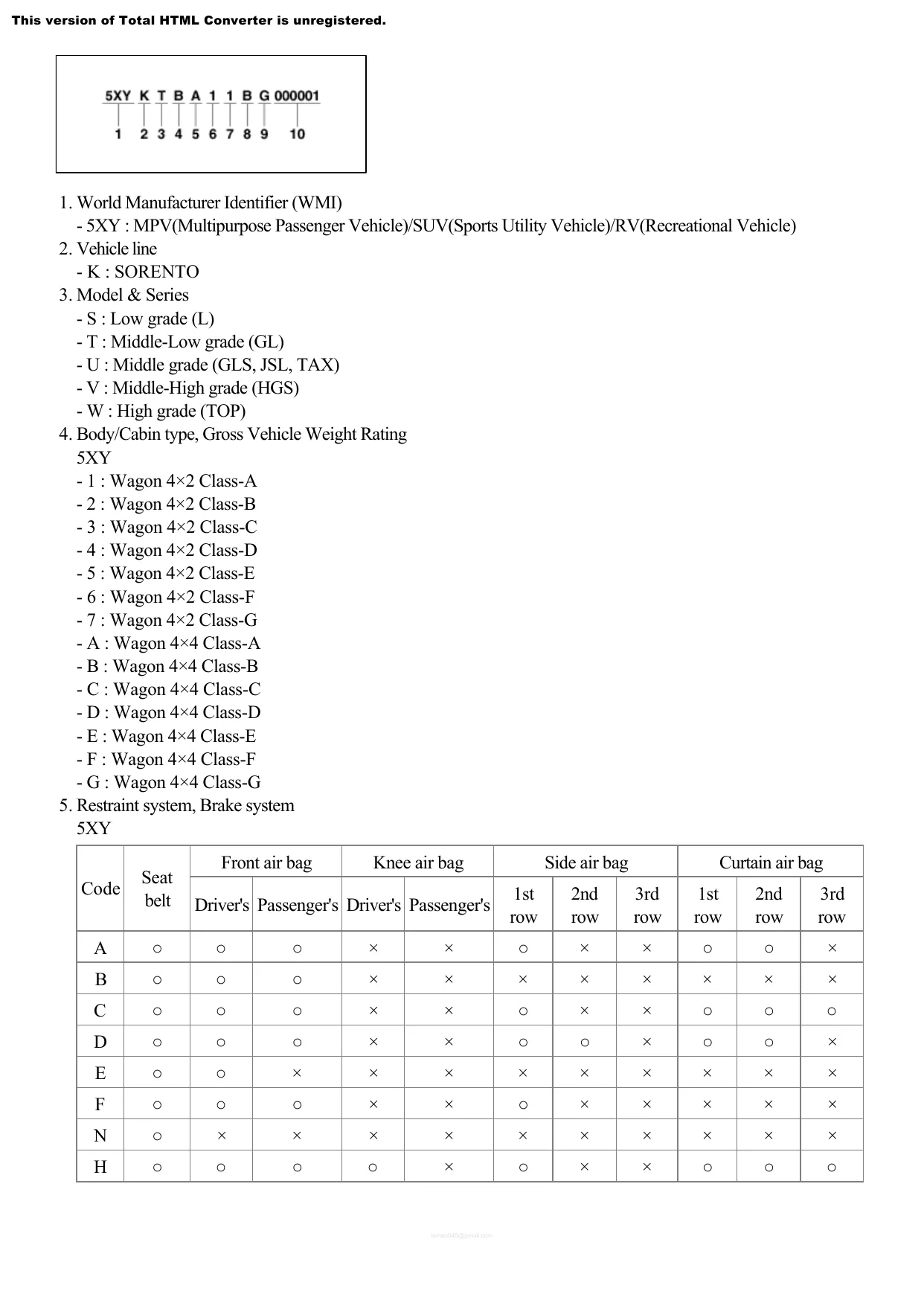

The ZIP download contains three printable, English-language PDFs totaling 4,002 pages. A short readme and a PDF-reader installer are also included as separate files.

Engine Repair, Drivetrain Service, and Vehicle Electronics

These selected coverage highlights outline major workshop tasks rather than the complete contents; additional topics include rear-seat entertainment troubleshooting and rear parking-assist testing.

• Engine mechanical repair: Step-by-step procedures for engine removal, timing-chain installation, cylinder-head disassembly, and cylinder-block inspection and reassembly.

• Fuel and emissions: MPI and GDI fuel-pressure testing, injector replacement, high-pressure fuel-pump service, and evaporative-emission system checks.

• Transmission and four-wheel drive: Automatic-transaxle replacement, valve-body and solenoid service, manual-transaxle and clutch procedures, and transfer and coupling replacement.

• Brakes and chassis: Disc-brake service, ESC diagnosis, steering-angle calibration, hydraulic power-steering testing, suspension replacement, and wheel alignment.

• Electrical diagnosis: Starter and alternator tests, ECM terminal specifications, TCM connector information, and system-specific circuit diagrams.

• Body and interior: Door, glass, trim, seat, and panorama-roof removal and installation, with component illustrations and adjustment information.

• Heating and air conditioning: Refrigerant recovery, evacuation and charging, leak testing, compressor replacement, and heater and blower diagnosis.

The material is suited to technicians and experienced repairers familiar with electrical testing, precision measurement, and procedures requiring GDS diagnostic equipment or special service tools.

Engine Inspection and Parts Identification

The mechanical sections document valve timing, piston and ring specifications, bearing clearances, and cylinder-head flatness tolerances. These measurements support decisions about component condition during internal engine repair.

Technicians will find detailed exploded-view illustrations for engine mounts, cooling system components, and timing chain layouts to streamline parts identification. Radiator, thermostat, water-pump, and lubrication-system procedures extend the coverage beyond internal engine work.

GDI Fuel-System Service

The GDI volume distinguishes low-pressure supply testing from high-pressure pump, pipe, rail, and injector work. Its pressure-retention checks relate different pressure-loss patterns to possible injector or pump faults, helping narrow the investigation before components are replaced.

High-pressure pump service includes a specific warning about spring loading: incorrect removal or installation can break the cylinder-head mounting surface or pump bolts.

Transaxle and Rear-Driveline Work

Automatic-transaxle coverage includes fluid-level checks, assembly removal and installation, valve-body and solenoid replacement, and GDS reset requirements. It does not provide a complete step-by-step internal automatic-transaxle overhaul.

The two four-cylinder volumes also contain manual-transaxle removal, shift-cable adjustment, and clutch service. Four-wheel-drive material addresses the transfer assembly, control unit, and Intelligent Torque Controlled Coupling; the axle sections include rear-differential disassembly and reassembly.

Circuit Diagnosis and Charging Tests

ECM circuit diagrams work alongside terminal-function and signal tables, allowing wiring connections to be checked against expected operating conditions. Separate TCM, ESC, smart-key, and audio-remote-control schematics cover different electrical systems.

Battery, alternator, and starter test sequences support routine shop or garage maintenance and electrical fault tracing. Starter service cautions also explain how solvent immersion can damage armature and yoke insulation.

Chassis Calibration and Cabin Repairs

Steering-angle zero-point calibration and TPMS replacement procedures include GDS-related operations. Brake troubleshooting, power-steering bleeding and pump-pressure testing accompany the mechanical replacement procedures.

Body-dimension drawings support structural measurement, while the climate-control sections distinguish manual and fully automatic controls and include rear-heater service.

Airbags and Service Precautions

Restraint coverage includes the SRS control module, impact sensors, occupant detection, airbags, and belt pretensioners. The procedures address component replacement and system checks, with dedicated handling precautions.

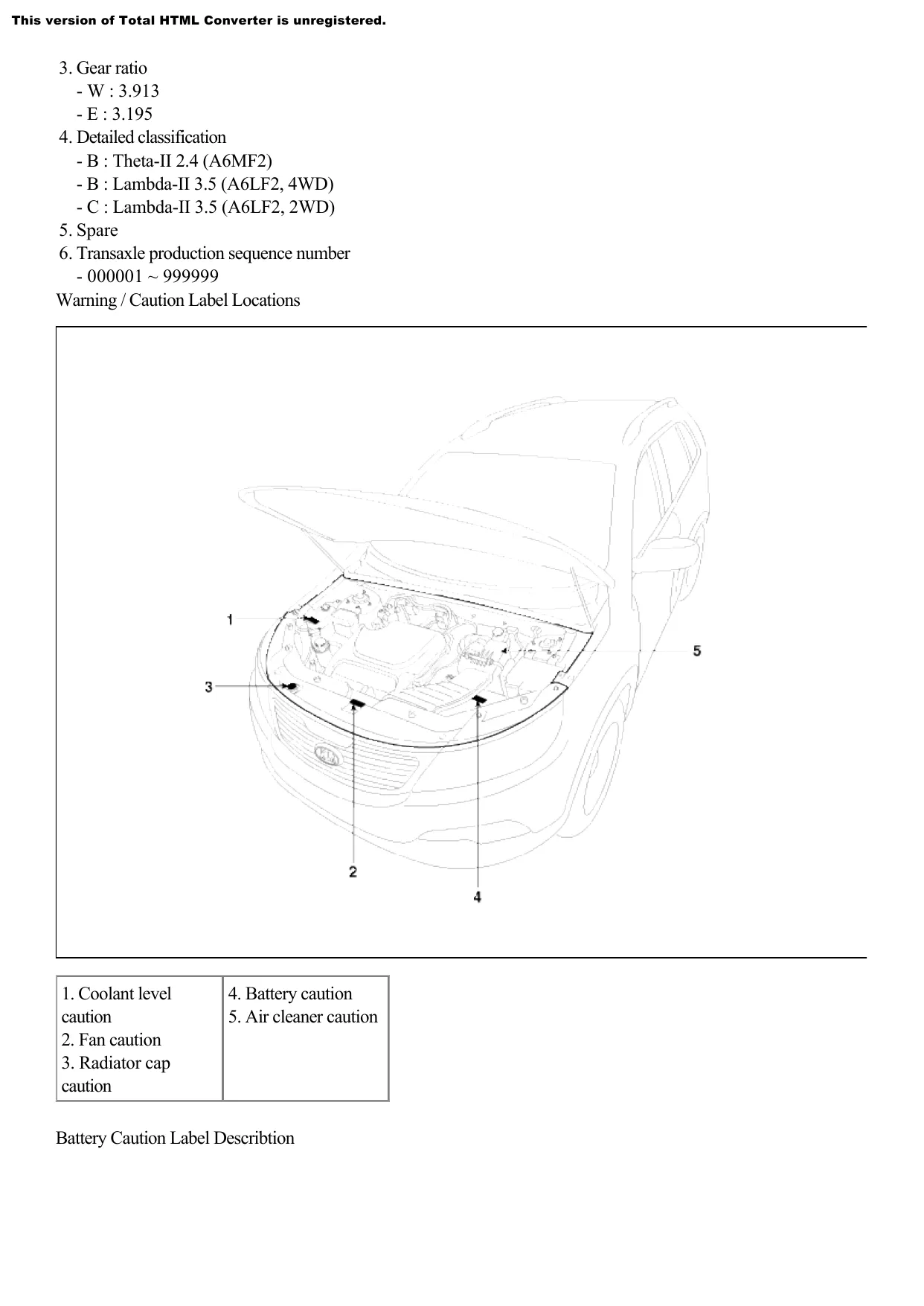

Follow the manual’s lifting, fuel-pressure, SRS, and refrigerant precautions, along with its component-specific torque specifications.

Sample Engine-Inspection and Starter-Test Data

For the Theta II MPI engine, cold valve-clearance specifications at 20°C are 0.17–0.23 mm for intake valves and 0.27–0.33 mm for exhaust valves. Its compression-test reference is 1,283 kPa with the engine warm, throttle fully open, and cranking speed of at least 200 rpm.

The same volume’s starter no-load specifications list a maximum current draw of 90 A at 11.5 V.
