Triumph 1991–2004 Service Manual — Trophy, Daytona, Trident, Sprint, Tiger, Speed Triple, Thunderbird & Adventurer

This Triumph service manual covers the carbureted Trophy, Daytona and Daytona Super 3, Trident, Sprint—including Sport and Executive—Tiger, Speed Triple, Thunderbird and Thunderbird Sport, and Adventurer models with three- and four-cylinder DOHC engines.

PDF Bookmarks, Diagram Detail and Page Count

Chapter access and wiring detail: Embedded bookmarks link to the contents and major sections. PDF text search is not available. Small wiring-color codes and connector numbers require zooming; the checked diagram details remain readable when enlarged.

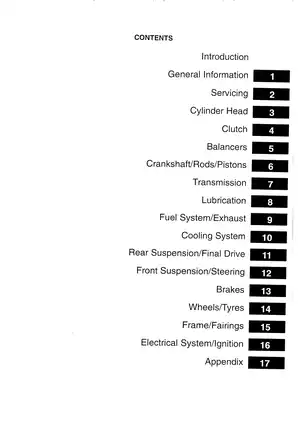

One printable, English-language PDF contains 388 pages, including seven cover, contents and introductory pages.

Engine Overhaul, Carburetor Service and Chassis Repair

The following selected service topics outline the manual’s coverage. Other examples include body-panel removal and tire tread-wear illustrations.

• Engine and valve service: Step-by-step engine removal, crankcase separation, crankshaft and piston inspection, cylinder-head repair, valve-shim adjustment, and cam-chain timing procedures.

• Clutch and transmission: Wet multi-plate clutch inspection, hydraulic master- and slave-cylinder service, bleeding, gearbox shaft disassembly, selector-drum work, and starter sprag-clutch replacement.

• Carburetor service: Separate Mikuni and Keihin overhaul procedures, float-level checks, mixture adjustment, vacuum synchronization, and California evaporative-loss system diagrams.

• Lubrication and cooling: Oil-pressure testing, oil-pump inspection, coolant replacement, radiator removal, water-pump service, and thermostat inspection.

• Suspension and steering: Fork oil replacement, Kayaba and Showa fork overhaul, steering-head bearing adjustment, swingarm service, and rear-suspension linkage inspection.

• Hydraulic brakes: Brake-type identification, pad replacement, caliper and master-cylinder overhaul, fluid replacement, bleeding, and disc inspection.

• Electrical diagnosis: Ignition-tester procedures, starter-motor inspection, alternator removal, cooling-fan tests, temperature-sensor checks, and model-specific wiring diagrams.

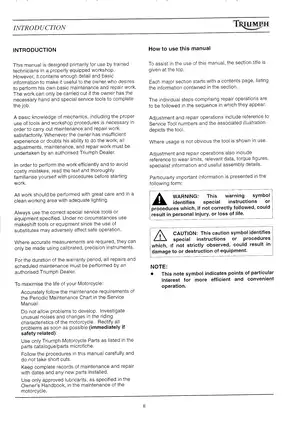

Written primarily for trained technicians in an equipped workshop, the manual also supports owners with basic mechanical knowledge and the specified tools for basic maintenance and repair.

Valve Adjustment and Internal Engine Work

You get direct access to routine maintenance schedules, cylinder-head assembly data, and balancer configurations. Valve-shim selection charts relate measured clearance to replacement-shim thickness, supporting the choice of adjustment parts during servicing.

The valve arrangement uses shims above the tappets. Camshaft-cover bolt-sequence views accompany removal and installation, while internal engine procedures extend to bearing selection and cylinder-liner resealing. Worn valve guides beyond the specified limits call for complete cylinder-head replacement.

The shim-tool section warns that camshaft contact with the installed tool can damage both components. The cam-cover section also identifies mating-surface damage and possible oil leaks caused by levering the cover off.

Clutch, Gearbox and Starter-Drive Access

The transmission chapter distinguishes engines with and without an alternator-drive access cover. On later engines without that cover, sprag-clutch access requires engine removal and crankcase separation—an important distinction when planning the extent of a starter-drive repair.

Carburetor Settings and Fluid Circuits

Synchronization instructions identify the master carburetor and vacuum-gauge connections for each engine configuration. Mixture-adjustment coverage identifies service tool 3880015, while the overhaul sections show the different Mikuni and Keihin component arrangements.

Separate three- and four-cylinder oil-circuit diagrams explain their different pump layouts. Cooling-system coverage distinguishes the Thunderbird-family plumbing and thermostat arrangement from the other models.

Fork, Rear-Suspension and Brake Variants

Separate procedures cover nonadjustable Kayaba and Showa forks and adjustable Kayaba forks. The fork oil-level and fork-installation charts distinguish settings by model and VIN, helping match the service data to the installed suspension.

Rear suspension coverage concerns a linkage-operated spring-and-damper unit, with remote reservoirs on Tiger and Thunderbird Sport models. Brake identification charts distinguish front and rear systems independently; matching letter designations must not be assumed.

Ignition Testing and Wiring Diagrams

The ignition diagnosis section uses Triumph’s dedicated tester and recommends dealer diagnosis with the appropriate training. It distinguishes primary-circuit tests from secondary faults such as spark-plug or high-tension lead breakdown.

Illustrations include the Trophy ignition circuit, Trophy starter circuit, VIN-specific Trophy wiring, and dedicated Tiger and Thunderbird-family wiring diagrams. These accompany component-number keys and wiring-color legends.

Before beginning diagnostic work, review the general safety guidelines for high-tension ignition circuits and fuel handling.

Sample Valve-Clearance, Ignition and Sprocket Data

The valve-clearance section specifies an intake clearance of 0.10–0.15 mm with the engine cold, alongside the shim-selection charts.

Trophy 900 ignition specifications list 5° BTDC at 1,000 rpm. The transmission torque table specifies 132 Nm for the gearbox output sprocket.
