2009 Yamaha YFZ450RY Service Manual OEM (P/N LIT-11616-22-75)
386 Pages • 20.40 MB • Instant, Printable PDF
Yamaha Models Covered & Key Technical Specifications
Models: YFZ450RY
Sub-models / Variants: 18P1 (USA specification)
Model Year: 2009
-
Engine: Liquid cooled 4-stroke, DOHC, single cylinder
-
Displacement: 449.0 cm3
-
Bore x stroke: 95.0 x 63.4 mm
-
Compression ratio: 11.60:1
-
Transmission: Constant mesh 5-speed, left foot operation
-
Fuel system: Electronic fuel injection (FI)
-
Fuel tank capacity: 10.0 L (2.64 US gal)
-
Lubrication system: Dry sump
-
Engine oil capacity: 1.40 L (without filter replacement), 1.45 L (with filter replacement)
-
Battery: 12 V, 6.0 Ah
-
Ignition: TCI (digital)
-
Spark plug: NGK/CR8E, 0.7–0.8 mm gap
-
Front suspension: Double wishbone, 250 mm wheel travel
-
Rear suspension: Swingarm (link), 280 mm wheel travel
-
Drive chain: 520MXV/DAIDO, 98 links
Yamaha Manual Features & Content Preview

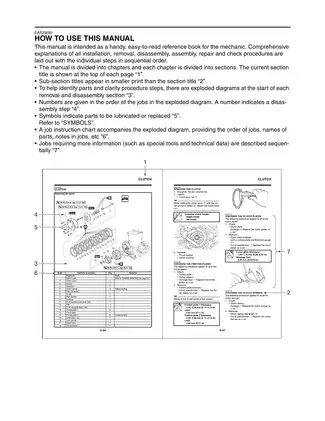

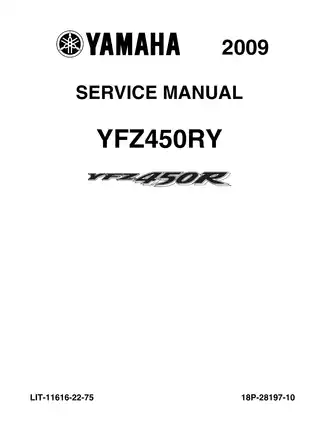

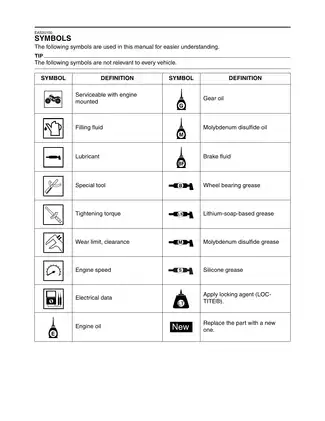

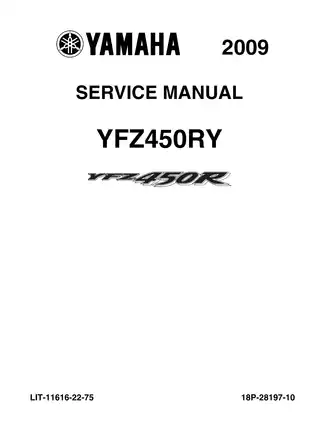

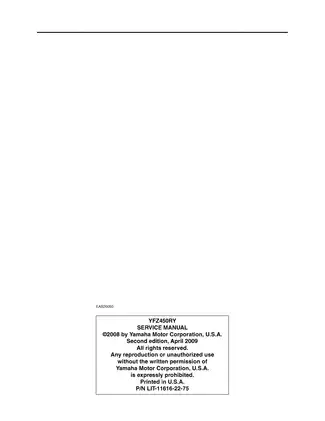

This 386-page PDF contains Yamaha’s service manual for the 2009 YFZ450RY ATV, model code 18P1 (USA). The second edition, dated April 2009, carries P/N LIT-11616-22-75 and cover identifier 18P-28197-10. Written primarily for Yamaha dealers and their qualified mechanics, it assumes an understanding of mechanical service and ATV repair techniques.
Before component teardown or diagnostic work, review the factory safety guidelines and required equipment specifications in the introductory chapters.
Technical Scope and Content
- Engine and valve train: Engine removal, cylinder-head disassembly, valve-guide replacement, valve-clearance adjustment, and camshaft installation with timing-chain alignment. Piston, cylinder, and ring inspections include the related service limits.
- Clutch and transmission: Wet multi-disc clutch disassembly and inspection, shift-shaft and shift-drum checks, and gear assembly procedures for the constant-mesh five-speed transmission.
- Electronic fuel injection (EFI): Fuel-tank and pump removal, injector inspection, fuel-pressure testing, and throttle position sensor adjustment, supported by dedicated electrical fault-finding procedures.
- Brake-system repair: Front and rear caliper and master-cylinder disassembly, inspection, and reassembly, plus hydraulic bleeding, brake-disc checks, and parking-brake adjustment.
- Steering and chassis: Rear axle and hub service, front-arm ball-joint replacement, steering-stem inspection, toe-in adjustment, and swingarm and suspension-linkage bearing installation.
- Cooling and lubrication: Radiator and cap pressure checks, water-pump seal replacement, and inspection of the oil-feed and scavenging pump components.
Internal Engine Repair
The liquid-cooled, four-stroke DOHC engine uses dry-sump lubrication. Beyond top-end work, the engine chapter covers crankcase separation, crankshaft and connecting-rod inspection, balancer gear alignment, and checks of the starter clutch and torque limiter. Electric starter coverage extends to armature, brush, and commutator inspection.
The Disassembling the drive axle exploded view identifies the transmission gears, washers, and retaining parts. The Engine Oil Lubrication Chart traces the feed and scavenging circuits through the engine. Removal and disassembly illustrations are paired with job tables identifying parts, quantities, and service notes.
Camshaft service instructions address uneven cap tightening, which can damage the cylinder head, camshaft caps, and camshafts.
EFI and Electrical Diagnostics
The ECU self-diagnostic section explains fault codes, diagnostic monitoring codes, and fail-safe operation. Procedures for the FI diagnostic tool YU-03182 / 90890-03182 cover sensor-data monitoring, actuator testing, fault-history retrieval, and history erasure. Individual fault-code tables connect symptoms with probable causes, component checks, and reinstatement methods after repair.
Actuator tests include the ignition coil, injector, main relay, radiator fan relay, and ISC (idle speed control) valve. The throttle-body section also identifies restrictions on ISC valve removal and throttle-stop adjustment.
For starting problems, the Electric Starting System circuit diagram and starting circuit cut-off explanation show how the clutch and neutral switches affect starter operation. Separate troubleshooting charts address charging, lighting, warning indicators, cooling-fan operation, and fuel-pump operation. The full 2009 YFZ450RY Wiring Diagram provides wire-color identification and connector views for electrical repair.
Suspension Service and Scope
Front and rear suspension procedures cover spring preload, rebound damping, and separate slow- and fast-compression damping adjustments. Shock absorber coverage includes removal, inspection, installation, and replacement; internal damper rebuilding is outside this manual’s scope.
The rear-axle removal section also identifies the risk of damaging axle threads and splines through direct hammer blows.
Specification Highlights
Factory reference data includes engine and chassis tightening torques, lubrication points, fluid capacities, valve clearances, bearing fits, and wear limits. Electrical specifications include stator-coil resistance and battery capacity. The torque charts distinguish rear wheel-hub nuts from the rear axle ring nut.
Periodic maintenance charts cover emission-control service and general maintenance and lubrication. Symptom-based troubleshooting addresses starting failures, clutch slip or drag, jumping out of gear, overheating, poor braking, and unstable handling.
The special-tool section supplies regional tool numbers and references to the procedures that use them. Examples include crankcase separator YU-A9642 and water-pump seal installer YM-33221-A, allowing technicians to identify the equipment required for those jobs.
