Arctic Cat T660, Bearcat, Panther, Z1 Series Four Stroke Snowmobiles 2007 Service and Repair Manual

533 Pages • Printable PDF • 121.55 MB • Download

4.5starstarstarstarstar_half(2)
$17.59 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Arctic Cat Models Covered & Key Technical Specifications

Models: T660, Bearcat, Panther, Z1 Series Four Stroke Snowmobiles

Sub-models / Variants: 660 cc Non-Turbo (engine K6A-B; STD chain case), 660 cc Turbo (engine K6A-B; STD chain case), 1100 cc Z1 (engine AA11L1; ACT Drive), Bearcat Wide Track (engine K6A-B), AC 120 (engine AA12A2; chain drive)

Model Year: 2007


  • Engine displacement: 660 cc, 1100 cc, 120 cc

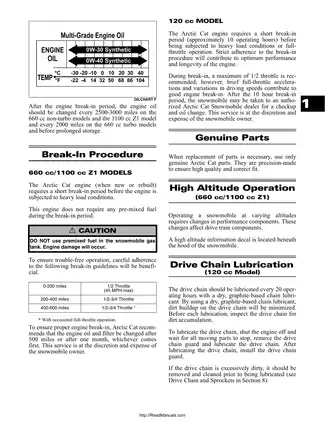

  • Drive chain lubrication interval: Every 20 operating hours (120 cc model; more frequently with the optional wheel kit in summer)

  • Crankshaft bearing clearance: 0.020-0.040 mm (660 cc non-turbo/turbo)

  • Valve lash clearance (cold): At 59°-77°F: 0.18-0.23 mm intake and exhaust (660 cc non-turbo); 0.18-0.23 mm intake and 0.30-0.35 mm exhaust (660 cc turbo); 0.100-0.200 mm intake and 0.200-0.300 mm exhaust (1100 cc Z1)

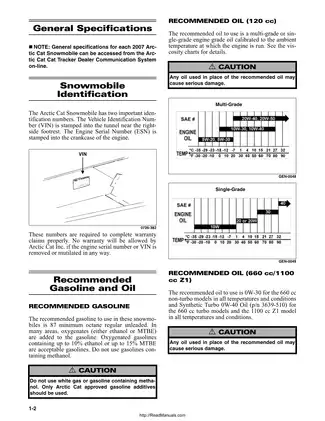

  • Engine oil refill (with filter change): 2.9 liters (3 U.S. qt), 660 cc models

Arctic Cat Manual Features & Selected Content Preview

Factory service and repair documentation for the 2007 Arctic Cat AC 120, Bearcat Wide Track non-turbo and turbo, Panther 660 Touring and Trail, T660 Touring, T660 Turbo Touring and Turbo Trail, and Jaguar Z1.

Searchable Text, Section Bookmarks and Diagram Detail

Search and diagram labels: Body text is searchable, and embedded bookmarks open the nine main sections. Some labels within diagrams are not searchable. Small ignition-circuit and connector labels are readable with zoom; the electrical component-location views also benefit from enlargement.

One printable, English-language 533-page PDF, including the contents pages within each numbered section.


Four-Stroke Engine, Drive and Suspension Service

The following selected service topics show the main repair areas. Further material includes recoil-starter service and preparation for storage and return to use.

  • Engine repair: Step-by-step removal, teardown, component inspection, reassembly and installation for the AC 120, non-turbo and turbo engines, and Jaguar Z1.

  • Cooling and lubrication: Liquid-cooling service, compression and oil-pressure testing, water-pump repair, oil-flow charts, and oil-pump/pressure-relief-valve service.

  • Fuel systems: AC 120 carburetor overhaul and adjustment; throttle-body, TPS, fuel-pump and filter service; turbocharger/intercooler removal and installation.

  • Drivetrain and brakes: Chain-drive, chain-case and ACT gear-case repair, drive-clutch and driven-pulley service, reverse adjustment, driveshaft work and model-specific brake procedures.

  • Electrical diagnosis: Check-engine and chassis-control codes, ignition and charging tests, starter repair, warmer circuits, reverse alarms and Z1 shift-actuator testing.

  • Track and suspension: Four model-routed repair procedures, skid-frame schematics, track adjustment, idler-wheel service, shock/spring data and T660 Turbo Trail rebuildable-shock service.

This manual is suited to professional technicians and experienced owners equipped for precision measurement, electrical testing, press work, clutch service, and nitrogen-charged shock repair.

Engine Inspection and Variant-Specific Assembly

Cylinder-head, valve, piston, ring and cylinder service includes inspection and measurement procedures. The 660 cc and Z1 material adds crankshaft and connecting-rod checks, cam timing, engine-specific torque patterns and final leak checks.

Bearing selection: The 660 cc section covers main bearings. Z1 charts extend to connecting-rod, balancer-shaft and thrust bearings.

The 660 cc non-turbo and turbo engines receive separate specification tables. The AC 120 has dedicated engine, carburetor, steering, chain-drive, brake and rear-suspension coverage; the Jaguar Z1 uses its own ACT drive, chassis-control diagnostics and suspension procedure. These distinctions help match inspection data and repair procedures to the machine being serviced.

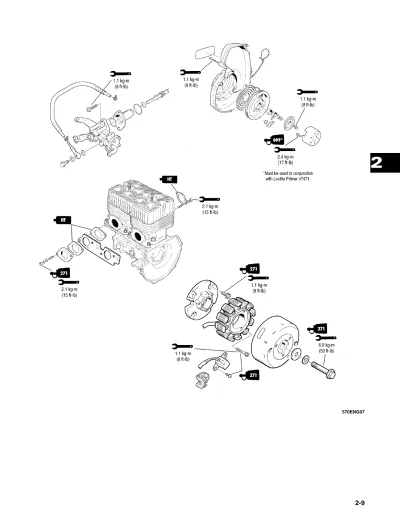

Seven engine assembly-schematic pages support the internal work. Cooling-system flow/component schematics, oil-flow charts and the AC 120 carburetor schematic show the related system layouts. Valve-adjustment and air-silencer procedures are also included.

Clutch Alignment, ACT Drive and Brake Repair

Standard and ACT Roller driven pulleys have separate service procedures. Offset, parallelism and belt-deflection checks address drive-belt wear and shifting problems; chain-case reverse-linkage adjustment, Z1 gear-case teardown/reassembly and drive-sprocket timing drawings extend coverage beyond clutch maintenance.

Early-build and regular-build Jaguar Z1 gear cases use different ACT Drive fluid-capacity specifications. The Z1 installation notes also flag the input-shaft washer stack and warn that allowing the driven pulley to float on the output shaft can damage it.

Brake coverage includes calipers, pads, fluid changing and bleeding. Hydraulic master-cylinder procedures cover inspection and replacement: the master cylinder is a non-serviceable component.

Steering, Body and Rear-Suspension Configurations

Steering and body procedures address steering posts, skis and wear bars, tie rods, spindles, ski alignment and suspension arms. Fuel-tank/seat assemblies, tunnels, body panels, bumpers and lighting have their own service material.

The suspension servicing chart matches each model to slide-rail, front-arm, rear-arm, idler-wheel and skid-frame views. Some Bearcat Wide Track Turbo machines have an articulating skid frame. Setup information and shock/spring selection charts accompany the repair procedures.

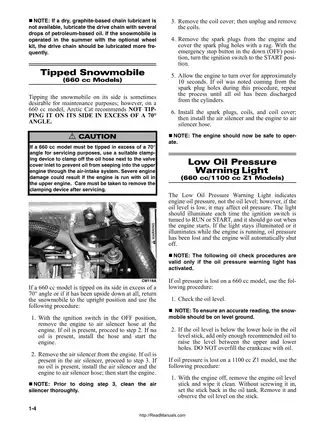

On 660 cc machines, excessive tipping can move oil into the intake and upper engine, risking engine damage at restart; the manual explains the servicing precaution and recovery procedure.

Electrical Tests and Separate Diagnostic References

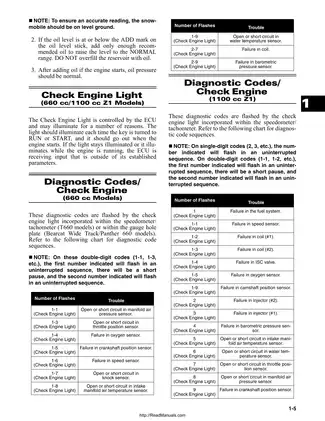

Flash-code charts cover the engine ECUs and Z1 Chassis Control Unit. Electrical component locations occupy two pages: one 660 cc layout and three Z1 views. An AC 120 ignition-circuit schematic and switch-connector views support component testing; a full vehicle wiring-diagram set is not included.

For certain EFI tests, the manual refers to the separate Arctic Cat Diagnostic System Manual P/N 2256-974 or Laptop Diagnostic Tool P/N 0744-048; Z1 references specify the laptop tool. These diagnostic resources are separate from this service-manual PDF.

Factory Tools and Service Precautions

Named equipment includes TPS Adjustment Tool Kit P/N 3639-891, clutch pullers P/N 0644-207 for the 660 cc engines and 0644-446 for the Z1, Rear Suspension Spring Tool P/N 0144-311, and Floating Piston Installation/Location Tool Kit P/N 0644-402.

Fuel-system work, hydraulic-brake repair, running-track checks, and nitrogen-charged shock service carry specific factory warnings. Review those precautions and use suitable lifting, holding, pressure-release, and protective equipment before beginning repair work.

Examples from the Cylinder-Head and Valve Specifications

Maximum cylinder-head distortion is 0.030 mm for both non-turbo and turbo 660 cc engines, compared with 0.050 mm for the Z1 engine. These limits accompany the cylinder-head inspection material.

The 660 cc turbo specification table lists intake valve stem diameter at 5.465-5.480 mm, alongside valve-guide, seat-width and stem-to-guide clearance data for assessing valve-train wear.
