2000–2003 Suzuki DF25/30 Four-Stroke Outboard Motor Service Manual (P/N 99500-89J02-01E)

Suzuki factory service manual for the 2000–2003 DF25 and DF30 four-stroke outboards, P/N 99500-89J02-01E, third edition, October 2002. The main sections cover Q, QE, QR, and T variants. An integrated K3 chapter provides updated specifications, ignition-component information, and wire routing for the Q, QE, and T models.

Searchable PDF with Chapter Bookmarks

Text search and diagram detail: Searchable text and embedded bookmarks provide access to the main chapters and K3 update. Small wire-color codes and connector labels in the wiring diagrams require zooming for comfortable reading.

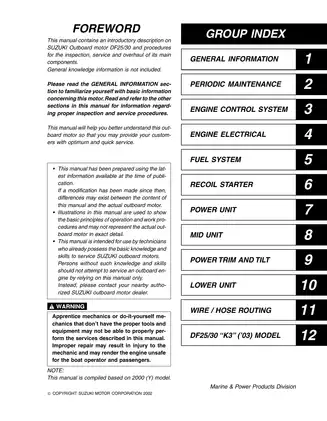

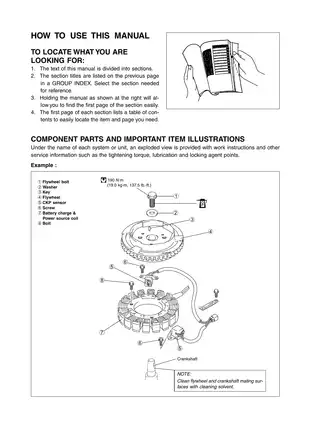

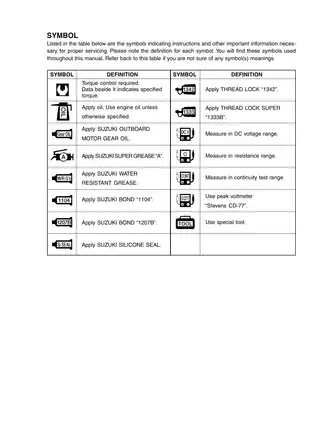

One printable, 285-page PDF, including 264 pages of main technical sections, the 15-page K3 chapter, four opening pages, a publication page, and the back cover. The text is primarily English, with some Spanish notes and table headings in the power-unit section.

Powerhead, Fuel-System and Lower-Unit Service

These selected highlights outline the repair coverage. Other topics include anodes and bonding wires, plus propeller selection charts.

• Power unit: Powerhead removal and installation, cylinder-head overhaul, timing-chain and tensioner service, and cylinder, crankshaft, piston, and bearing inspection.

• Maintenance and fuel system: Step-by-step procedures for valve-clearance adjustment, carburetor synchronization, dashpot adjustment, Mikuni carburetor overhaul, and fuel-pump service.

• Engine control and electrical: Ignition troubleshooting, peak-voltage testing, charging-system checks, starter-motor repair, and oil-pressure and overheat caution-system diagnosis.

• Recoil starter: Disassembly, spring and rope inspection, reassembly, and neutral start interlock installation and adjustment.

• Mid-unit and tilt systems: Driveshaft housing, oil pan, swivel and steering brackets, gas-assisted tilt cylinder replacement, PTT motor overhaul, and air bleeding.

• Lower unit: Gearcase disassembly, water-pump impeller replacement, seal inspection, gear shimming, tooth-contact checks, shaft thrust-play measurement, and clutch adjustment.

Written for technicians who already have the basic knowledge and skills to service Suzuki outboards; the procedures assume suitable tools and workshop equipment.

Powerhead Overhaul and Cooling

Component wear limits and assembly details support maintenance and overhaul decisions at the workbench. The internal engine sections cover valve-seat servicing, valve-guide replacement, piston and ring inspection, and crankshaft main-bearing selection using identification codes and bearing color marks.

Cylinder-head installation includes a staged tightening procedure for different bolt sizes. Timing-chain service carries a specific warning about valve damage if valve-adjuster tension is not released.

Power-unit installation also includes an oil-pump shaft engagement check. The water-cooling schematic and engine oil lubrication chart show the associated passages, thermostat, water-pressure valve, oil strainer, and pressure regulator.

Carburetors and Throttle Controls

Carburetor construction diagrams accompany cleaning, inspection, float-height adjustment, and accelerator-pump checks. The manual distinguishes covered, factory-preset pilot screws from uncovered, adjustable versions.

Throttle-valve synchronization is followed by dashpot adjustment and a controlled return-to-idle check. Separate illustrations identify throttle-link and cable arrangements for tiller-handle and remote-control models.

Electrical Fault Tracing and K3 Changes

For a hard-start or no-spark complaint, the ignition troubleshooting chart links symptoms to checks of the stop switch, ignition coils, plug caps, power-source coil, and CKP sensors. Separate starter circuit check schematics address tiller-handle and remote-control no-crank faults.

Variant-specific wiring diagrams and connector views identify the circuits and test points. Peak-voltage procedures specify the Stevens CD-77 meter and connector test cords, including 09930-89251 and 09930-89240.

The K3 chapter documents revised ignition coils with an S12 identification mark, changes to the CDI buzzer circuit, and revised stop-switch and starter-switch wire routing.

Tilt Assemblies and Gearcase Repair

The gas-assisted tilt cylinder section covers removal, inspection, and complete assembly replacement; the pressurized cylinder must not be disassembled. Power trim and tilt coverage includes motor brush and commutator inspection, relay and switch testing, and hydraulic operating diagrams.

Lower-unit procedures relate shim selection to backlash, tooth contact, and shaft thrust play. Illustrated examples show incorrect contact patterns that can chip the forward or pinion gears.

Because marine maintenance involves heavy lifting and pressurized fuel systems, observe the manual’s workshop safety precautions when applying its service procedures.

Examples of Valve, Compression and Ignition Specifications

Cold-engine intake and exhaust valve clearance is 0.13–0.17 mm. Warm-engine cylinder compression guidance is 1,000–1,400 kPa with the throttle fully open during cranking; these compression figures are guidelines, not absolute service limits.

CKP-sensor resistance is specified at 148–222 ohms at 20°C. Ignition-coil secondary resistance is 3.3–5.0 kilohms in the main specifications and 4.8–7.2 kilohms in the K3 specifications, both at 20°C.
