2006–2012 Suzuki DF25, DF25E, DF25R V-Twin Outboard Motor Service Manual (P/N 99500-95J00-01E)
248 Pages • 30.02 MB • Instant, Printable PDF
Suzuki Models Covered & Key Technical Specifications
Model: DF 25
Sub-models / Variants: DF25, DF25E, DF25R, Manual start model, Electric start model
Production Years: 2006–2012 (2006, 2007, 2008, 2009, 2010, 2011, 2012)
Serial Number Prefix: 02502F
-
Engine type: 4-stroke, OHV, V-2
-
Total displacement: 538 cm³
-
Maximum output: 18.4 kW (25 PS)
-
Cooling system: Water cooled
-
Fuel system: Carburetor (1)
-
Idle speed (in neutral): 950–1050 r/min
-
Flywheel bolt torque: 196 N·m (142 lb-ft)
Suzuki Manual Features & Content Preview
Suzuki factory service manual 99500-95J00-01E covers the 2006–2012 DF25 V-Twin outboard series, including DF25, DF25E, and DF25R with manual or electric starting. This is Suzuki Motor Corporation's 2006 K6 edition.
Supplied as one 248-page PDF in English.
-
Power unit repair: Powerhead removal, cylinder-head and valve service, internal engine inspection, crankshaft installation, and camshaft timing-gear assembly.
-
Fuel system: Keihin BCMII carburetor overhaul, accelerator-pump inspection, manual and automatic enrichener coverage, fuel-pump checks, and throttle-cable adjustment.
-
Electrical diagnosis: CDI ignition tests, charging-system checks, electric starter overhaul, and low-oil-pressure, overheat, and over-revolution caution-system coverage.
-
Lower unit: Gearcase teardown, gear shimming, shaft thrust-play checks, seal replacement, leakage testing, and water-pump impeller replacement.
-
Mid unit and recoil starter: Tiller-handle and bracket service, driveshaft-housing removal, recoil-starter rebuilding, and neutral start interlock adjustment.
-
Diagrams and references: Separate model wiring diagrams, ignition and starter troubleshooting charts, wire-routing views, and fuel-hose routing drawings.
Written for technicians who already have the basic knowledge and skills to service Suzuki outboards, with the proper tools and equipment; general mechanical instruction is not included.
Powerhead Repair and Maintenance
The engine sections cover the 538 cm³ OHV V-2 powerhead. Periodic maintenance charts, identification-number locations, and propeller selection charts accompany valve-clearance checks, NGK BKR6E spark-plug inspection, oil-pressure testing, and cylinder-compression checks.
Internal engine repair: Procedures extend to valve-seat servicing, valve-guide replacement, piston and connecting-rod inspection, and crankshaft bearing and seal replacement. Timing-gear assembly specifies scissors gear alignment pin set 09917-29510.
Compression-test reference values distinguish manual-start and electric-start models. The valve-clearance section also warns that turning the crankshaft in the wrong direction can damage the water-pump impeller.
Thermostat testing, oil-pump inspection, and water-pressure-valve service are supported by a water-cooling schematic and the Engine Oil Lubrication Chart.
Carburetor and Fuel-System Service
Keihin BCMII specifications distinguish U.S. and non-U.S. carburetor calibrations. The DF25 uses manual enrichment; DF25E and DF25R use a PTC-heated automatic enrichener. Separate throttle-cable adjustment procedures cover tiller-handle and remote-control configurations.
Float-height checks, needle-valve and jet inspection, fuel-tank service, and hose-connection details are included. The fuel pump is covered for inspection and replacement as a complete assembly, not internal rebuilding.
The manual's safety precautions address gasoline handling and electrical isolation during service.
Ignition, Charging and Starting Diagnosis
Factory electrical values and multimeter checks accompany the ignition troubleshooting chart. These help technicians distinguish stop-switch, ignition-coil, power-source-coil, and CKP-sensor faults before considering CDI replacement.
CDI peak-voltage testing specifies the Stevens CD-77 and six-pin test cord 09930-89920. Charging checks distinguish manual-start and electric-start coils; starter procedures cover the magnetic switch, brushes, armature, and no-load performance testing.
Separate DF25, DF25E, and DF25R wiring diagrams show their start/stop and control circuits. Caution-system coverage includes oil-pressure-switch checks, cylinder-temperature-sensor testing, and the remote-control model's warning buzzer.
Gearcase, Mounting and Steering Repair
Gearcase exploded views identify the forward, reverse, and pinion gears, clutch dog, and propeller-shaft components. Tooth-contact illustrations accompany shim adjustment procedures and show incorrect patterns that can cause gear chipping.
Gear adjusting gauge 09951-09511 is specified for driveshaft and propeller-shaft thrust-play checks. The lower-unit section also covers trim-tab adjustment and gearcase pressure testing.
Mid-unit service extends to the oil pan, upper and lower mounts, swivel bracket, steering bracket, and clamp bracket. Recoil-starter instructions cover the rope and spring mechanism, with checks of the neutral start interlock after assembly.
Specification and Reference Data

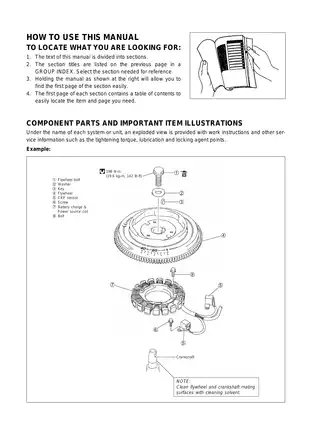

Tables provide torque specifications, fluid capacities, wear limits, valve clearances, carburetor settings, and electrical test values. Exploded views locate fasteners, gaskets, and seals, with tightening data for the flywheel, cylinder head, and crankcase.

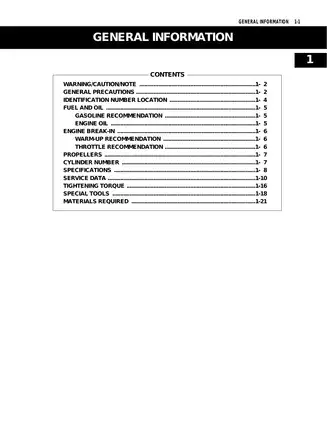

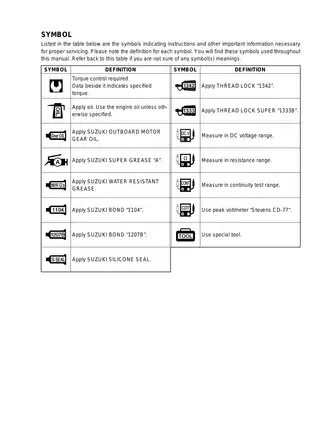

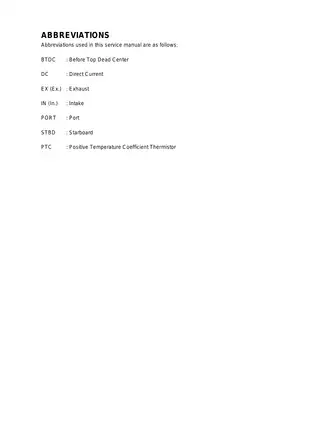

PDF Contents and Navigation
The total includes four introductory pages and 244 pages across ten service sections; no separate cover or supplementary manual is included. Searchable text and embedded bookmarks cover the introductory material and all ten sections. Small wiring-diagram labels are readable when enlarged.
