Suzuki VL125 Service Manual, 1999–2000 (P/N 99500-31150-01E)

Suzuki’s VL125 Service Manual (P/N 99500-31150-01E), published by the Motorcycle Service Department with a 1999 copyright, identifies the VL125Y as the 2000 model. It covers the UK, France, Nordic countries, Germany, Italy, Belgium, Spain, Switzerland, and Austria. Model coverage is limited to the VL125Y.

PDF Search, Bookmarks, and Included Pages

Text search and diagram detail. Searchable text and bookmarks for page ranges help locate procedures. Labels in the VL125 charging, starter interlock, and ignition schematics are readable at normal page view. The small wire codes and switch labels in the appended VL800K1 wiring diagrams are readable when enlarged.

The English download is one printable PDF with 242 pages, including 207 pages of VL125 material and 35 appended pages from the VL800K1 Servicing Information chapter. The VL125 material ends at the close of Chapter 6, before the Servicing Information chapter listed in its index.

V-Twin Overhaul, Carburetor Service, and Circuit Diagnosis

These selected workshop topics cover major jobs in the manual. Other examples include gearshift lever height adjustment and speedometer removal and disassembly.

• Scheduled maintenance. Includes the maintenance chart, lubrication points, valve-clearance checks, cable adjustments, oil and filter changes, drive-chain care, and steering and suspension inspections.

• Engine and transmission overhaul. Covers engine removal and installation, crankcase separation, cylinder-head and valve-seat work, cam timing, and inspection of the clutch, oil pump, and transmission.

• Fuel delivery and carburetor service. Covers the vacuum-operated fuel pump, fuel cock, and Mikuni BDS26 carburetor, including cleaning, fuel-level and float-height adjustment, and throttle-position sensor setup.

• Chassis repairs. Includes front caliper and master-cylinder overhaul, brake-fluid replacement and bleeding, fork rebuilding, steering and wheel bearing service, rear drum brake, shocks, and swingarm.

• Electrical fault finding. Includes charging and starter-interlock fault trees, starter-motor service, ignition and signal-generator tests, speed-sensor checks, switch continuity tables, lighting service, and maintenance-free battery procedures.

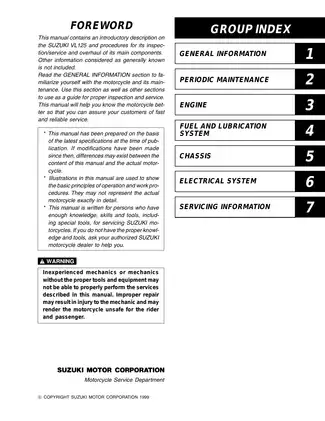

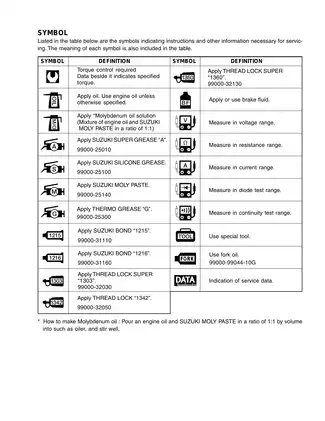

Suzuki wrote the manual for people who already have motorcycle service knowledge, practical skills, and the required tools. It suits trained technicians and experienced owners with an equipped workshop. Major work calls for tools such as the crankcase separator (09920-13120), crankshaft installer (09910-32812), rotor remover (09930-32610), and fork oil seal installer set (09940-52861). Electrical checks call for the Suzuki multi-circuit tester (09900-25008).

Engine Inspection and Reassembly

An in-frame service chart identifies which assemblies can be reached with the engine installed. For a rebuild, the engine chapter provides inspection criteria for rocker arms, cam journals and chain components, valve guides and seats, cylinders, pistons and rings, connecting rods, crankshaft runout, clutch plates, shift forks, gears, and crankcase bearings. The lubrication diagram traces oil flow to the front and rear cylinders.

Reassembly illustrations distinguish the front and rear camshafts and their timing positions. Suzuki flags a specific risk during this work. The cam chain can become trapped between the crankcase and drive sprocket when the crankshaft is turned.

Carburetor Differences by Market

The carburetor chapter pairs fuel-pump flow and carburetor circuit diagrams with inspection procedures. The slow-system and accelerator-pump illustrations show which passages serve idle and throttle opening. E-02 has dedicated carburetor heater and thermo-switch checks. E-18 has a separate pilot-screw removal procedure and different pilot jet and throttle valve specifications. The specification table also lists E-22 (U-type) separately.

Chassis Service and Electrical References

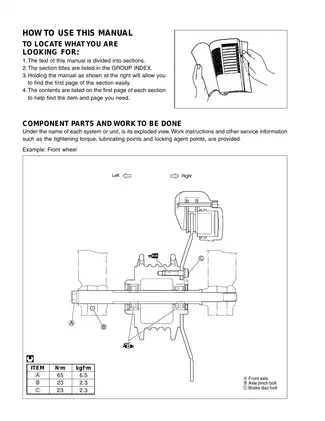

Exploded views show bearing, seal, and spacer orientation. The chassis procedures give component wear limits, fluid specifications, and torque values at the relevant operations. The front brake uses glycol-based DOT 4 fluid. Mixing it with silicone- or petroleum-based fluid can damage the system. Fuel and brake work calls for proper workshop equipment, fire precautions when handling gasoline, and final leak and function checks before road use.

The VL125 charging flowchart helps distinguish a current leak from a charging-output fault before testing the generator or regulator/rectifier. The starter and side-stand interlock schematics support checks of the relay and its switch inputs. The full-vehicle wiring diagrams and service tables at the end of the PDF apply exclusively to the VL800K1.

Compression and Oil Pressure Test Examples

For the VL125Y cylinder compression test, Suzuki specifies 1,100–1,500 kPa at about 600 rpm with the engine warm and the throttle fully open. The manual links low readings to possible cylinder, piston ring, valve seating, or head gasket faults to help assess whether an overhaul is warranted.

For the main oil gallery pressure check, Suzuki specifies 35–60 kPa at 3,000 rpm with the oil at 60°C (140°F). The test section lists possible causes of low and high readings, including a restricted filter or oil passage.
