Subaru Impreza WRX & WRX STI 2011 Service Manual Set (P/N G1130BE2)

The service-manual sections are combined in one PDF. The separate New Car Information supplement explains changes to emissions controls, VDC, navigation, and instrument circuits; it is a model-change reference rather than a second repair volume.

Structural reference points and body dimensions belong to the separate Impreza Body Repair Manual, rather than this set.

Searchable PDFs and Section Bookmarks

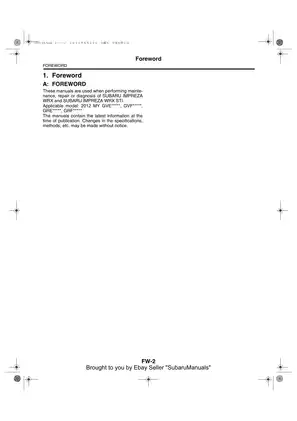

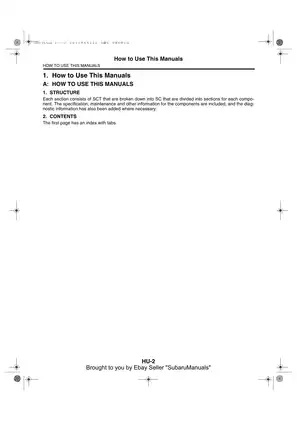

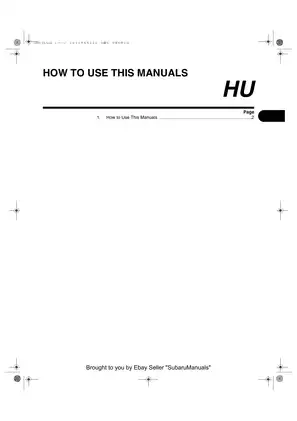

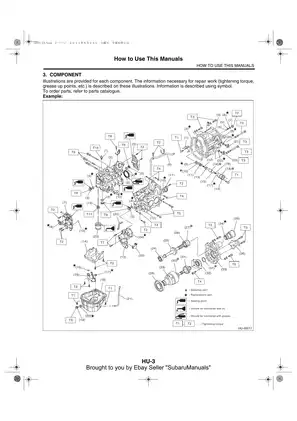

Text search and diagram detail: Both PDFs contain searchable text and embedded bookmarks. The service manual has section and system bookmarks; the supplement has four main-section bookmarks. Small connector numbers and wiring labels on the checked pages are readable when enlarged.

The RAR download contains two printable PDFs totaling 3,378 pages. This total includes eight service-section cover/index pages and 38 section-ending pages containing only headings or page furniture: 35 in the service manual and three in the supplement.

Engine, AWD Driveline, and Control-System Service

These selected coverage highlights summarize the repair material. Additional topics include wiper/washer service and cruise-control diagnosis.

• Engine mechanical repair: Engine removal, cylinder-head and cylinder-block disassembly, piston and crankshaft inspection, valve-clearance adjustment, and step-by-step timing-belt installation procedures.

• Turbo, fuel, and emissions: Turbocharger and intercooler removal, fuel-pressure testing, injector and fuel-pump service, wastegate-control inspection, and intake/exhaust repairs.

• Manual transmission and clutch: Separate 5MT and 6MT disassembly and reassembly procedures, front-differential service, flywheel inspection, clutch-release repair, and hydraulic bleeding.

• Chassis and brakes: Suspension service, wheel alignment, steering-gear overhaul, disc-brake repair, parking-brake adjustment, and ABS/VDC sequence-control testing.

• Electrical diagnostics: Subaru Select Monitor procedures, current data, freeze-frame information, active checks, DTC fault isolation, and dedicated DCCD, CAN, TPMS, and immobilizer diagnostics.

• HVAC and restraints: Refrigerant pressure testing, recovery, charging, leak checks, automatic A/C self-diagnosis, airbag troubleshooting, and occupant-detection calibration.

Written for Subaru service personnel and experienced mechanics, this manual assumes workshop knowledge and the diagnostic equipment specified for the work.

STI and WRX Engine Procedures

The engine chapters distinguish EJ257 high-power turbo STI applications from EJ255 turbo WRX applications. Lubrication and cooling coverage includes oil-pump inspection, oil-cooler service, water-pump replacement, and radiator-fan diagnosis.

Tumble generator valves, SI-DRIVE, AVCS, secondary-air components, and evaporative-emissions faults receive dedicated treatment. Exhaust procedures include catalytic converters and exhaust-pipe removal.

The timing-belt chapter warns that incorrect independent camshaft rotation with the belt removed can bring intake and exhaust valves into contact and bend them.

Proper maintenance of the turbocharged powertrain and pressurized fuel system requires strict adherence to the manual’s safety precautions to prevent component damage or personal injury.

AWD Driveline Details and Repair Limits

The STI’s six-speed manual uses DCCD, while the WRX’s five-speed manual uses a viscous-coupling center differential. Internal transmission procedures address shafts, gears, bearings, and adjustment data.

STI references identify the helical front LSD and H3 Torsen rear differential; the B2 non-LSD rear differential is covered separately. Rear-differential procedures include pinion-height selection, bearing preload, backlash, and tooth-contact inspection. The H3 differential case assembly is not internally disassembled.

Propeller-shaft, axle, drive-shaft, and hub-bearing removal and inspection appear in the Drive Shaft System section.

Calibration, Wiring, and Workshop References

VDC coverage includes control-module parameter selection and registration, steering-angle centering, and yaw/G-sensor zero-point setting. Occupant-detection rezeroing is documented for passenger-seat work.

System-specific diagnostic charts and connector views let technicians compare module signals with power-supply, ground, and harness checks before selecting a replacement component. Wiring examples include the Engine Electrical System, DCCD Control System, Power Supply Circuit, Ground Circuit, Air Conditioning System, and CAN Communication System.

Tool references include Subaru Select Monitor III kit 1B022XU0 and cam sprocket wrench 499977500. Component sections provide tightening torques, approved fluids and capacities, wear limits, adjustment data, and electrical test specifications. General Information includes conversion tables and Periodic Maintenance Services.

Body and interior coverage includes lighting, the combination meter, power windows, locks, audio/navigation, seats, trim, trunk-lid service, and rear-gate service.

The supplement explains ELCM adoption, revised PCV routing, VDC changes, and SD-card navigation. Its CHECK ENGINE lamp circuit comparison distinguishes the revised CAN-controlled arrangement from the earlier hardwired circuit.

A Preview of Rear-Differential Setup Data

For the STI’s H3 rear differential, the service data specify drive-pinion bearing preload of 0.98–1.57 N·m with new bearings, measured with a torque wrench. This is distinct from the total differential preload specification.

The rear-differential tables specify hypoid driven-gear-to-drive-pinion backlash of 0.10–0.20 mm. The assembly material relates this measurement to shim selection and tooth-contact inspection.
