2008 John Deere LA100 LA110 LA120 LA130 LA140 LA150 Technical Manual (TM2371)

John Deere technical manual TM2371, May 2008 North American edition, covers LA100, LA110, LA120, LA130, LA140, and LA150 tractors with air-cooled Briggs & Stratton single-cylinder and V-Twin engines.

Supplied as one 324-page PDF in English.

• Engine repair: Engine removal and installation, carburetor rebuilding, cylinder-head service, piston and crankshaft inspection, valve-clearance adjustment, and governor setup.

• Engine testing: Cylinder leakdown and crankcase vacuum tests, plus V-Twin cylinder balance and oil-pressure testing.

• Gear and hydrostatic drives: Gear transaxle disassembly and assembly, hydrostatic troubleshooting, neutral-creep adjustment, transaxle bleeding, and traction-drive belt replacement.

• Electrical diagnosis: Main wiring and cranking circuit schematics, harness diagrams, charging tests, electric PTO clutch checks, and RIO safety-interlock diagnosis.

• Steering and brakes: Toe-in checks, steering sector and front-axle repairs, brake-linkage adjustment, external disc-brake service, and parking-brake tests.

• Mower decks: Deck leveling, belt and spindle service, blade sharpening and balancing, lift-linkage repair, and spindle-brake adjustment.

John Deere wrote this manual for experienced technicians.

Briggs & Stratton Engine and Carburetor Repair

Engine variants: Single-cylinder Intek versions are 31P677 with pressure lubrication and an oil filter, and 31P707 with oil-slinger lubrication. The V-Twin section distinguishes engine 441677 with a single-barrel carburetor from 445577/445877 with two-barrel carburetors.

Internal engine repair includes cylinder-bore honing and resizing, valve-seat work, connecting-rod checks, camshaft timing, and starter-motor overhaul. Inspection data cover cylinder-bore dimensions, ring end gaps, bearing clearances, and valve wear.

Blower-housing, cylinder air-guide, breather, and oil-pump procedures address cooling and lubrication service.

Valve-clearance instructions account for the automatic compression release. The V-Twin blower-housing instructions also flag an assembly error that can prevent the air filter from sealing and cause engine damage.

Gear Transaxle Repair and Hydrostatic Diagnosis

Hydrostatic variants: Tuff Torq T40J is specified for LA110/LA120; K46AC for LA130/LA140/LA150. The manual explains the Internal Dampening System (IDS) and provides a Low Power When Hot diagnostic chart covering pedal travel, linkage, belt drive, freewheel operation, and oil level and viscosity.

Repair limits: The LA100 five-speed gear transaxle section includes differential and axle-shaft inspection, matched gear sets, shimming, and case assembly. T40/K46 internals and hydrostatic wet-disc brakes are treated as nonserviceable; hydrostatic coverage focuses on diagnosis, external repairs, bleeding, and transaxle replacement.

Wiring Diagrams and Electrical Fault Tracing

Main wiring schematics are separated into LA100/LA110/LA120 and LA130/LA140/LA150 groups. Component-location views, connector references, and wire-color tables support the cranking, ignition/shutoff, charging, and PTO-with-RIO circuit diagrams.

Resistance and continuity tests help trace a no-crank or PTO-interlock fault through the switches, relay, and wiring before replacing components.

Steering, Brakes, and Mower Deck Service

Steering coverage follows the shaft, pedestal, sector gear, front axle, and spindles. The sector-gear removal instructions identify a handling error that can break the drag-link ball joints.

Brake procedures distinguish the LA100's external disc and friction pucks from the linkage and adjustment work on hydrostatic models.

Deck coverage includes 42-, 48-, and 54-inch mower decks, with spindle cross sections and belt-routing illustrations. The 42-inch deck has dedicated spindle-brake and belt-tension adjustments; the 54-inch deck has its own spindle disassembly section. Deck-level checks specify blade-height gauge AM130907.

Specifications and Identification References

General reference pages show machine PIN, engine serial-number, and transaxle serial-number locations. Fastener torque tables, component torque specifications, fluid capacities, wear limits, and electrical test values accompany the system procedures.

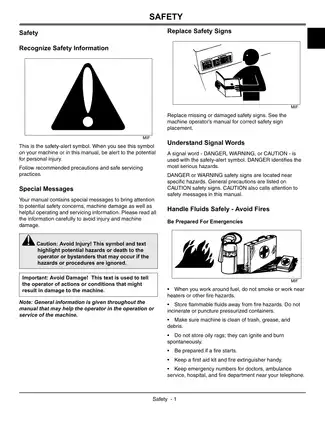

Follow the manual's precautions for raised equipment, rotating blades, and loaded springs; consult a qualified technician if the work exceeds your experience.

File Format and Readability

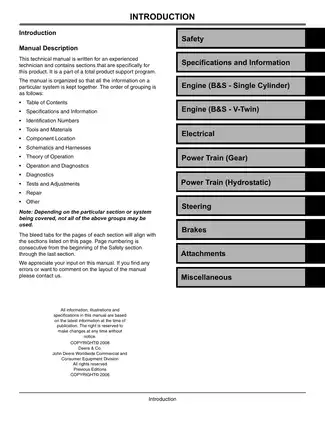

Included pages: The total includes the original cover (1 page), introduction (1 page), index entries (7 pages), and 20 blank or header-only pages. There are no separate supplements.

Text and navigation: Searchable text and embedded PDF bookmarks provide access to sections and individual procedures.

Diagram readability: Small wire codes and connector labels in the main wiring and PTO/RIO schematics require zooming for comfortable reading.
