2005 John Deere 100 Series Lawn Tractor Technical Manual (P/N TM2328)

Covers the 2005 John Deere 100 Series lawn tractors 102, 115, 125, 135, 145, 155C, and 190C. P/N TM2328 is the November 2005 North American technical manual; its single-cylinder engine specification table also lists the 105.

• Engine repair: Separate Briggs & Stratton single-cylinder and V-Twin sections cover engine removal and installation, cylinder-head service, piston inspection, and crankshaft and camshaft work.

• Fuel and lubrication: Carburetor overhaul, governor adjustments, crankcase vacuum and cylinder leakdown tests, plus V-Twin cylinder balance and oil-pressure checks.

• Electrical diagnosis: Color wiring schematics, harness layouts, diagnostic charts, and tests for starting, charging, ignition, electric PTO, and Reverse Implement Option (RIO) circuits.

• Power train: Gear transaxle disassembly and assembly, hydrostatic troubleshooting, neutral creep adjustment, transaxle bleeding, and dedicated K62V internal repair.

• Steering and brakes: Toe-in adjustment, steering-shaft and sector-gear service, front-axle work, and separate gear-drive and hydrostatic brake-linkage procedures.

• Mower decks: Deck troubleshooting and leveling, blade sharpening and balancing, belt replacement, spindle service, and deck-lift linkage repair.

Written for experienced technicians working with system-specific diagnostic and repair procedures.

Briggs & Stratton Engine and Fuel System Repair

Internal engine coverage extends to cylinder-bore inspection and honing, valve service, single-cylinder balance-system repair, and V-Twin oil-pump service. Component torque tables, wear limits, and reassembly illustrations accompany the procedures.

The fuel sections distinguish single- and two-barrel carburetors, with disassembly, inspection, and assembly instructions for the documented configurations. Tool tables identify the B&S 19203 flywheel tool and the equipment used for crankcase vacuum and cylinder leakdown testing.

Valve-clearance procedures account for automatic compression-release interference. The cylinder-head instructions also explain how uneven bolt tightening can warp the head.

Electrical Circuits and Fault Isolation

References include the Main Wiring Schematic 102/115/125/135, Cranking Circuit Electrical Schematic – All Models, and PTO with RIO Circuit Schematic – 145/155C/190C.

Connector locations, wire color codes, and diagnostic decision tables help trace starting and interlock faults through the wiring, switches, and components. Charging-system tests distinguish stator output, regulated voltage, and regulated amperage; separate checks address the electric PTO clutch and safety switches.

Gear and Hydrostatic Transaxles

Gear-drive coverage includes internal transaxle disassembly and assembly, shift-linkage adjustment, and traction-belt service. The Hydrostatic System Operation view explains the relationship between the pump, motor, reduction gears, and differential.

Repair limits: The manual specifies no internally serviceable components for the T40 and K46. The K62V internal repair chapter covers the center case, check valves, pump shaft, control shaft, brake components, and reassembly.

IDS diagnosis: The K46V Internal Dampening System discussion explains how test speed and oil temperature affect perceived hydrostatic performance, especially in reverse. This helps distinguish unsuitable test conditions from a transaxle fault requiring further diagnosis.

Steering, Brakes, and Mower Decks

Steering procedures cover front spindles, axle removal, and sector-gear linkages. Brake instructions distinguish external-disk gear-drive hardware from hydrostatic wet-disk operation, with parking-brake tests and linkage adjustments.

Mower coverage includes 42-, 48-, and 54-inch decks. The Spindle Cross Section – 54-Inch Deck view shows bearing and seal placement; separate procedures cover deck removal, blade balancing, and lift-linkage repair. Blade-brake and belt-tension adjustment procedures are identified for the 42-inch deck.

Review the documented safety precautions for fluid handling, battery servicing, hazardous material disposal, and work around rotating mower blades before service.

A Sample of Valve and Ignition Adjustment Data

These figures are a small selection of the engine adjustment data included in the manual.

For the 31F707 single-cylinder engine, cold intake-valve clearance is specified at 0.08–0.13 mm. Its magneto air-gap range is 0.25–0.35 mm; the V-Twin ignition-armature air gap is specified separately at 0.20–0.30 mm.

Text Search, Bookmarks, and Wiring Detail

Search and diagram navigation: The PDF has searchable text and embedded bookmarks for the main systems and individual procedures. Small wire codes and connector labels are best read with zoom.

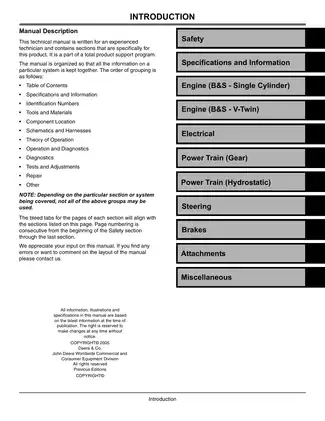

Supplied as one printable, English-language, 358-page PDF. That total includes four front-matter pages: the cover, introduction, and two blank pages.
