2007 Yamaha Z200Y / LZ200Y Outboard Service Manual Collection (P/N LIT-18616-02-10)

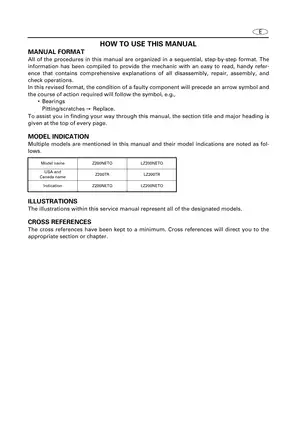

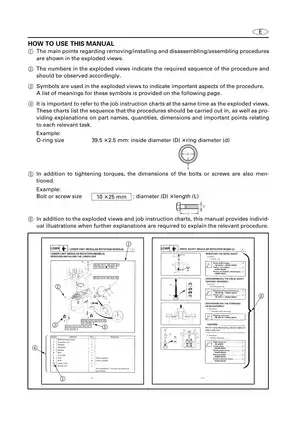

The Yamaha Z200Y/LZ200Y service manual, publication LIT-18616-02-10, covers Z200NETO and LZ200NETO engines, with U.S. model names Z200TR and LZ200TR. This collection pairs it with the Z-series supplementary manual and nine additional Yamaha outboard publications listed below.

• Scheduled service: Break-in and recurring maintenance charts, fuel-filter and anode inspections, spark-plug service, and control-cable adjustment.

• Fuel and oil injection: Vapor-separator and mechanical fuel-pump disassembly, injector-driver service, throttle synchronization, and oil-pump synchronization and bleeding.

• Power-unit repair: Power-unit removal and installation, cylinder-head inspection, crankcase disassembly, and piston, ring, and crankshaft checks.

• Lower-unit service: Water-pump and impeller replacement, propeller-shaft and drive-shaft work, gear shimming, and backlash checks for both rotation directions.

• Brackets and trim/tilt: Steering-arm and swivel-bracket service, trim-sensor adjustment, hydraulic pump and ram repair, and fluid bleeding.

• Electrical troubleshooting: Peak-voltage testing, sensor checks, starter and charging diagnosis, diagnostic-code charts, and electrical wiring diagrams.

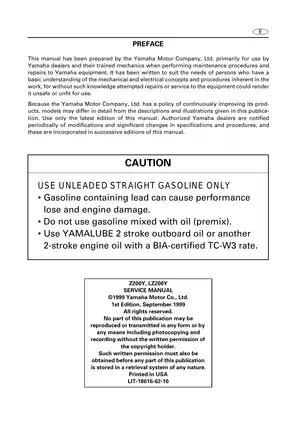

Yamaha wrote the service manuals primarily for dealers and trained mechanics with a basic understanding of mechanical and electrical service.

Fuel Injection and Power-Unit Repair

The Z200 sections distinguish the low-, medium-, and high-pressure fuel circuits. Procedures cover the vapor separator, electric fuel pump, mechanical pump, injector driver, and oil-injection components. Throttle-valve synchronization and crank-position sensor adjustment appear alongside the related checks and test equipment.

Internal repair coverage includes cylinder-head flatness, cylinder-bore wear, piston-to-cylinder clearance, piston-ring inspection, and crankshaft runout. Torque tables cover the cylinder head, flywheel magnet assembly, power-unit mounts, and other assemblies, including staged tightening where required.

A power-unit installation caution identifies possible shift-rod-lever damage from interference with the shift-position switch plate.

Gearcase, Steering, and Trim/Tilt Work

Separate regular- and counter-rotation sections cover the applicable pinion, forward-gear, reverse-gear, and propeller-shaft shimming procedures. Tool references include backlash indicator YB-06265, pinion-height gauges, and model-specific shimming fixtures.

Trim/tilt coverage extends to the reservoir, motor, tilt ram, gear pump, trim rams, and free piston. The lower-unit leak-test section warns that excessive test pressure can damage oil seals.

Fuel and hydraulic work require the manual’s precautions for trapped pressure. A raised outboard must also be securely supported during trim/tilt service.

Electrical Tests and Fault Isolation

For no-start, unstable-idle, and acceleration faults, the troubleshooting charts separate fuel-pressure, injector-driver, and ignition checks. Together with peak-voltage tests and sensor specifications, these charts help narrow the affected circuit before components are replaced.

The Z-series supplement describes Yamaha Diagnostic System fault records, engine monitoring, stationary and active tests, and data logging. These functions require separate compatible PC software and interface hardware.

Reference drawings include the Z200 wiring diagram and connector pin layouts, the Trouble Analysis Chart, and high-pressure direct-injection troubleshooting charts. The F150C/LF150C manual also supplies fuel and blowby-hose routing drawings.

Supplementary and Additional Model Coverage

The Z-series supplementary service manual must be used with the included Z200Y/LZ200Y base manual for complete service information. It adds other Z-series applications and revised procedures for the models identified in that publication.

The additional books include carbureted and EFI two-stroke service manuals, a separate F150C/LF150C four-stroke manual with timing-belt and valve-clearance procedures, and a Jetdrive operation and service booklet. Specifications and procedures remain specific to each model family.

General engine operation and servicing for Jetdrive applications rely on the corresponding outboard owner’s and service manuals.

Sample Fuel-System Checks and Gear-Oil Capacities

These Z200Y/LZ200Y figures are a small selection of the service data included in the collection.

The medium-pressure fuel-line specification is 280–360 kPa after the engine has idled for one minute. Throttle-position sensor output is 0.50 ± 0.02 V with the throttle valves fully closed.

Lower-unit gear-oil quantities differ by rotation: 980 cm³ for regular-rotation Z200 models and 870 cm³ for counter-rotation LZ200 models.

PDF Search, Bookmarks, and Publication Breakdown

Search and diagram detail: Text search is available in the Z200Y/LZ200Y manual, Z-series supplement, and the three C-series publications below. The U-, V-, W-, and X-series manuals and Jetdrive booklet are not searchable. Embedded bookmarks provide publication and chapter navigation. Small wiring labels in the checked diagrams require zooming.

One printable PDF contains 3,048 pages across these eleven publications:

Title and copyright pages, back covers, and wiring appendices are already included in these totals, as are the two blank pages in the Z-series supplement.
